GXV160 K1 A12 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) FAN COVER (2) Parts Diagram

Engine, Made in USA

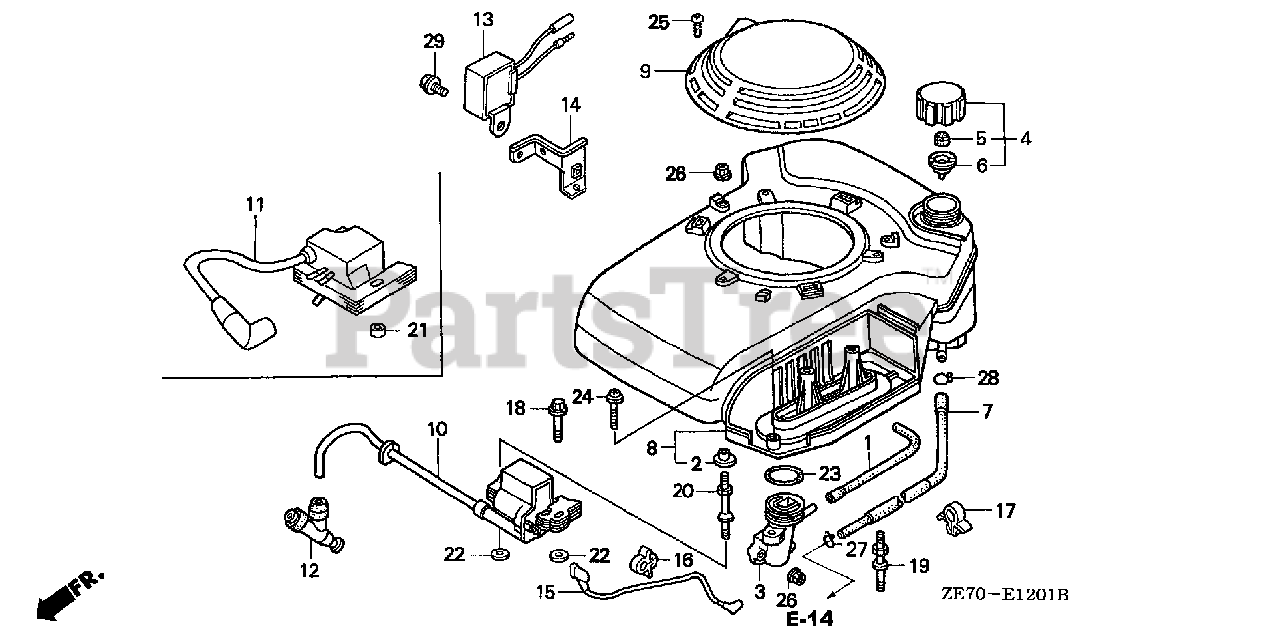

FAN COVER (2) Parts Diagram

  • Title

1

Honda 15721-ZE7-000

TUBE, BREATHER

$11.99

$

In Stock, only 2 left!

0

2

Honda 17216-PE2-003

COLLAR, AIR CLEANER (TOYO ROKI)

$8.99

$

Usually ships in 3-6 days

0

3

Honda 17410-ZE7-W00

ELBOW, AIR CLEANER

$32.99

$

In Stock, only 2 left!

0

4

Honda 17620-ZE7-000

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZG9-000)

$12.99

$

In Stock, only 1 left!

0

4

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$12.99

$

In Stock, only 1 left!

0

5

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

6

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZE7-W00

TUBE ASSY., FUEL TANK

$13.99

$

Usually ships in 3-6 days

0

8

Honda 19610-ZE7-W11ZA

COVER, FAN *NH1* (BRAKE) (BLACK)

$35.99

$

Usually ships in 3-6 days

0

8

Honda 19610-ZE7-W11ZC

COVER, FAN *R280* (BRAKE) (POWER RED)

$

$

Not available

9

Honda 19615-ZG9-801ZA

SEE PART DETAILS - PRI; HOOD, FAN COVER *NH1* (GRAINED FINISH) (BLACK)

$28.99

$

In Stock, only 1 left!

0

9

Honda 19615-ZG9-801ZE

HOOD, FAN COVER *R280* (GRAINED FINISH) (POWER RED)

$41.99

$

Usually ships in 3-6 days

0

11

Honda 30500-ZG9-801

COIL ASSY., IGNITION

$74.99

$

Usually ships in 3-6 days

0

16

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.49

$

In Stock, only 1 left!

0

17

Honda 46392-SC2-003

CLAMP, BRAKE PIPE (GRAY)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, only 3 left!

0

19

Honda 90041-ZE7-W10

BOLT, STUD (BRAKE)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 90042-ZE7-W00

BOLT, STUD (IGNITION COIL)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 90402-ZE7-W00

COLLAR, SPECIAL

$4.49

$

Usually ships in 3-6 days

0

23

Honda 91301-ZG9-800

O-RING (33.3X3.5)

$

$

Not available

24

Honda 93891-06035-10

SCREW-WASHER (6X35)

$1.49

$

In Stock, Qty 6

0

25

Honda 93913-24580

SCREW, TAPPING (4X20)

$0.99

$

In Stock, Qty 7

0

26

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

28

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 6149216.

$2.49

$

Usually ships in 3-6 days

0

28

Honda 95002-50000

CLIP, TUBE (C9)

Note: Use from Engine SN 6149217.

$1.99

$

In Stock, only 2 left!

0
