GXV160 H2 T1AH (GJAAH) - Honda Engine, Made in China (SN: GJAAH-1000001 - GJAAH-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in China

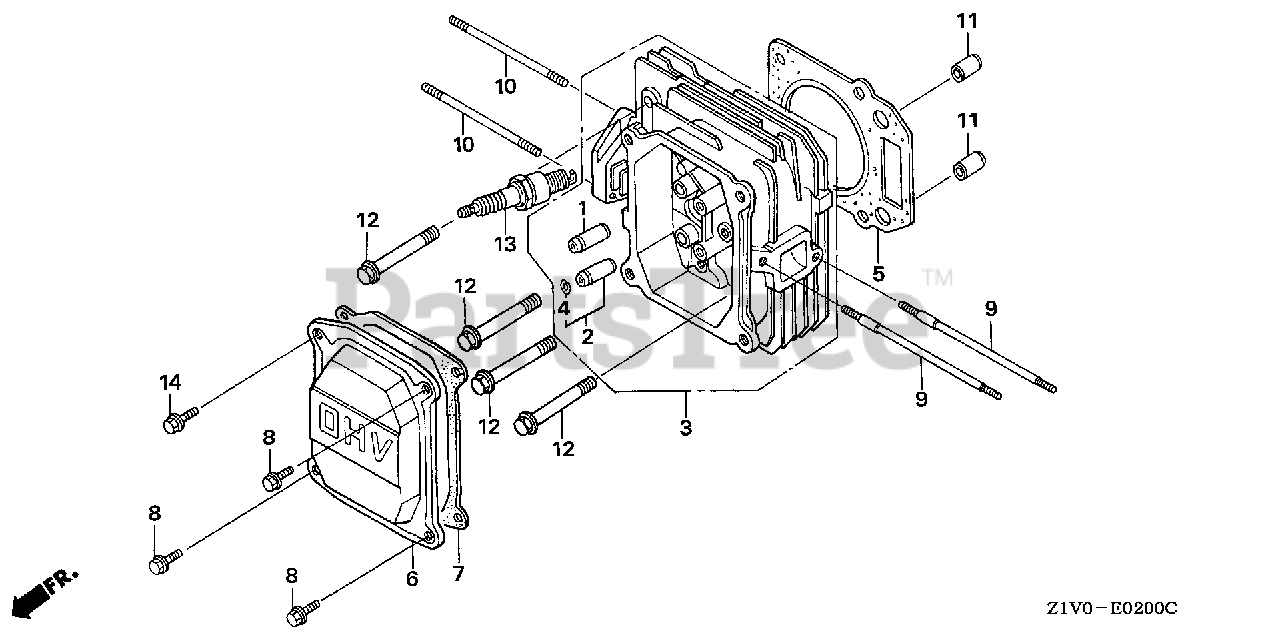

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

GUIDE, VALVE (OVER SIZE)

$

$

Not available

2

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

$10.99

$

In Stock, only 3 left!

0

3

Honda 12200-ZE7-405

CYLINDER HEAD

$205.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 18

0

5

Honda 12251-ZE7-000

GASKET, CYLINDER HEAD

$10.99

$

In Stock, only 1 left!

0

6

Honda 12311-ZG9-800

COVER, HEAD

$9.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZE7-M10

GASKET, HEAD COVER

$11.99

$

In Stock, Qty 9

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

9

Honda 90043-ZE6-000

BOLT, STUD (6X109)

$7.49

$

In Stock, only 2 left!

0

10

Honda 90048-ZC3-000

BOLT, STUD (6X85)

$4.49

$

In Stock, only 3 left!

0

11

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

12

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

13

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

Note: (Optional).

$3.49

$

In Stock, only 1 left!

0

13

Honda 98079-54855

SPARK PLUG (W14EPR-U) (DENSO)

Note: (Optional).

$3.99

$

In Stock, only 3 left!

0

13

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

13

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

Note: (Optional).

$3.49

$

In Stock, Qty 20+

0

13

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

Note: (Optional).

$3.99

$

In Stock, Qty 11

0

14

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 3 left!

0
