GXV160 A1L2 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) RECOIL STARTER (1) Parts Diagram
Engine, Made in Japan

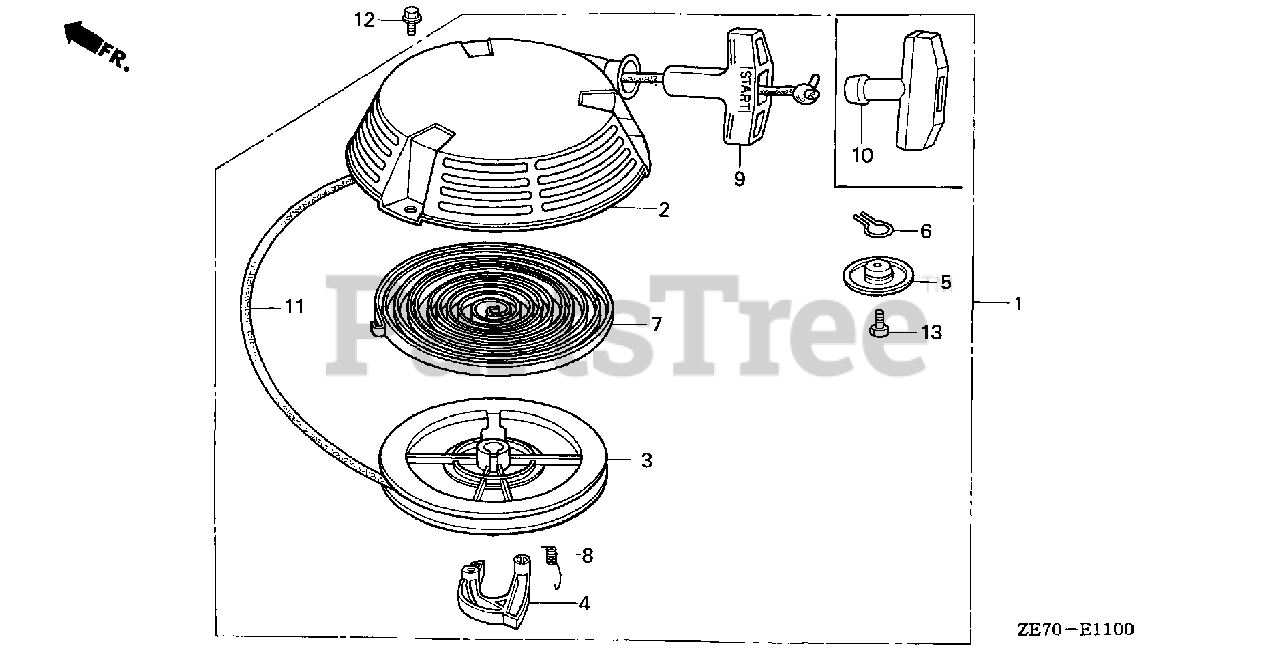

RECOIL STARTER (1) Parts Diagram
Honda 28400-ZE7-V11ZC
SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (LONG ROPE) (POWER RED)
$
$
Not available
Honda 28410-ZE7-003ZA
SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZE7-003ZD)
$
$
Not available
Honda 28420-ZE7-003
PULLEY, RECOIL STARTER
$
$
Not available
Honda 28422-896-010
RATCHET, STARTER
$7.99
$
In Stock, only 1 left!
Honda 28431-896-000
PLATE, FRICTION
$6.49
$
Usually ships in 3-6 days
Honda 28441-896-000
SPRING, FRICTION
$8.49
$
Usually ships in 3-6 days
Honda 28442-896-700
SPRING, RECOIL STARTER
$33.99
$
Usually ships in 3-6 days
Honda 28443-896-000
SPRING, RETURN
$4.99
$
Usually ships in 3-6 days
$8.49
$
In Stock, Qty 5
Honda 28462-ZG9-T42
SEE PART DETAILS - PRI; ROPE (#4X91")
$4.99
$
Usually ships in 3-6 days
Honda 95701-06008-00
BOLT, FLANGE (6X8)
$3.49
$
In Stock, only 2 left!
Honda 92101-06012-0H
BOLT, HEX. (6X12)
$1.99
$
Usually ships in 3-6 days
