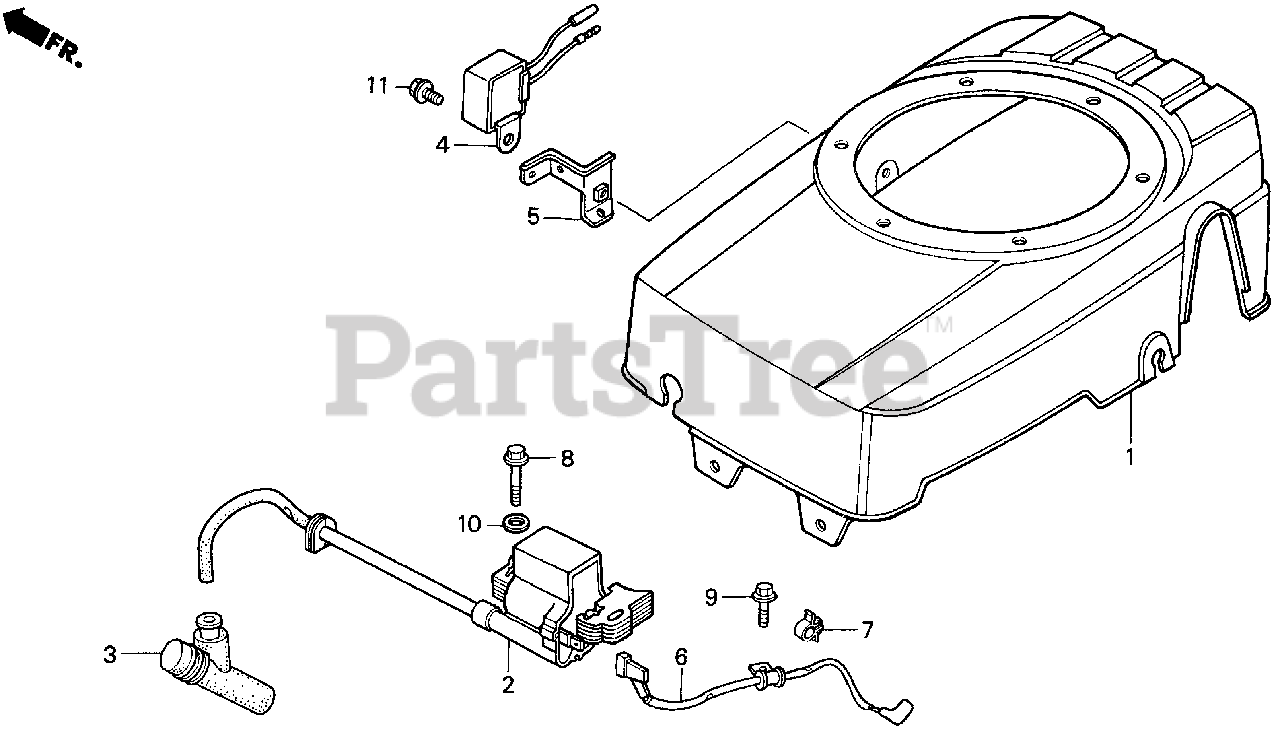

Honda GXV160 A1L2 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) FAN COVER Parts Lookup with Diagrams

1

Honda 19610-ZE7-010ZA

COVER, FAN *R8* (BRIGHT RED)

Note: (Honda Code 4060067).

$

Currently unavailable 

2

Honda 30500-ZE7-033

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

(Superseded to 30500-ZE7-063) 

Note: (Honda Code 4572293).

$91.99

$

In Stock, only 1 left!

3

Honda 30700-ZE6-023

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3808649).

$24.99

$

Usually ships in 3-6 days

6

Honda 36101-ZE7-811

WIRE, STOP SWITCH (BRAKE)

Note: (Honda Code 4508172).

$

Not available 

7

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: Use up to Engine SN 1352352. (Honda Code 1429141).

$2.49

$

In Stock, only 1 left!

7

Honda 90654-SA4-003

CLIP, WIRE HARNESS (6MM) (WHITE)

Note: Use from Engine SN 1352353. (Honda Code 1640424).

$0.99

$

In Stock, Qty 8

8

Honda 90121-952-000

BOLT, FLANGE (6X25)

Note: (Honda Code 0748111).

$2.99

$

In Stock, Qty 20+

9

Honda 90019-883-000

BOLT, FLANGE (5X10)

Note: Use up to Engine SN 1351851. (Honda Code 0636878).

$3.49

$
