GXV160 A12 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) MUFFLER Parts Diagram

Engine, Made in Japan

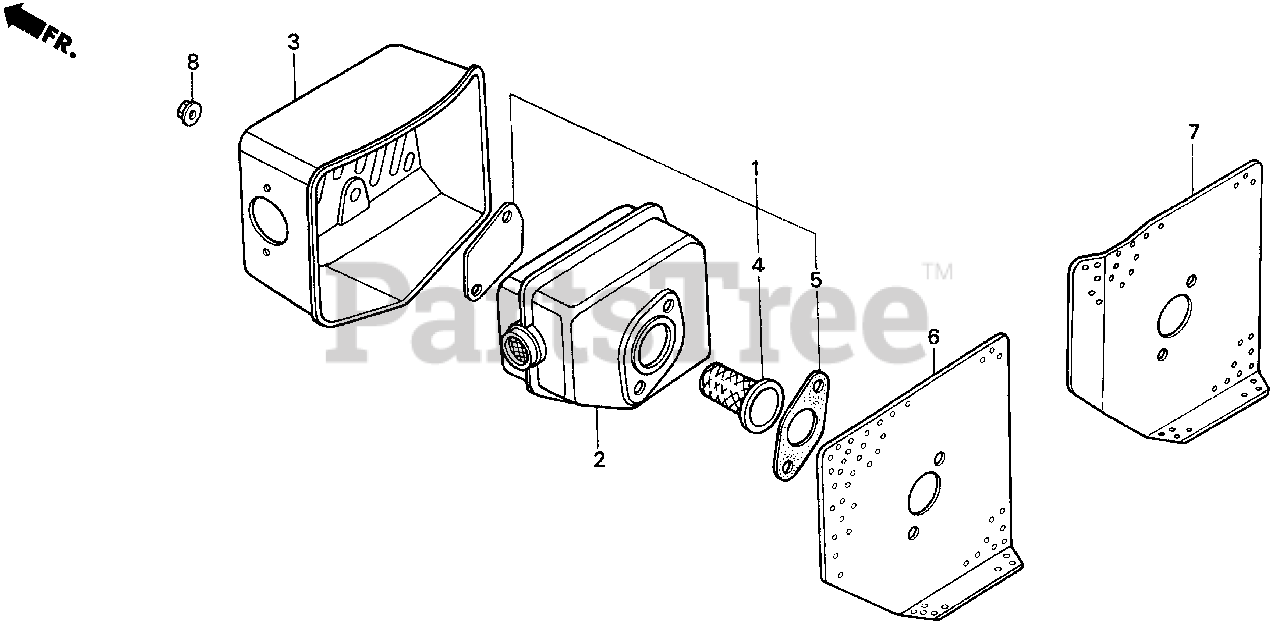

MUFFLER Parts Diagram

  • Title

1

Honda 06180-ZE6-810

SEE PART DETAILS - PRI; ARRESTER KIT, SPARK

Note: (Optional). (Honda Code 1662550).

$

$

Currently unavailable

1

Honda 06180-ZE6-820

ARRESTER KIT, SPARK

Note: (Optional). (Honda Code 4165866).

$29.99

$

In Stock, only 1 left!

0

2

Honda 18310-ZE7-013

SEE PART DETAILS - PRI; MUFFLER

Note: (Honda Code 3132032).

$71.99

$

In Stock, only 1 left!

0

3

Honda 18320-ZE7-013

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

Note: (Honda Code 2538486).

$

$

Not available

4

Honda 06180-888-505

SEE PART DETAILS - PRI; ARRESTER KIT, SPARK

Note: (Optional). (Honda Code 4562245).

$19.99

$

Usually ships in 3-6 days

0

4

Honda 06180-888-810

SEE PART DETAILS - SUP; ARRESTER KIT, SPARK

Note: (Optional). (Honda Code 0703082).

$

$

Currently unavailable

5

Honda 18381-ZE6-810

SEE PART DETAILS - SUP; GASKET, MUFFLER

Note: (Optional). (Honda Code 1662568).

$

$

Currently unavailable

5

Honda 18381-ZE6-820

SEE PART DETAILS - PRI; GASKET, MUFFLER

Note: (Optional). (Honda Code 4165932).

$4.99

$

In Stock, Qty 7

0

7

Honda 18381-ZE7-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

Note: (Honda Code 4297461).

$20.99

$

Usually ships in 3-6 days

0

8

Honda 90343-ZE6-000

NUT, SELF-LOCK (6MM)

Note: (Honda Code 1662576).

$2.49

$

In Stock, Qty 20+

0
