GXV160 A12 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) FUEL TANK Parts Diagram

Engine, Made in Japan

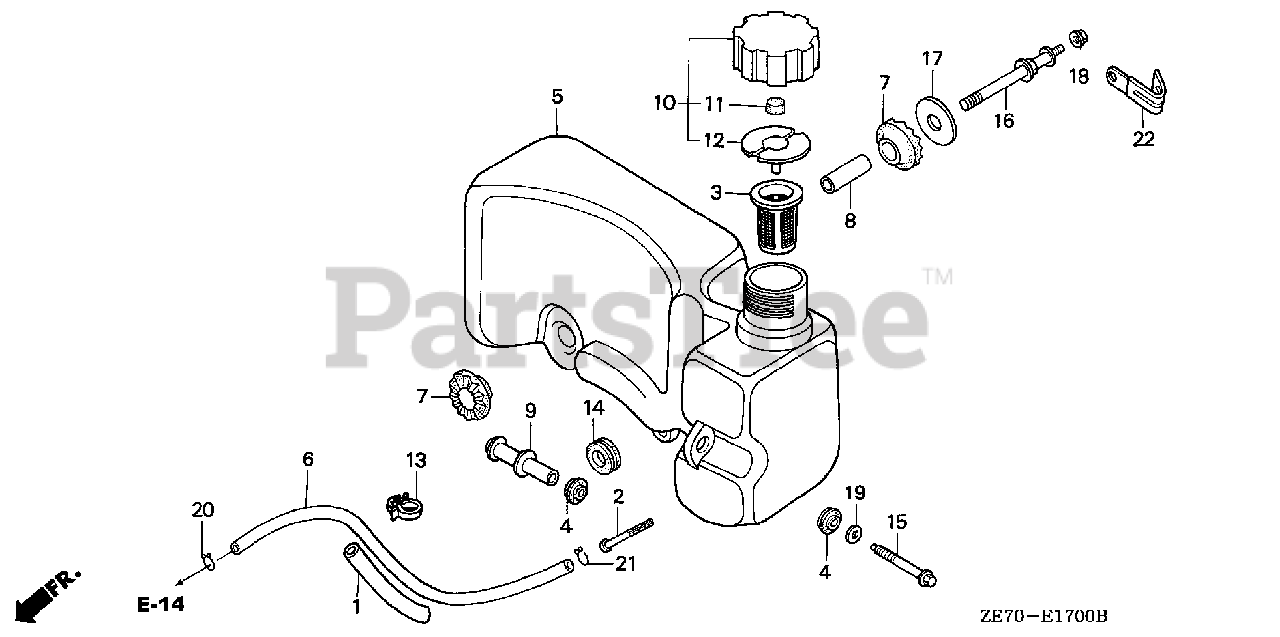

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 5

0

2

Honda 16952-ZA8-800

FILTER, FUEL

$8.99

$

In Stock, only 3 left!

0

4

Honda 17506-ZE7-000

RUBBER, TANK SETTING

$4.49

$

In Stock, only 2 left!

0

5

Honda 17510-ZE7-020

SEE PART DETAILS - PRI; TANK, FUEL

$

$

Not available

6

Honda 17512-ZE7-000

SEE PART DETAILS - SUP; TUBE, FUEL
(Superseded to 17512-ZE7-010)

$13.99

$

Usually ships in 3-6 days

0

7

Honda 17516-896-700

RUBBER B, TANK MOUNTING

$8.99

$

In Stock, Qty 12

0

8

Honda 17518-ZE7-000

COLLAR, TANK SETTING

$

$

Not available

9

Honda 17519-ZE7-000

COLLAR, TANK

$

$

Not available

10

Honda 17620-ZE7-000

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZG9-000)

$12.99

$

In Stock, only 1 left!

0

10

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$12.99

$

In Stock, only 1 left!

0

11

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

12

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$4.99

$

Usually ships in 3-6 days

0

13

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

14

Honda 80103-MG2-000

CUSHION, RR. FENDER

$4.49

$

In Stock, only 2 left!

0

15

Honda 90014-888-000

BOLT, FLANGE (6X50)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 90016-ZE7-000

BOLT, TANK STAY

$13.99

$

Usually ships in 3-6 days

0

17

Honda 90455-896-700

WASHER, TANK MOUNTING

$3.99

$

In Stock, only 2 left!

0

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 10

0

21

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 9
