GXV160 A12 (GJ03) - Honda Engine, Made in Japan (SN: GJ03-1000001 - GJ03-1366578) FLYWHEEL (2) Parts Diagram

Engine, Made in Japan

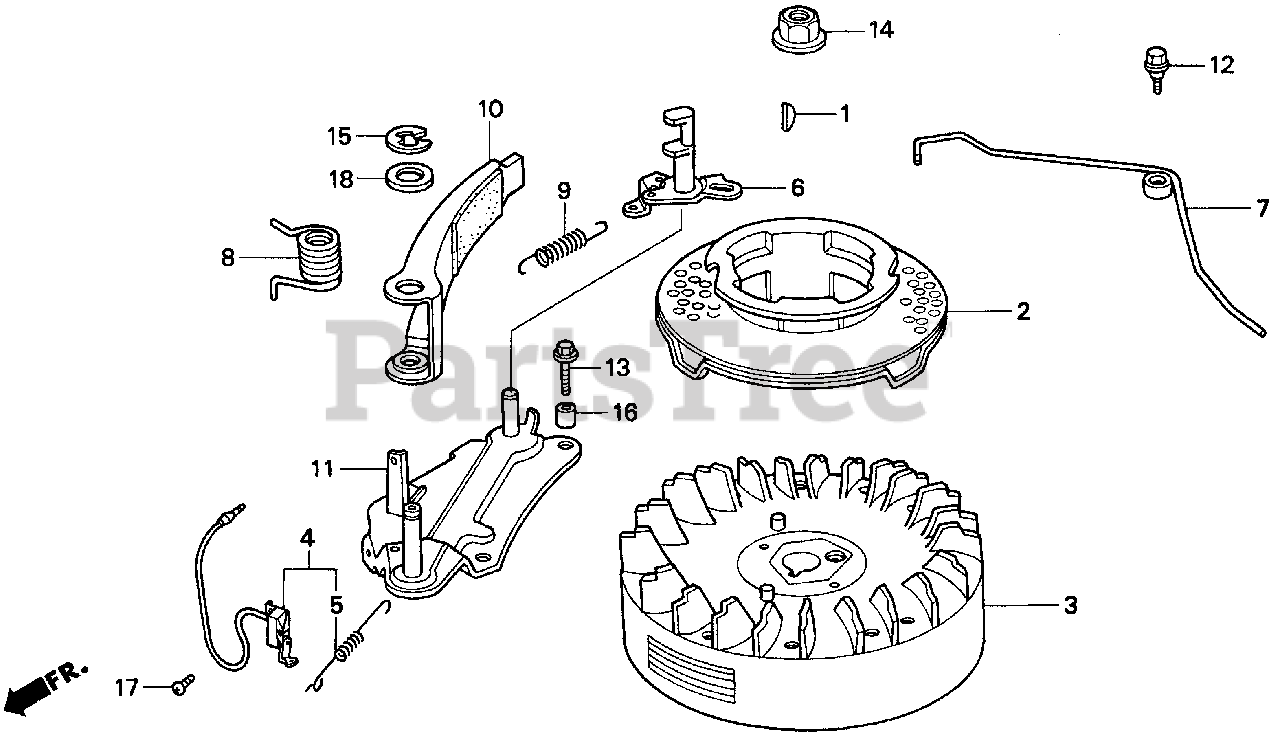

FLYWHEEL (2) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: (Honda Code 0348433).

$4.99

$

In Stock, Qty 7

0

2

Honda 28451-ZE7-003

PULLEY, STARTER

Note: (Honda Code 2289981).

$

$

Not available

3

Honda 31100-ZE7-811

SEE PART DETAILS - PRI; FLYWHEEL (BAND BRAKE)

Note: (Honda Code 2310480).

$

$

Not available

4

Honda 36100-ZE7-811

SWITCH ASSY., ENGINE STOP

Note: (Honda Code 4060091).

$

$

Not available

5

Honda 36121-ZE6-000

SPRING, SWITCH CONTROL

Note: (Honda Code 1735851).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 43140-ZE7-000

CAM, BRAKE

Note: (Honda Code 2290757).

$35.99

$

Usually ships in 3-6 days

0

7

Honda 43145-ZE7-003

SEE PART DETAILS - PRI; ROD, THROTTLE RETURN
(Superseded to 43145-Z1V-003)

Note: (Honda Code 2310548).

$6.49

$

Usually ships in 3-6 days

0

8

Honda 75112-ZE6-000

SPRING, BRAKE

Note: (Honda Code 1735877).

$12.99

$

Usually ships in 3-6 days

0

9

Honda 75113-ZE6-000

SPRING, BRAKE RETURN

Note: (Honda Code 1732056).

$4.49

$

In Stock, Qty 16

0

10

Honda 75120-ZE6-013

BRAKE

Note: (Honda Code 3431871).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 75130-ZE7-000

BASE, BRAKE
(Superseded to 75130-ZE7-010)

Note: (Honda Code 2291045).

$48.99

$

Usually ships in 3-6 days

0

12

Honda 90015-ZE6-000

BOLT, FLANGE (6MM)

Note: (Honda Code 1688084).

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90018-ZE1-000

BOLT, FLANGE (6X23)

Note: (Honda Code 1725050).

$2.49

$

In Stock, only 2 left!

0

14

Honda 90201-878-003

NUT, SPECIAL (14MM)

Note: (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0

15

Honda 90653-723-000

E-RING (10MM) (NOT AVAILABLE)

Note: (Honda Code 0454074).

$1.99

$

In Stock, only 2 left!

0

16

Honda 90702-ZE6-000

PIN, DOWEL (8X9)

Note: (Honda Code 1735885).

$2.99

$

Usually ships in 3-6 days

0

17

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8)

Note: (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

18

Honda 94102-12800

WASHER, FLAT (12MM)

Note: (Honda Code 1018340).

$

$

Not available
