GXV140 N1GE (GJAB) - Honda Engine, Made in USA (SN: GJAB-6000001 - GJAB-7999999) FAN COVER Parts Diagram

Engine, Made in USA

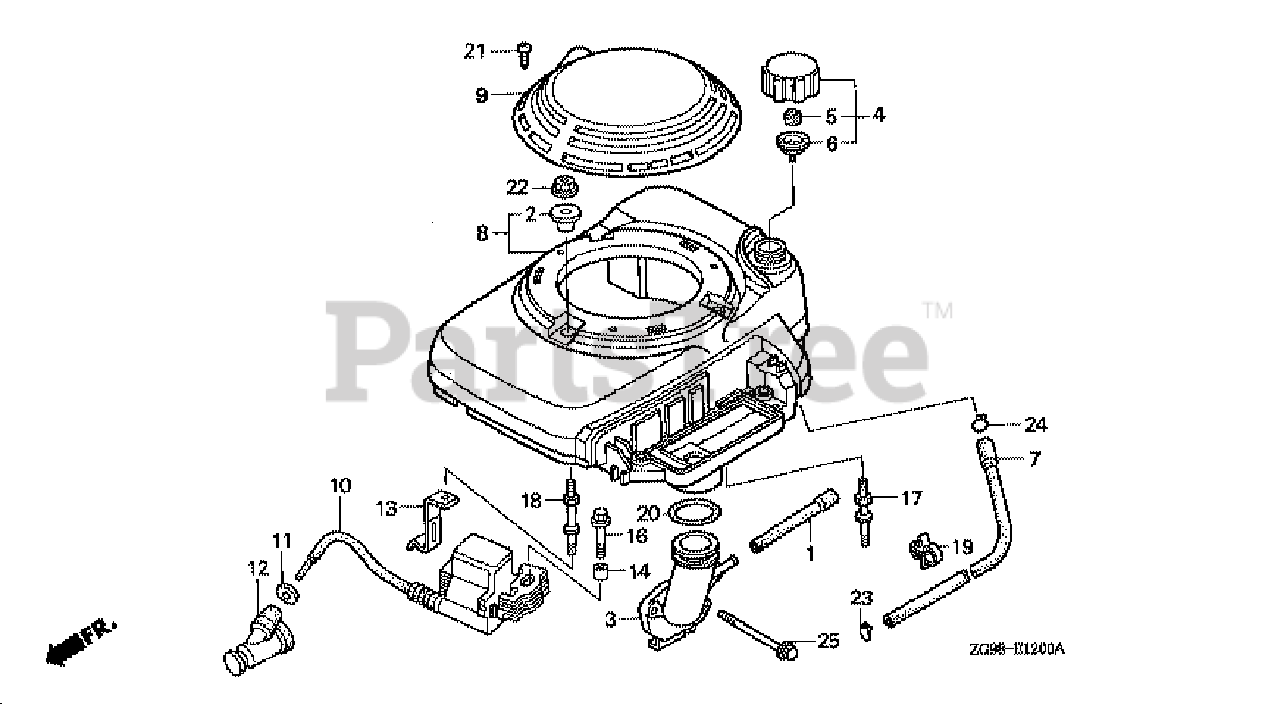

FAN COVER Parts Diagram

  • Title

1

Honda 15721-ZE6-010

TUBE, BREATHER

Note: (Honda Code 2580033).

$

$

Not available

2

Honda 17216-PE2-003

COLLAR, AIR CLEANER

Note: (Honda Code 2029346).

$8.99

$

Usually ships in 3-6 days

0

3

Honda 17410-ZG9-800

ELBOW, AIR CLEANER

Note: (Honda Code 4452488).

$

$

Not available

4

Honda 17620-ZG9-000

CAP ASSY., FUEL TANK

Note: (Honda Code 3307378).

$12.99

$

In Stock, only 1 left!

0

5

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

Note: (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

6

Honda 17624-ZE7-000

GASKET, FUEL CAP

Note: (Honda Code 2507689).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17701-ZG9-800

TUBE, FUEL TANK

Note: (Honda Code 4469722).

$

$

Not available

8

Honda 19610-ZG9-801ZA

COVER, FAN *NH1* (BLACK)

Note: (Honda Code 6188502).

$

$

Currently unavailable

9

Honda 19615-ZG9-800ZA

HOOD, FAN COVER *NH1* (TEXTURED) (BLACK)
(Superseded to 19615-ZG9-801ZA)

Note: (Honda Code 4536967).

$28.99

$

In Stock, only 1 left!

0

10

Honda 30500-ZG9-M02

COIL ASSY., IGNITION

Note: (Honda Code 4581476).

$

$

Currently unavailable

11

Honda 30505-ZE6-000

GROMMET, IGNITION WIRE

Note: (Honda Code 2108256).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 30700-ZE6-023

CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3808649).

$24.99

$

Usually ships in 3-6 days

0

16

Honda 90121-952-000

BOLT, FLANGE (6X25)

Note: (Honda Code 0748111).

$2.99

$

In Stock, Qty 20+

0

17

Honda 90041-ZG9-M00

BOLT A, STUD

Note: (Honda Code 4010153).

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90042-ZG9-M00

BOLT B, STUD

Note: (Honda Code 4010161).

$

$

Not available

19

Honda 90682-959-661

CLIP B, CABLE

Note: (Honda Code 1064021).

$3.99

$

In Stock, only 2 left!

0

20

Honda 91301-ZG9-800

O-RING (33.3X3.5)

Note: (Honda Code 4429056).

$

$

Not available

21

Honda 93913-24580

SCREW, TAPPING (4X20)

Note: (Honda Code 4311718).

$0.99

$

In Stock, Qty 7

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

23

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

24

Honda 95002-02100

CLIP, TUBE (B10)

Note: (Honda Code 0250985).

$2.49

$

In Stock, Qty 20+

0

25

Honda 95801-06100-00

BOLT, FLANGE (6X100)

Note: (Honda Code 2533883).

$2.49

$

Usually ships in 3-6 days

0
