GXV140 MAC (GJAB) - Honda Engine, Made in USA (SN: GJAB-6000001 - GJAB-7999999) CYLINDER HEAD Parts Diagram

Engine, Made in USA

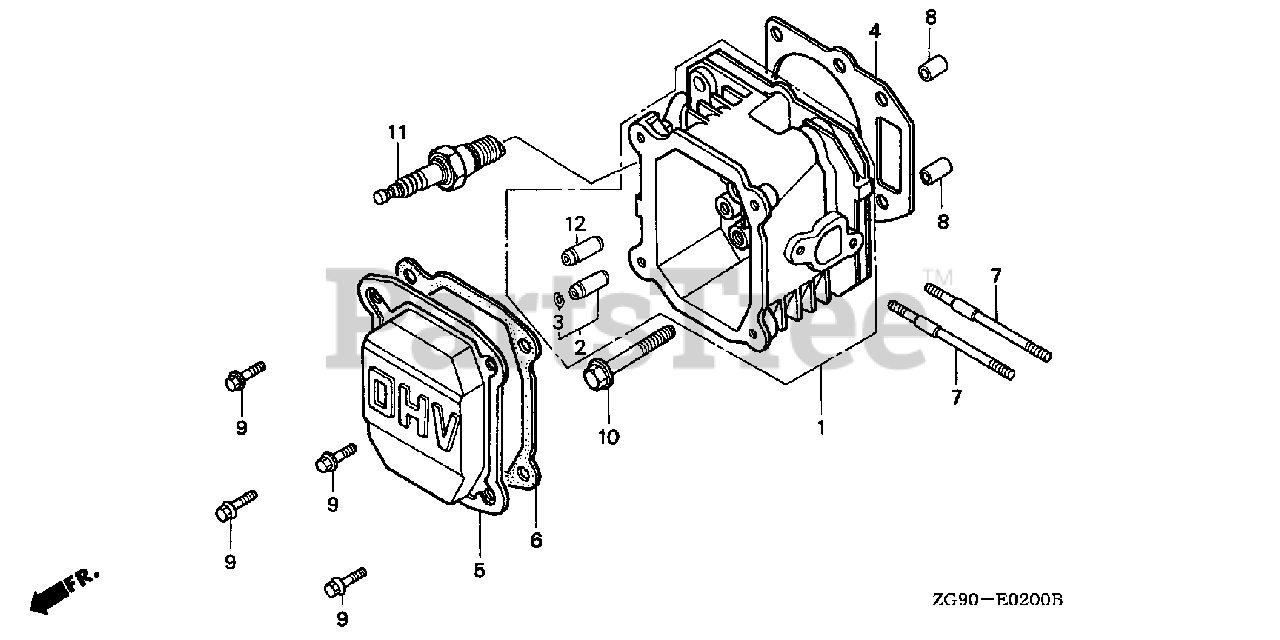

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZG9-P41

SEE PART DETAILS - PRI; CYLINDER HEAD (USA)

Note: Use from Engine SN 6324986.

$82.99

$

Usually ships in 3-6 days

0

1

Honda 12200-ZG9-P41

SEE PART DETAILS - PRI; CYLINDER HEAD (USA)

Note: Use up to Engine SN 6324985.

$82.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

$10.99

$

In Stock, only 3 left!

0

3

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 18

0

4

Honda 12251-ZG9-000

GASKET, CYLINDER HEAD

$24.99

$

In Stock, only 1 left!

0

5

Honda 12311-ZG9-800

COVER, HEAD

$9.99

$

In Stock, only 2 left!

0

6

Honda 12391-ZG9-800

GASKET, HEAD COVER

$5.99

$

In Stock, only 1 left!

0

8

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

9

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 5

0

10

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

11

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

11

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

12

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) Use from Engine SN 6324986.

$

$

Not available
