GXV140 A2C (GJAB) - Honda Engine, Made in USA (SN: GJAB-6000001 - GJAB-7999999) MUFFLER Parts Diagram

Engine, Made in USA

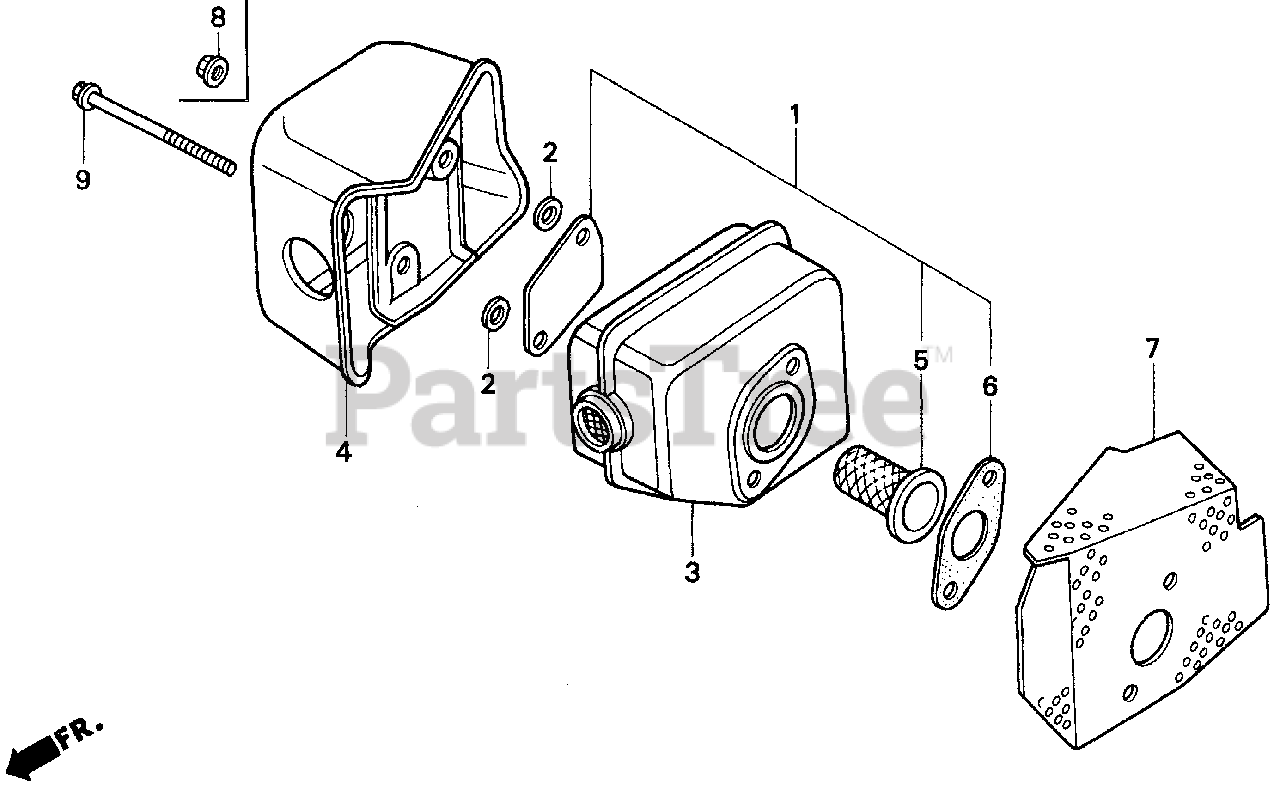

MUFFLER Parts Diagram

  • Title

1

Honda 06180-ZE6-820

ARRESTER KIT, SPARK

Note: (Honda Code 4165866).

$29.99

$

In Stock, only 1 left!

0

2

Honda 18292-ZE7-M10

GASKET, PROTECTOR

Note: (Honda Code 5523477).

$3.49

$

Usually ships in 3-6 days

0

3

Honda 18310-ZG9-J01

MUFFLER

Note: Use from Engine SN 6839527. (Honda Code 4060844).

$71.99

$

In Stock, only 1 left!

0

3

Honda 18310-ZG9-M11

MUFFLER (FINLAND)
(Superseded to 18310-ZE7-W40)

Note: Use up to Engine SN 6839526. (Honda Code 4193843).

$71.99

$

In Stock, only 1 left!

0

4

Honda 18320-ZG9-M11

PROTECTOR, MUFFLER

Note: (Honda Code 4193850).

$37.99

$

Usually ships in 3-6 days

0

5

Honda 06180-888-505

ARRESTER KIT, SPARK

Note: (Optional). (Honda Code 4562245).

$19.99

$

Usually ships in 3-6 days

0

5

Honda 06180-888-810

ARRESTER KIT, SPARK

Note: (Optional). (Honda Code 0703082).

$

$

Currently unavailable

6

Honda 18381-ZE6-820

GASKET, MUFFLER

Note: (Honda Code 4165932).

$4.99

$

In Stock, Qty 7

0

7

Honda 18381-ZG9-M00

GASKET, MUFFLER

Note: (Honda Code 4010120).

$5.99

$

In Stock, Qty 5

0

8

Honda 90308-SA0-981

NUT, SELF-LOCK (6MM)

Note: (Honda Code 1476738).

$8.49

$

Usually ships in 3-6 days

0

10

Honda 18435-ZE7-W40

GUARD, MUFFLER

Note: Use from Engine SN 6839527. (Honda Code 4895397).

$56.99

$

Usually ships in 3-6 days

0

11

Honda 94101-06000

WASHER, PLAIN (6MM)

Note: Use from Engine SN 6839527. (Honda Code 0059071).

$

$

Currently unavailable

11

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: Use from Engine SN 6839527. (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0
