GXV140 A2C (GJAB) - Honda Engine, Made in USA (SN: GJAB-6000001 - GJAB-7999999) CARBURETOR (1) Parts Diagram

Engine, Made in USA

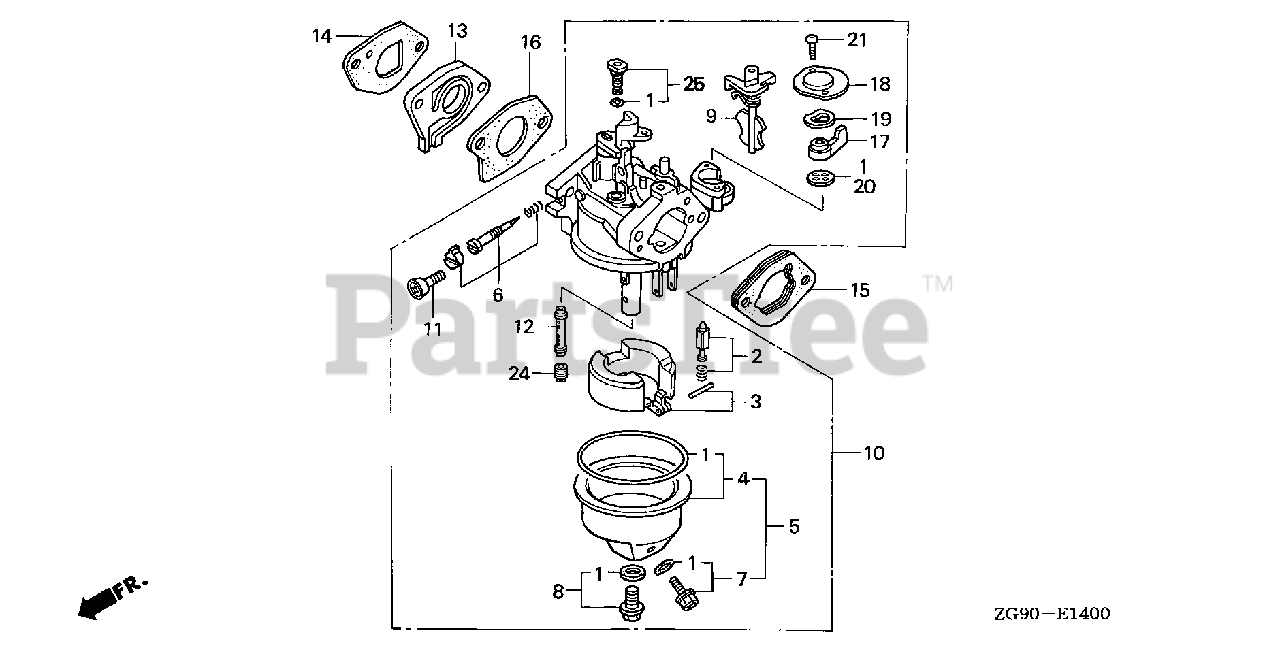

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

Note: Use from Engine SN BE53A D.

$19.99

$

In Stock, Qty 6

0

1

Honda 16010-ZG9-800

GASKET SET (CARBURETOR NO.)

Note: Use up to Engine SN BE53A C.

$20.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.)

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZE0-005

FLOAT SET (CARBURETOR NO.)

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use up to Engine SN BE53A A.

$37.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZG9-800

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BE53A B to BE53A C.

$

$

Not available

5

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BE53A D.

$37.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZH7-W01

SCREW SET, PILOT (CARBURETOR NO.)

$20.99

$

In Stock, only 3 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

Note: Use from Engine SN BE53A D.

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET (CARBURETOR NO.)
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

9

Honda 16045-ZE7-005

CHOKE SET (CARBURETOR NO.)

$33.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZG9-802

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE53A C)

$

$

Currently unavailable

10

Honda 16100-ZG9-803

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE53A D)

$103.99

$

Usually ships in 3-6 days

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (CARBURETOR NO.)

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZG9-801

SEE PART DETAILS - PRI; NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BE53A A.

$

$

Not available

13

Honda 16211-ZG9-000

INSULATOR, CARBURETOR

$10.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZG9-T00

GASKET, CARBURETOR

$5.49

$

In Stock, only 2 left!

0

15

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, only 1 left!

0

16

Honda 16221-ZG9-J60

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZG9-T00

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16953-ZE1-812

LEVER, PETCOCK (CARBURETOR NO.)

$10.99

$

In Stock, Qty 10

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK (CARBURETOR NO.)

$4.49

$

In Stock, Qty 7

0

21

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 5

0

24

Honda 99101-ZH7-0550

JET, MAIN (#55) Use up to Engine SN BE53A A.

$

$

Not available

24

Honda 99101-ZH7-0580

JET, MAIN (#58) Use up to Engine SN BE53A A.

$

$

Currently unavailable

24

Honda 99101-ZH7-0600

JET, MAIN (#60) (CARBURETOR NO.)

Note: Use up to Engine SN BE53A A.

$8.99

$

Usually ships in 3-6 days

0

24

Honda 99101-ZH8-0520

JET, MAIN (#52) Use from Engine SN BE53A B.

$9.49

$

In Stock, only 1 left!

0

24

Honda 99101-ZH8-0550

JET, MAIN (#55) Use from Engine SN BE53A B.

$9.49

$

Usually ships in 3-6 days

0

24

Honda 99101-ZH8-0580

SEE PART DETAILS - SUP; JET, MAIN (#58) (CARBURETOR NO.)

Note: Use from Engine SN BE53A B.

$

$

Currently unavailable

24

Honda 99101-ZK7-0580

SEE PART DETAILS - PRI; JET, MAIN (#58)

Note: Use from Engine SN BE53A B.

$8.99

$

Usually ships in 3-6 days

0

25

Honda 99204-ZE2-0380

JET SET, PILOT (#38) (CARBURETOR NO.)

Note: Use from Engine SN BE53A B.

$22.99

$

Usually ships in 3-6 days

0

25

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (CARBURETOR NO.)

Note: Use up to Engine SN BE53A A.

$22.99

$

In Stock, Qty 5
