GXV140 A2C (GJAB) - Honda Engine, Made in USA (SN: GJAB-6000001 - GJAB-7999999) CAMSHAFT Parts Diagram

Engine, Made in USA

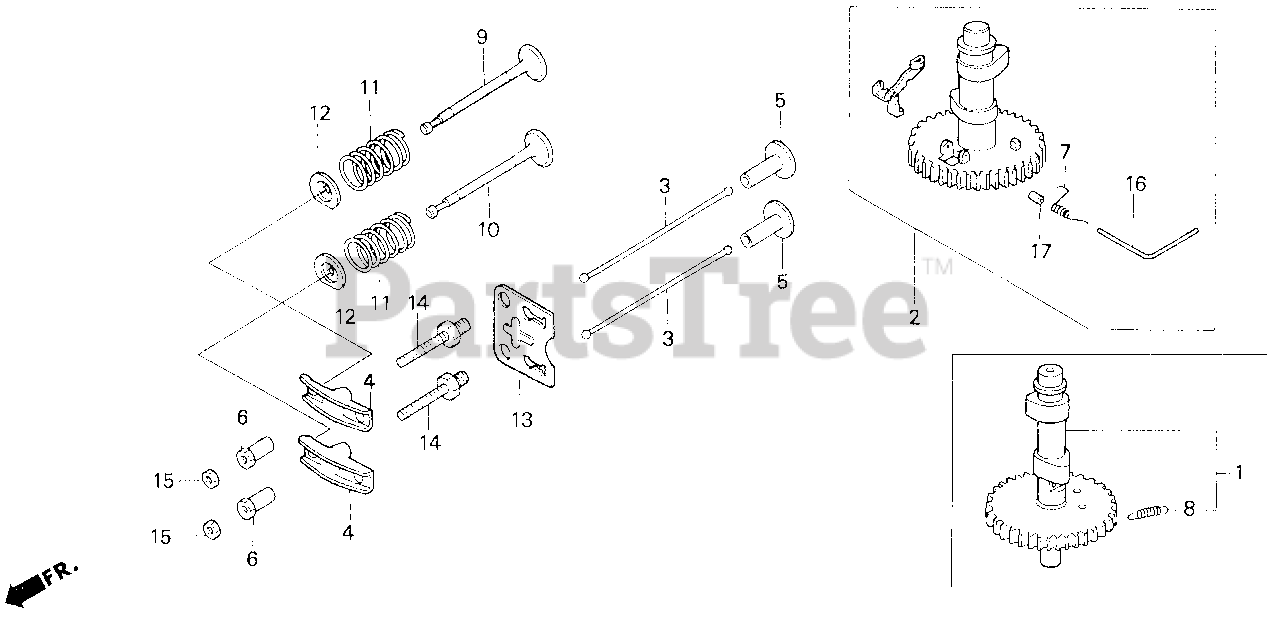

CAMSHAFT Parts Diagram

  • Title
2

Honda 14100-ZG9-800

CAMSHAFT ASSY.

Note: (Honda Code 4327334).

$

$

Not available

3

Honda 14410-ZE0-010

ROD, PUSH

Note: (Honda Code 3337854).

$8.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER

Note: (Honda Code 1426824).

$7.99

$

In Stock, only 2 left!

0

5

Honda 14441-ZE1-000

LIFTER, VALVE
(Superseded to 14441-ZE1-010)

Note: (Honda Code 1426832).

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14441-ZE1-010

LIFTER, VALVE

Note: (Honda Code 5181383).

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

Note: (Honda Code 4300901).

$5.99

$

In Stock, Qty 5

0

8

Honda 14568-ZG9-800

SPRING, WEIGHT RETURN

Note: (Honda Code 4327342).

$1.99

$

Usually ships in 3-6 days

0

9

Honda 14711-ZG9-810

VALVE, IN.

Note: (Honda Code 4799342).

$

$

Not available

10

Honda 14721-ZG9-801

VALVE, EX.
(Superseded to 14721-ZG9-810)

Note: (Honda Code 4428462).

$37.99

$

Usually ships in 3-6 days

0

10

Honda 14721-ZG9-810

VALVE, EX.

Note: (Honda Code 4799359).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 14751-ZF1-000

SPRING, VALVE

Note: (Honda Code 3683489).

$4.99

$

In Stock, only 2 left!

0

12

Honda 14771-ZE1-T01

RETAINER, VALVE SPRING

Note: (Honda Code 4544284).

$

$

Currently unavailable

12

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

Note: (Honda Code 1426980).

$1.49

$

In Stock, Qty 14

0

13

Honda 14791-ZE0-010

PLATE, PUSH ROD GUIDE

Note: (Honda Code 1929769).

$4.49

$

In Stock, only 2 left!

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

Note: (Honda Code 1756964).

$8.49

$

In Stock, only 2 left!

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJ.

Note: (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0

16

Honda 90701-ZG9-800

PIN, WEIGHT CENTER

Note: (Honda Code 4327557).

$1.99

$

Usually ships in 3-6 days

0

17

Honda 91502-ZG9-800

COLLAR, WEIGHT CENTER

Note: (Honda Code 4452355).

$1.99

$

Usually ships in 3-6 days

0
