GXV120 N2CA (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) CONTROL Parts Diagram

Engine, Made in Japan

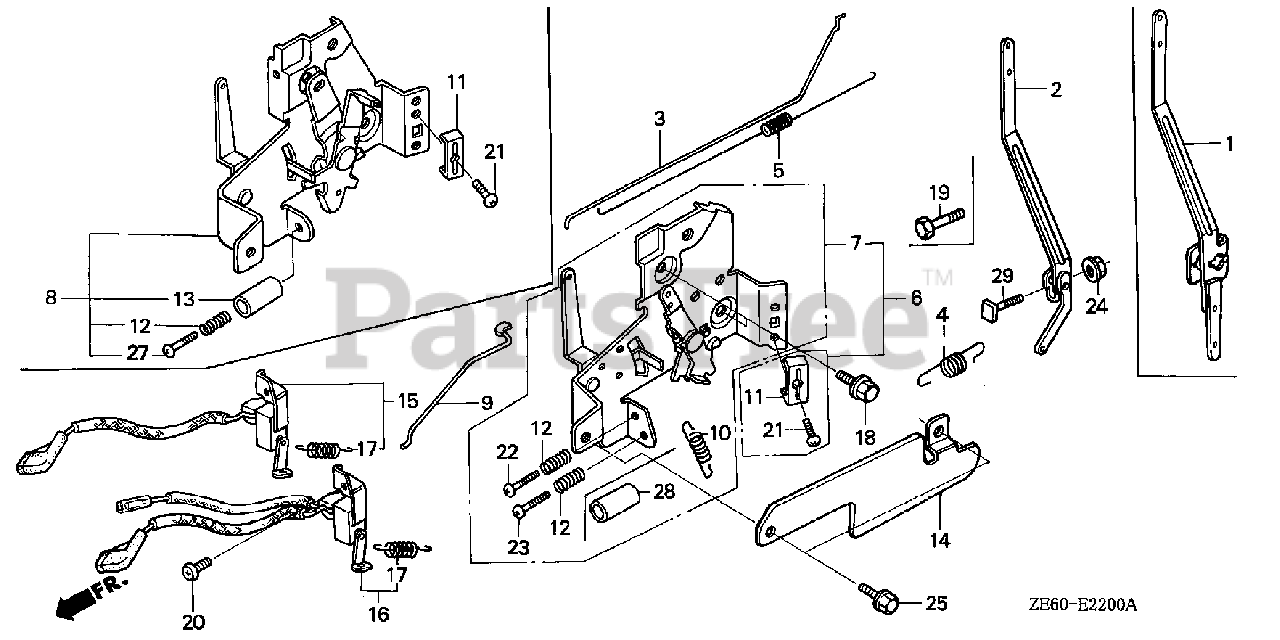

CONTROL Parts Diagram

  • Title

1

Honda 16551-ZE6-U40

ARM, GOVERNOR (C,G)

$

$

Not available

3

Honda 16555-ZE6-000

ROD, GOVERNOR

$

$

Not available

4

Honda 16561-ZE6-010

SPRING, GOVERNOR

Note: Use from Engine SN 2478684.

$4.99

$

In Stock, only 1 left!

0

4

Honda 16561-ZE6-640

SPRING, GOVERNOR

Note: Use up to Engine SN 2478683.

$

$

Not available

5

Honda 16562-ZE6-000

SPRING, THROTTLE RETURN

$5.49

$

Usually ships in 3-6 days

0

6

Honda 16570-ZE6-U50

CONTROL

Note: Use from Engine SN 2478684.

$

$

Not available

8

Honda 16570-ZE6-640

CONTROL

Note: Use up to Engine SN 2478683.

$50.99

$

Usually ships in 3-6 days

0

9

Honda 16573-ZE6-010

ROD, CHOKE

$3.49

$

In Stock, only 1 left!

0

11

Honda 16576-891-000

HOLDER, CABLE

$5.49

$

In Stock, only 1 left!

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: Use up to Engine SN 2478683.

$5.49

$

In Stock, Qty 6

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: Use from Engine SN 2478684.

$5.49

$

In Stock, Qty 6

0

16

Honda 36100-ZE6-641

SWITCH ASSY., ENGINE STOP

$20.99

$

Usually ships in 3-6 days

0

17

Honda 36120-ZE6-010

SEE PART DETAILS - PRI; SPRING, SWITCH CONTROL

$3.99

$

In Stock, only 2 left!

0

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2478684.

$2.49

$

In Stock, Qty 15

0

18

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

Note: Use up to Engine SN 2478683.

$3.49

$

In Stock, only 3 left!

0

20

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

21

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

22

Honda 93500-05020-0A

SCREW, PAN (5X20)

Note: Use from Engine SN 2478684.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93500-05025-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X25)

Note: Use from Engine SN 2478684.

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 93500-05025-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X25)

Note: Use up to Engine SN 2478683.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0
