GXV120 N2CA (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) CARBURETOR Parts Diagram

Engine, Made in Japan

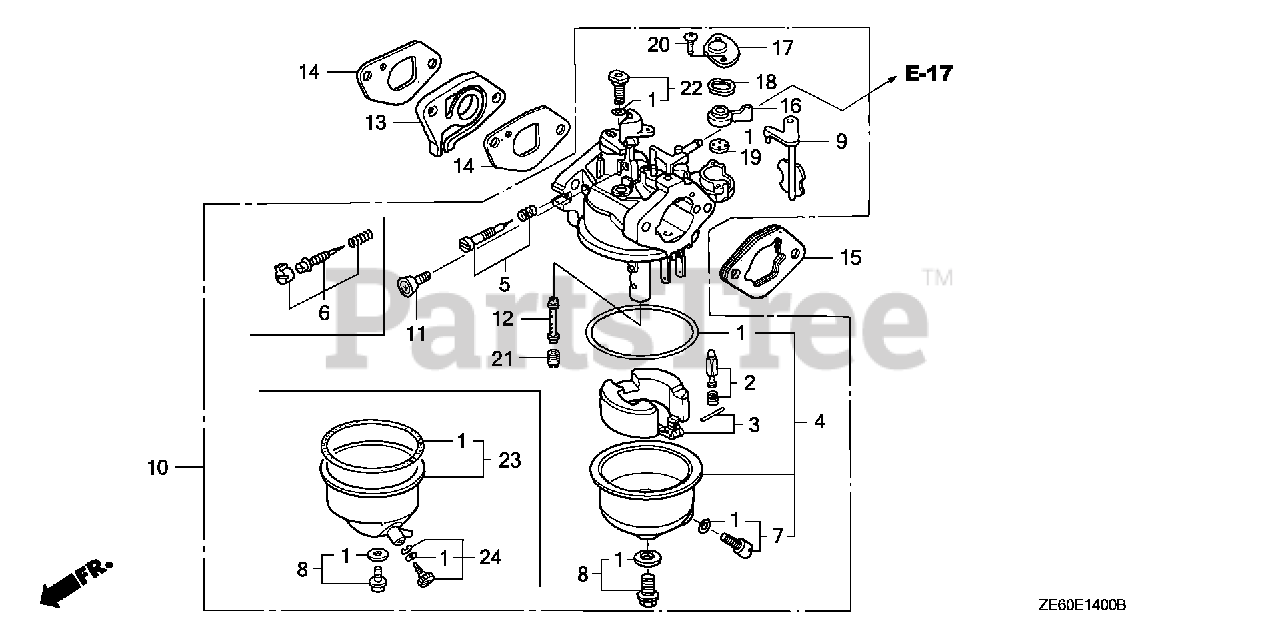

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

$20.99

$

In Stock, Qty 6

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BE03A J.

$38.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (CARBURETOR NO.)
(Superseded to 16015-ZE0-831)

Note: Use up to Engine SN BE03A H.

$38.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (CARBURETOR NO.)

$15.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

9

Honda 16045-ZE6-005

SEE PART DETAILS - PRI; CHOKE SET

$

$

Not available

10

Honda 16100-ZE6-W01

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE56A B)

$112.99

$

In Stock, only 1 left!

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZE6-W00

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use from Engine SN BE03A H.

$

$

Not available

12

Honda 16166-ZE6-015

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BE03A G.

$

$

Not available

13

Honda 16211-ZE6-000

INSULATOR, CARBURETOR

$12.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZE6-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-ZG9-J60)

Note: Use up to Engine SN 2453088.

$3.99

$

In Stock, Qty 19

0

14

Honda 16212-ZG9-J60

SEE PART DETAILS - PRI; GASKET, INSULATOR

$3.99

$

In Stock, Qty 19

0

15

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 8

0

16

Honda 16953-ZE6-005

SEE PART DETAILS - SUP; LEVER, PETCOCK (CARBURETOR NO.)
(Superseded to 16953-ZE6-015)

Note: Use up to Engine SN BE03A H.

$8.49

$

In Stock, only 1 left!

0

16

Honda 16953-ZE6-015

SEE PART DETAILS - PRI; LEVER, PETCOCK (CARBURETOR NO.)

Note: Use up to Engine SN BE03A H.

$8.49

$

In Stock, only 1 left!

0

16

Honda 16953-ZE6-015

SEE PART DETAILS - PRI; LEVER, PETCOCK (CARBURETOR NO.)

Note: Use from Engine SN BE03A J.

$8.49

$

In Stock, only 1 left!

0

17

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK (CARBURETOR NO.)

$4.49

$

In Stock, Qty 20+

0

20

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BE03A J.

$1.49

$

In Stock, only 3 left!

0

20

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use up to Engine SN BE03A H.

$

$

Not available

21

Honda 99101-ZH7-0520

JET, MAIN (#52) Use from Engine SN BE03A H.

$

$

Not available

21

Honda 99101-ZH7-0550

JET, MAIN (#55) Use from Engine SN BE03A H.

$

$

Not available

21

Honda 99101-ZH7-0580

JET, MAIN (#58) (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use from Engine SN BE03A H.

$

$

Currently unavailable

21

Honda 99101-124-0600

JET, MAIN (#60) Use up to Engine SN BE03A G.

$12.99

$

In Stock, Qty 5

0

21

Honda 99101-124-0620

JET, MAIN (#62) Use up to Engine SN BE03A G.

$11.99

$

In Stock, only 2 left!

0

21

Honda 99101-124-0650

JET, MAIN (#65) (CARBURETOR NO.)

Note: Use up to Engine SN BE03A G.

$13.99

$

In Stock, only 2 left!

0

22

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (CARBURETOR NO.)

Note: Use up to Engine SN BE03A G.

$23.99

$

In Stock, only 2 left!

0

22

Honda 99204-ZE2-0380

JET SET, PILOT (#38) (CARBURETOR NO.)

Note: Use from Engine SN BE03A H.

$23.99

$

Usually ships in 3-6 days

0
