GXV120 D1# (GXV120) - Honda Engine, Made in USA (SN: GXV120-6000001 - GXV120-9999999) MUFFLER Parts Diagram

Engine, Made in USA

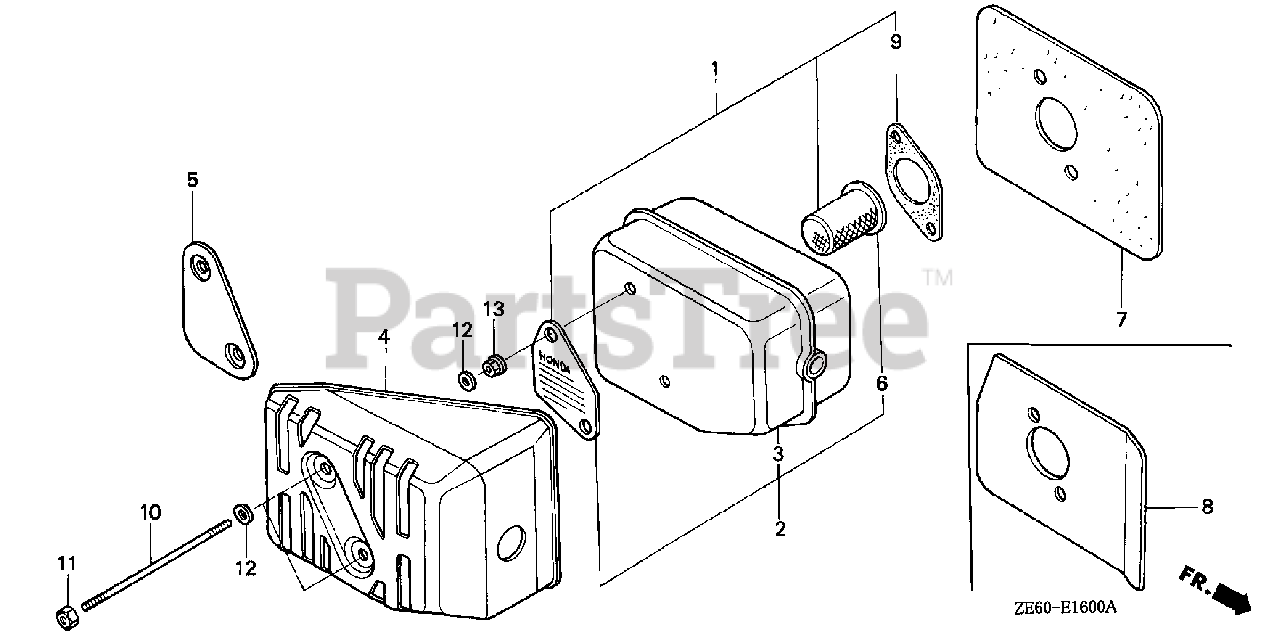

MUFFLER Parts Diagram

  • Title
1

Honda 06180-ZE6-820

ARRESTER KIT, SPARK

$30.99

$

In Stock, only 1 left!

0

2

Honda 183A1-ZE6-003

MUFFLER (NOT AVAILABLE)

$

$

Not available

$

$

Not available

4

Honda 18320-ZE6-020

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$

$

Not available

6

Honda 06180-888-505

ARRESTER KIT, SPARK

$20.99

$

In Stock, only 1 left!

0

7

Honda 18381-ZE6-307

GASKET, MUFFLER

$

$

Not available

9

Honda 18381-ZE6-820

GASKET, MUFFLER

$5.49

$

In Stock, Qty 7

0

10

Honda 90013-ZE6-T00

BOLT, STUD (6X81)

$

$

Currently unavailable

11

Honda 90343-ZE6-000

NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0
