GXV120 D1# (GXV120) - Honda Engine, Made in USA (SN: GXV120-6000001 - GXV120-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in USA

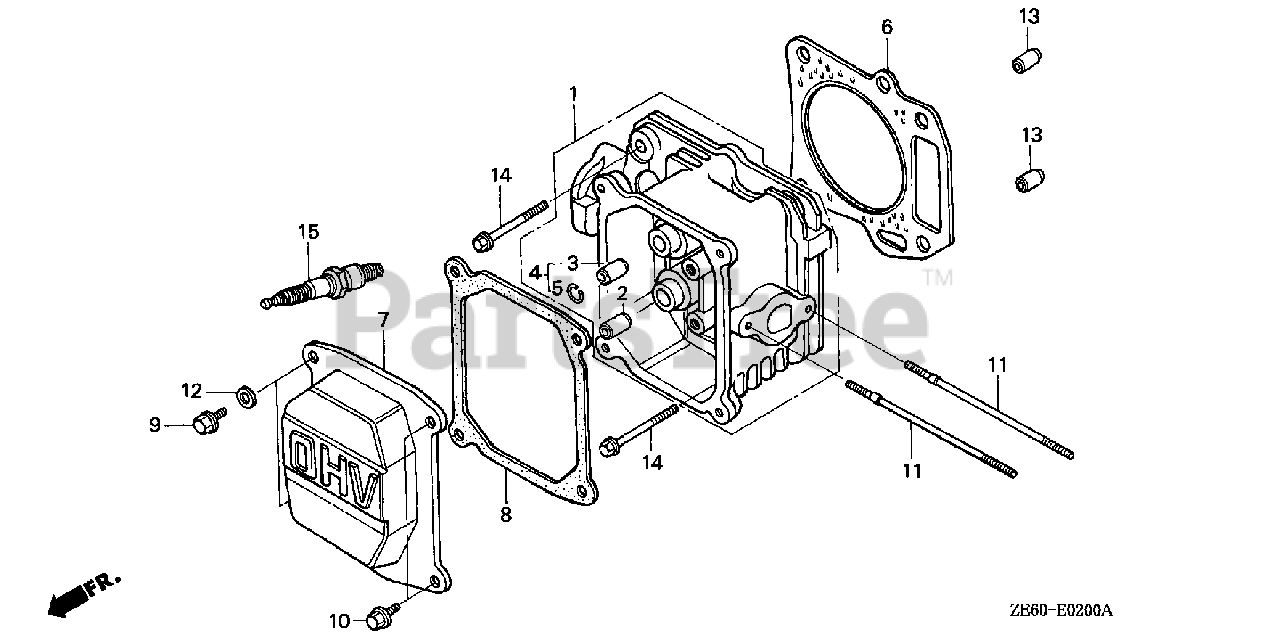

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZE6-T00

SEE PART DETAILS - SUP; CYLINDER HEAD (USA)
(Superseded to 12200-ZE6-406)

$

$

Not available

1

Honda 12200-ZE6-405

SEE PART DETAILS - SUP; CYLINDER HEAD

$

$

Currently unavailable

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)

$

$

Not available

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$9.99

$

Usually ships in 3-6 days

0

4

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

$10.99

$

In Stock, only 2 left!

0

5

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 17

0

6

Honda 12251-ZE6-000

GASKET, CYLINDER HEAD

$10.99

$

In Stock, only 1 left!

0

7

Honda 12310-ZE7-000

SEE PART DETAILS - PRI; COVER, HEAD

$25.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE7-M10

GASKET, HEAD COVER

$12.99

$

In Stock, Qty 8

0

9

Honda 90016-ZE6-T00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X13)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

11

Honda 90043-ZE6-T00

BOLT, STUD (6X97)

$

$

Not available

12

Honda 90474-704-000

WASHER (6X17)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

15

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-54855

SPARK PLUG (W14EPR-U) (DENSO)

$3.99

$

In Stock, only 3 left!

0

15

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 8

0
