GXV120 A1LA (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) FLYWHEEL (1) Parts Diagram

Engine, Made in Japan

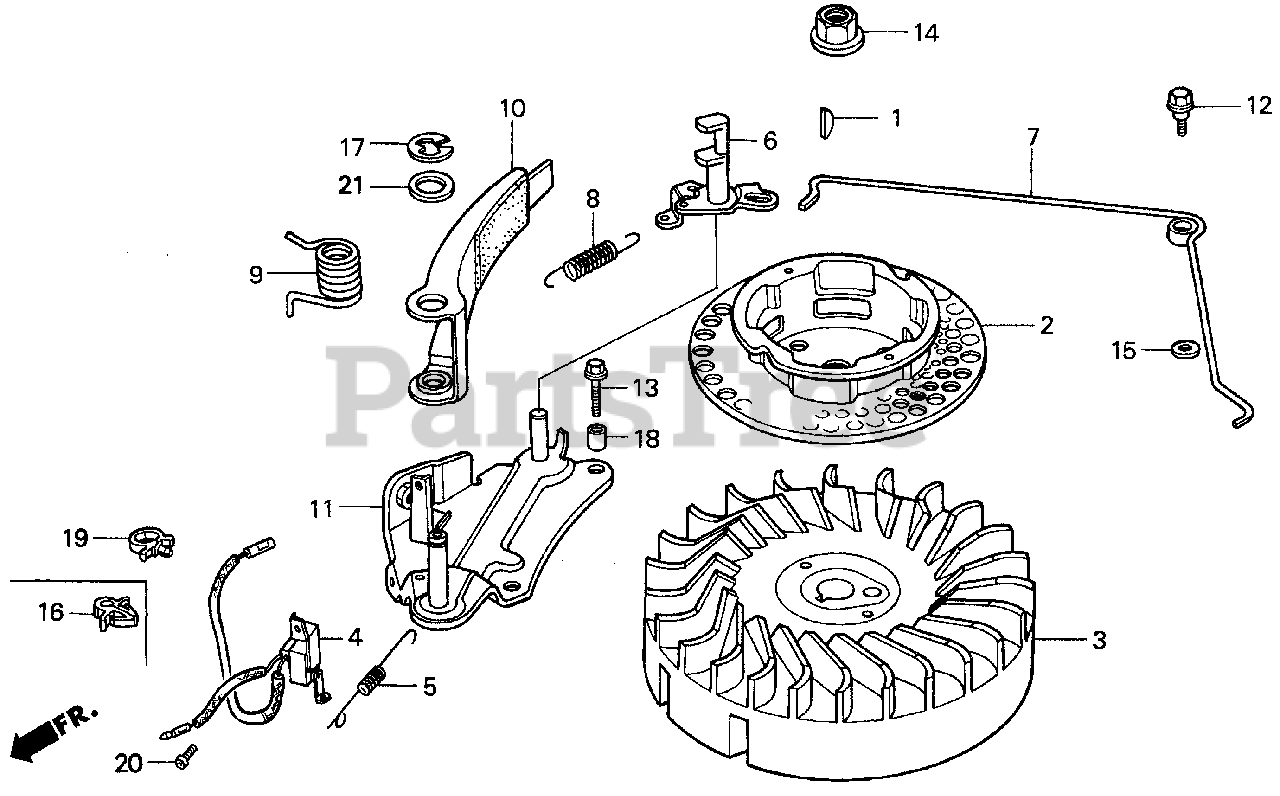

FLYWHEEL (1) Parts Diagram

  • Title
1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$4.99

$

In Stock, Qty 7

0

2

Honda 28451-ZE6-003

PULLEY, STARTER (Honda Code 1453562).

$

$

Not available

3

Honda 31100-ZE6-013

FLYWHEEL (Honda Code 4508123).

$212.99

$

Usually ships in 3-6 days

0

4

Honda 36100-ZE6-651

SWITCH ASSY., ENGINE STOP (Honda Code 1830181).

$

$

Not available

5

Honda 36121-ZE6-000

SPRING, SWITCH CONTROL (Honda Code 1735851).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 43140-ZE6-000

CAM, BRAKE (Honda Code 1732031).

$21.99

$

Usually ships in 3-6 days

0

7

Honda 43145-ZE6-020

SEE PART DETAILS - PRI; ROD, THROTTLE RETURN (Honda Code 4508180).

$

$

Not available

8

Honda 75112-ZE6-000

SPRING, BRAKE (Honda Code 1735877).

$12.99

$

Usually ships in 3-6 days

0

9

Honda 75113-ZE6-000

SPRING, BRAKE RETURN (Honda Code 1732056).

$4.49

$

In Stock, Qty 16

0

10

Honda 75120-ZE6-013

BRAKE (Honda Code 3431871).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 75130-ZE6-000

BASE, BRAKE (Honda Code 1732072).

$38.99

$

Usually ships in 3-6 days

0

12

Honda 90015-ZE6-000

BOLT, FLANGE (6MM) (Honda Code 1688084).

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, only 2 left!

0

14

Honda 90201-878-003

NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0

15

Honda 90417-360-000

WASHER, DRUM STOPPER (Honda Code 0341099).

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90653-723-000

E-RING (10MM) (Honda Code 0454074).

$1.99

$

In Stock, only 2 left!

0

18

Honda 90702-ZE6-000

PIN, DOWEL (8X9) (Honda Code 1735885).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 91504-750-003

CLIP, WIRE HARNESS (Honda Code 1803444).

$3.99

$

Usually ships in 3-6 days

0

20

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

21

Honda 94102-12800

WASHER, FLAT (12MM) (Honda Code 1018340).

$

$

Not available
