GXV120 A1LA (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

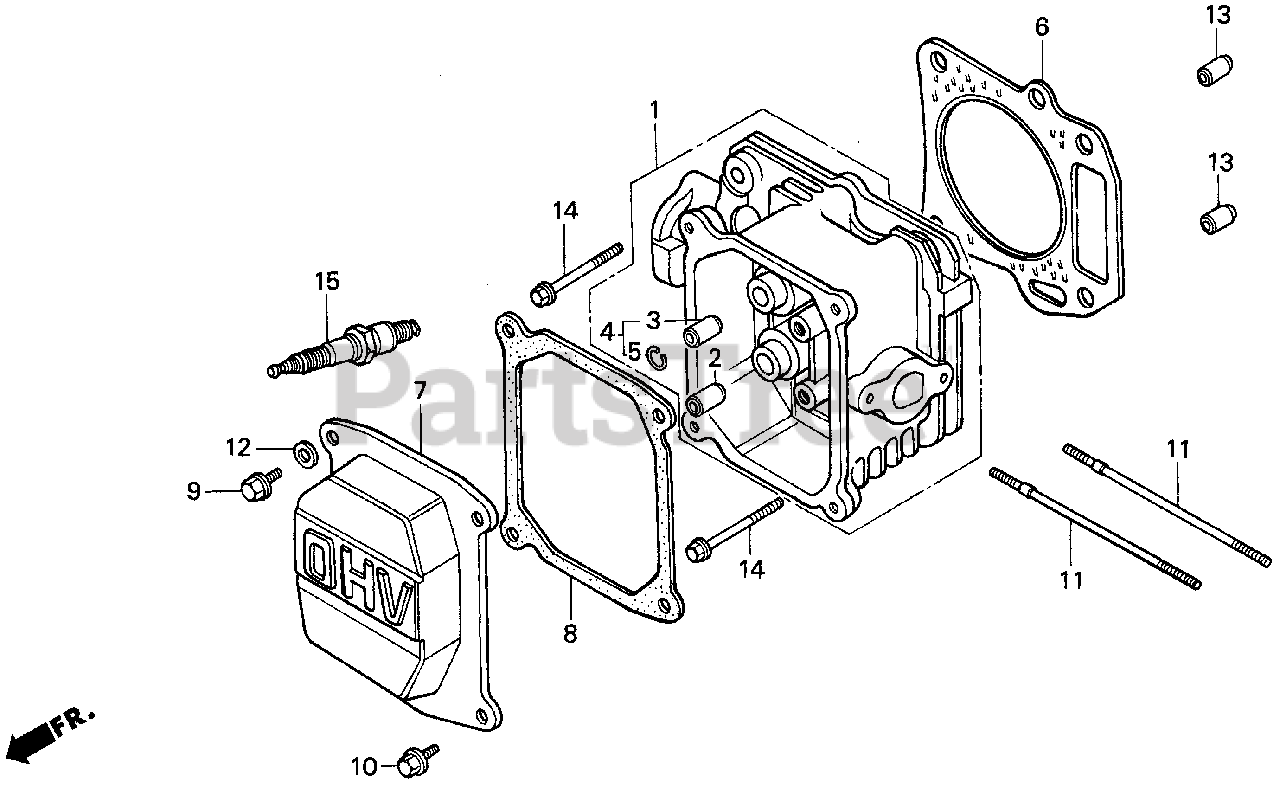

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZE6-040

CYLINDER HEAD (Honda Code 4507901).

Note: Use up to Engine SN 2551344.

$

$

Currently unavailable

1

Honda 12200-ZE6-050

CYLINDER HEAD (Honda Code 6916084).

Note: Use from Engine SN 2551345.

$253.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4165874).

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

4

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

Note: (Optional).

$10.99

$

In Stock, only 2 left!

0

5

Honda 12216-ZE5-300

CLIP, VALVE GUIDE (Honda Code 2399780).

$1.99

$

In Stock, Qty 17

0

6

Honda 12251-ZE6-000

GASKET, CYLINDER HEAD (Honda Code 1452598).

$11.99

$

In Stock, only 2 left!

0

7

Honda 12310-ZE7-000

COVER, HEAD (Honda Code 2289379).

$26.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE7-M10

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4060828).

$12.99

$

In Stock, only 4 left!

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, Qty 12

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

11

Honda 90043-ZE6-000

BOLT, STUD (6X109) (Honda Code 4618625).

$8.49

$

In Stock, only 2 left!

0

13

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-08045-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 2533859).

$1.99

$

In Stock, Qty 17

0

15

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK) (Honda Code 1521756).

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-54855

SEE PART DETAILS - PRI; SPARK PLUG (W14EPR-U) (DENSO) (Honda Code 1521764).

Note: (Optional).

$3.99

$

In Stock, only 3 left!

0

15

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

Note: (Optional).

$3.99

$

In Stock, Qty 8

0
