GXV120 A1LA (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) CAMSHAFT Parts Diagram

Engine, Made in Japan

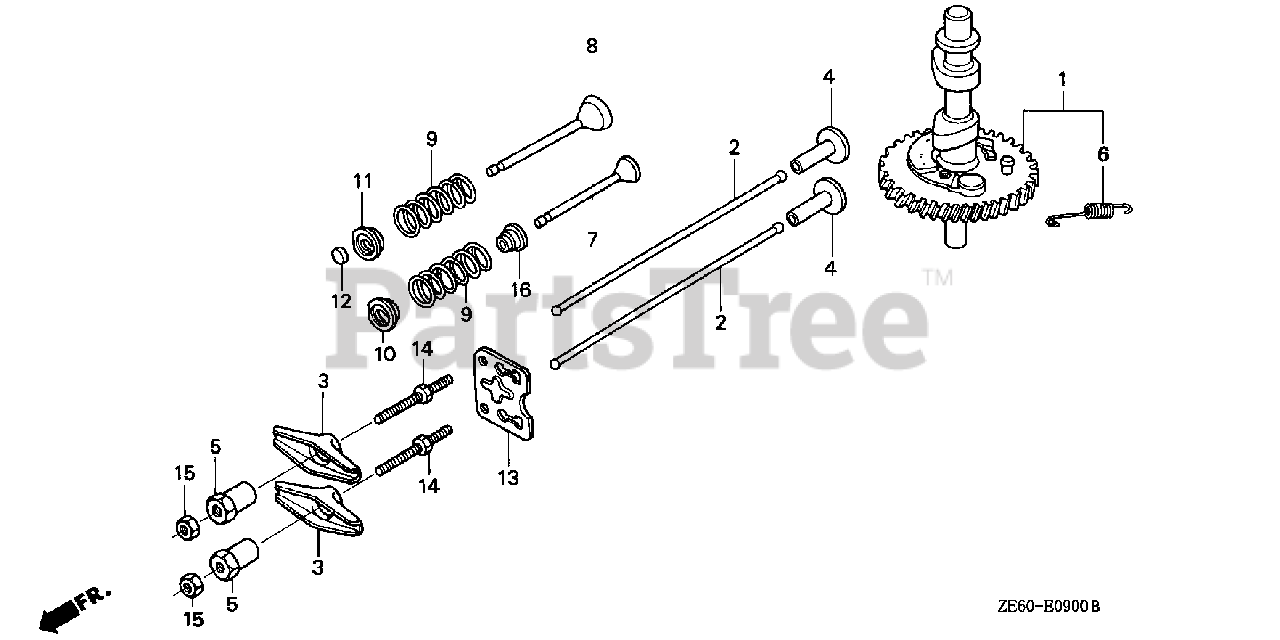

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE6-W00

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

$

$

Not available

2

Honda 14410-ZE0-010

SEE PART DETAILS - PRI; ROD, PUSH

$8.99

$

In Stock, only 2 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER

$7.99

$

In Stock, only 2 left!

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 7

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZE0-010

SEE PART DETAILS - PRI; VALVE, IN.

$

$

Not available

8

Honda 14721-ZE6-010

SEE PART DETAILS - PRI; VALVE, EX.

$

$

Not available

9

Honda 14751-ZE1-000

SPRING, VALVE

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 16

0

11

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 16

0

13

Honda 14791-ZE0-010

PLATE, PUSH ROD GUIDE

$4.49

$

In Stock, only 2 left!

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.49

$

In Stock, only 2 left!

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 8

0

16

Honda 12209-ZE6-003

SEAL, VALVE STEM

Note: Use from Engine SN 2554751.

$4.49

$

In Stock, only 2 left!

0
