GXV120 A1L2 (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

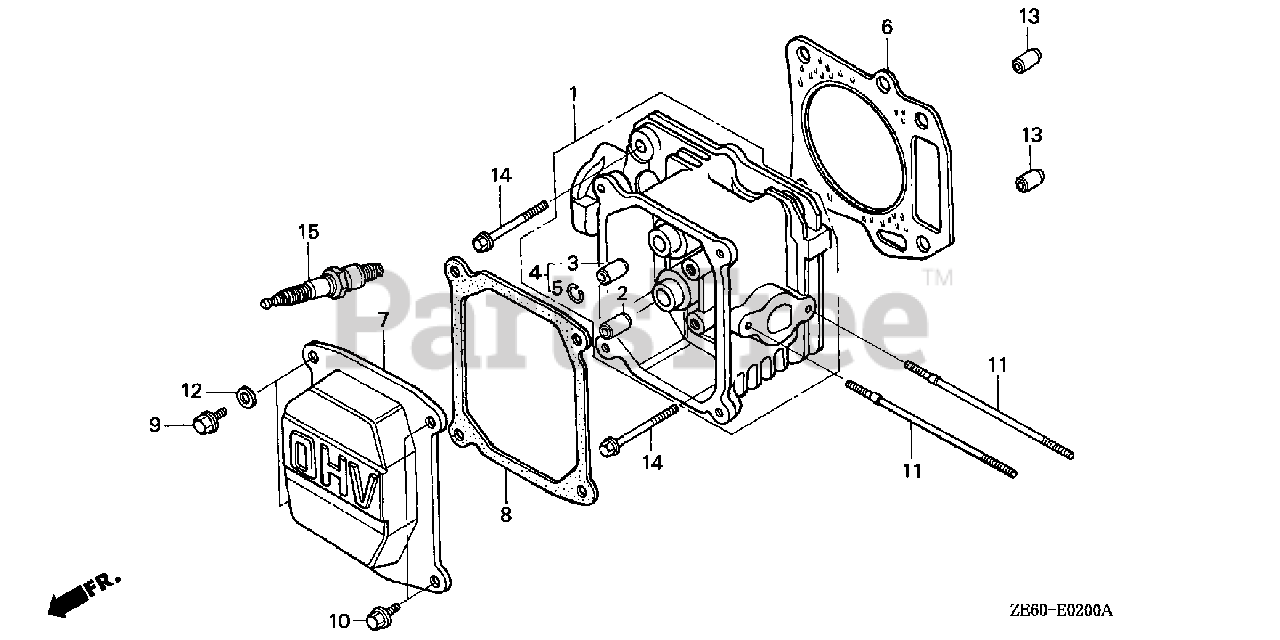

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZE6-406

SEE PART DETAILS - PRI; CYLINDER HEAD

$225.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$

$

Not available

4

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

$10.99

$

In Stock, only 3 left!

0

5

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 18

0

6

Honda 12251-ZE6-000

GASKET, CYLINDER HEAD

$10.99

$

In Stock, only 1 left!

0

7

Honda 12310-ZE7-000

SEE PART DETAILS - PRI; COVER, HEAD

$23.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE7-M10

GASKET, HEAD COVER

$11.99

$

In Stock, Qty 9

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

11

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X112)

Note: Use up to Engine SN 2487632.

$6.49

$

In Stock, Qty 7

0

11

Honda 90043-ZE6-000

BOLT, STUD (6X109)

Note: Use from Engine SN 2487633.

$7.49

$

In Stock, only 2 left!

0

13

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-08045-00

BOLT, FLANGE (8X45)

$1.99

$

In Stock, Qty 20+

0

15

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

15

Honda 98079-54855

SPARK PLUG (W14EPR-U) (DENSO)

$3.99

$

In Stock, only 3 left!

0

15

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, only 1 left!

0
