GXV120 A12 (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

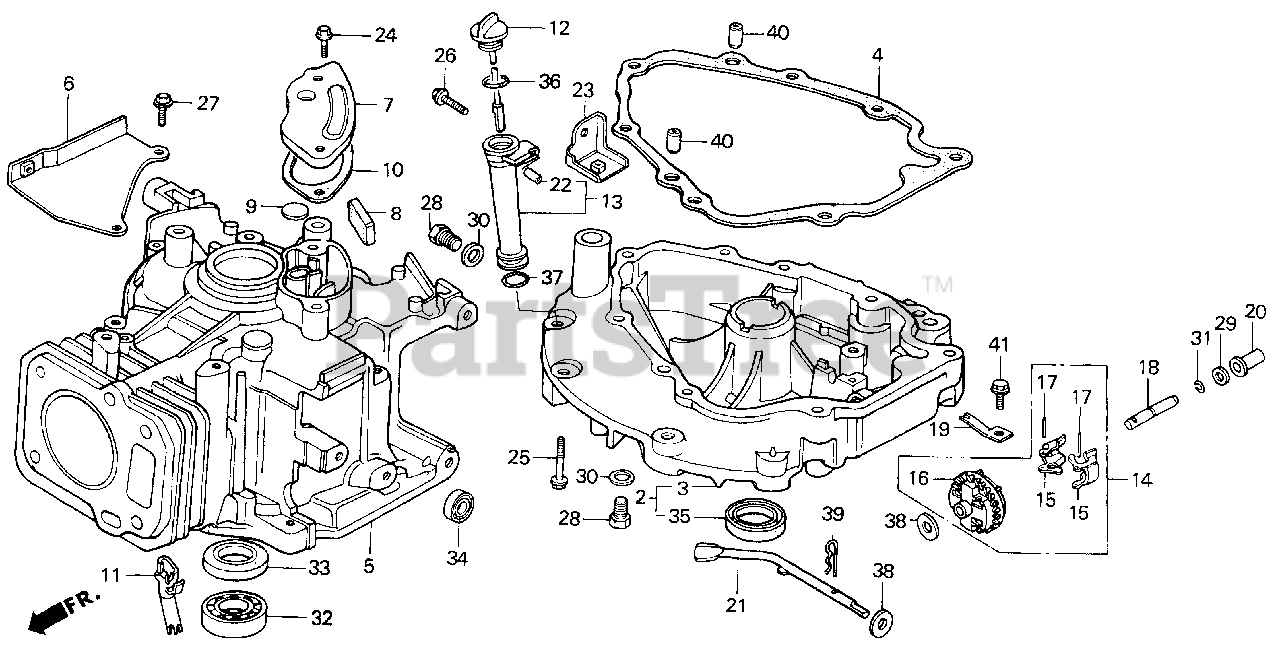

CYLINDER BARREL Parts Diagram

  • Title

2

Honda 11300-ZE6-641

PAN ASSY., OIL (NOT AVAILABLE) (Honda Code 6135305).

$

$

Currently unavailable

4

Honda 11381-ZG9-J60

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 4034609).
(Superseded to 11381-ZG9-T00)

$12.99

$

In Stock, only 1 left!

0

4

Honda 11381-ZG9-T00

SEE PART DETAILS - PRI; GASKET, OIL PAN (HPE) (Honda Code 4224259).

$12.99

$

In Stock, only 1 left!

0

5

Honda 121A0-ZE6-030

SEE PART DETAILS - SUP; CYLINDER (Honda Code 2771434).

$

$

Currently unavailable

5

Honda 12100-ZE6-405

SEE PART DETAILS - PRI; CYLINDER (Honda Code 7605561).

$463.99

$

Usually ships in 3-6 days

0

7

Honda 12360-ZE6-000

CAP, BREATHER CHAMBER (Honda Code 1662535).

$

$

Not available

8

Honda 12367-ZE6-010

SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 2794402).

$3.99

$

In Stock, only 1 left!

0

9

Honda 12372-879-000

VALVE, BREATHER (Honda Code 0452151).

$2.49

$

In Stock, only 2 left!

0

10

Honda 12373-ZE6-000

GASKET, BREATHER CHAMBER (Honda Code 1452622).

$2.99

$

In Stock, Qty 6

0

11

Honda 12385-ZE6-000

PIPE, OIL DEFENSE (Honda Code 1825702).

$

$

Not available

12

Honda 15620-ZE6-810

DIPSTICK, OIL (Honda Code 3337862).

$12.99

$

In Stock, only 1 left!

0

13

Honda 15630-ZE6-810

EXTENSION, OIL FILLER (106MM) (Honda Code 3337870).

$54.99

$

In Stock, only 1 left!

0

14

Honda 16510-ZE6-000

GOVERNOR ASSY. (Honda Code 3337904).

$24.99

$

In Stock, only 1 left!

0

15

Honda 16511-ZE1-000

WEIGHT, GOVERNOR (Honda Code 1427228).

$3.99

$

Usually ships in 3-6 days

0

16

Honda 16512-ZE6-000

HOLDER, GOVERNOR WEIGHT (Honda Code 1452846).

$15.99

$

Usually ships in 3-6 days

0

17

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 16515-ZE6-000

SEE PART DETAILS - SUP; SHAFT, GOVERNOR HOLDER (Honda Code 1452853).
(Superseded to 16515-ZE6-010)

$7.49

$

Usually ships in 3-6 days

0

18

Honda 16515-ZE6-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 7338890).

$7.49

$

Usually ships in 3-6 days

0

19

Honda 16525-ZE6-010

SEE PART DETAILS - PRI; PLATE, GOVERNOR SHAFT HOLDER (Honda Code 3337912).

$6.99

$

Usually ships in 3-6 days

0

20

Honda 16531-ZE1-000

SLIDER, GOVERNOR (Honda Code 1427251).

$3.49

$

In Stock, only 1 left!

0

21

Honda 16541-ZE7-000

SHAFT, GOVERNOR ARM (Honda Code 2289643).

$15.99

$

Usually ships in 3-6 days

0

22

Honda 17240-ZE6-000

COLLAR, EXTENSION (Honda Code 1453000).

$4.99

$

In Stock, only 1 left!

0

23

Honda 43143-ZE6-000

BASE, HOLDER (Honda Code 1732049).

$

$

Not available

24

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

25

Honda 90015-883-000

BOLT, FLANGE (6X28) (Honda Code 0636852).

$3.99

$

In Stock, Qty 8

0

26

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 1 left!

0

28

Honda 90131-ZE1-000

BOLT, DRAIN PLUG (Honda Code 1431246).

$3.49

$

In Stock, only 1 left!

0

29

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$1.99

$

In Stock, Qty 5

0

30

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

31

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

32

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

$37.99

$

In Stock, only 1 left!

0

33

Honda 91202-ZE6-003

SEE PART DETAILS - SUP; OIL SEAL (22X35X6) (Honda Code 3270246).
(Superseded to 91202-ZE6-013)

$9.99

$

In Stock, only 3 left!

0

33

Honda 91202-ZE6-013

SEE PART DETAILS - PRI; OIL SEAL (22X35X6) (Honda Code 7387756).

$9.99

$

In Stock, only 3 left!

0

34

Honda 91231-891-003

OIL SEAL (6X11X4) (Honda Code 0801043).

$2.99

$

In Stock, only 1 left!

0

35

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7) (Honda Code 5230073).

$4.99

$

In Stock, Qty 7

0

35

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

36

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

In Stock, only 1 left!

0

37

Honda 91301-ZE9-003

O-RING (22.5X2.2) (Honda Code 2280006).

$2.49

$

In Stock, Qty 12

0

38

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

39

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

40

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

41

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0
