GXV120 A1# (GXV120) - Honda Engine, Made in USA (SN: GXV120-6000001 - GXV120-9999999) MUFFLER Parts Diagram

Engine, Made in USA

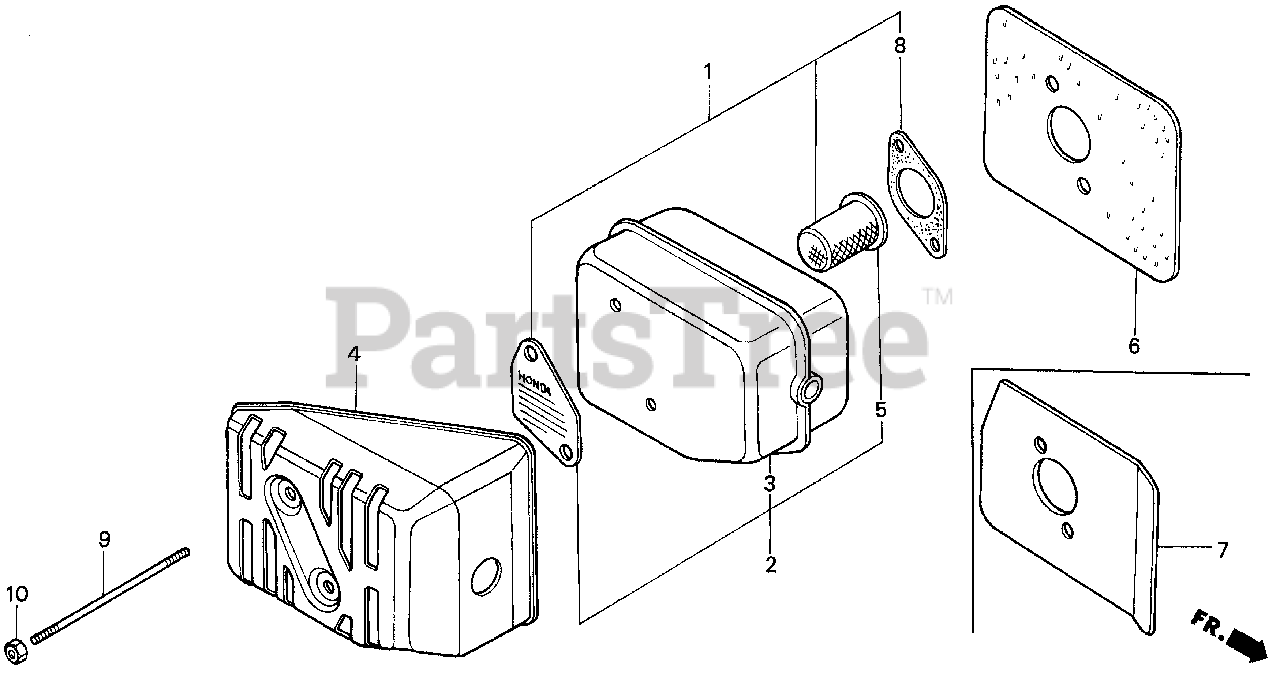

MUFFLER Parts Diagram

  • Title

1

Honda 06180-ZE6-810

SEE PART DETAILS - SUP; ARRESTER KIT, SPARK (Honda Code 1662550). (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

1

Honda 06180-ZE6-820

SEE PART DETAILS - PRI; ARRESTER KIT, SPARK (Honda Code 4165866).

Note: (Optional).

$30.99

$

In Stock, only 1 left!

0

2

Honda 183A1-ZE6-003

MUFFLER (Honda Code 1453216).

Note: (Optional).

$

$

Not available

3

Honda 18310-ZE6-003

MUFFLER (Honda Code 1495373).

$

$

Not available

4

Honda 18320-ZE6-020

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER (Honda Code 3191962).

$

$

Not available

5

Honda 06180-888-505

SEE PART DETAILS - PRI; ARRESTER KIT, SPARK (Honda Code 4562245).

Note: (Optional).

$20.99

$

In Stock, only 1 left!

0

5

Honda 06180-888-810

SEE PART DETAILS - SUP; ARRESTER KIT, SPARK (Honda Code 0703082).

Note: (Optional).

$

$

Currently unavailable

6

Honda 18381-ZE6-000

SEE PART DETAILS - SUP; GASKET, MUFFLER (NOT AVAILABLE) (Honda Code 1453232).

$

$

Currently unavailable

6

Honda 18381-ZE6-307

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4415055).

$

$

Not available

8

Honda 18381-ZE6-810

GASKET, MUFFLER (Honda Code 1662568). (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

8

Honda 18381-ZE6-820

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4165932).

Note: (Optional).

$5.49

$

In Stock, Qty 7

0

9

Honda 90013-ZE6-T00

BOLT, STUD (6X81) (Honda Code 2942464).

$

$

Currently unavailable

10

Honda 90343-ZE6-000

NUT, SELF-LOCK (6MM) (Honda Code 1662576).

$2.49

$

In Stock, Qty 20+

0
