GXV120 A1# (GXV120) - Honda Engine, Made in USA (SN: GXV120-6000001 - GXV120-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in USA

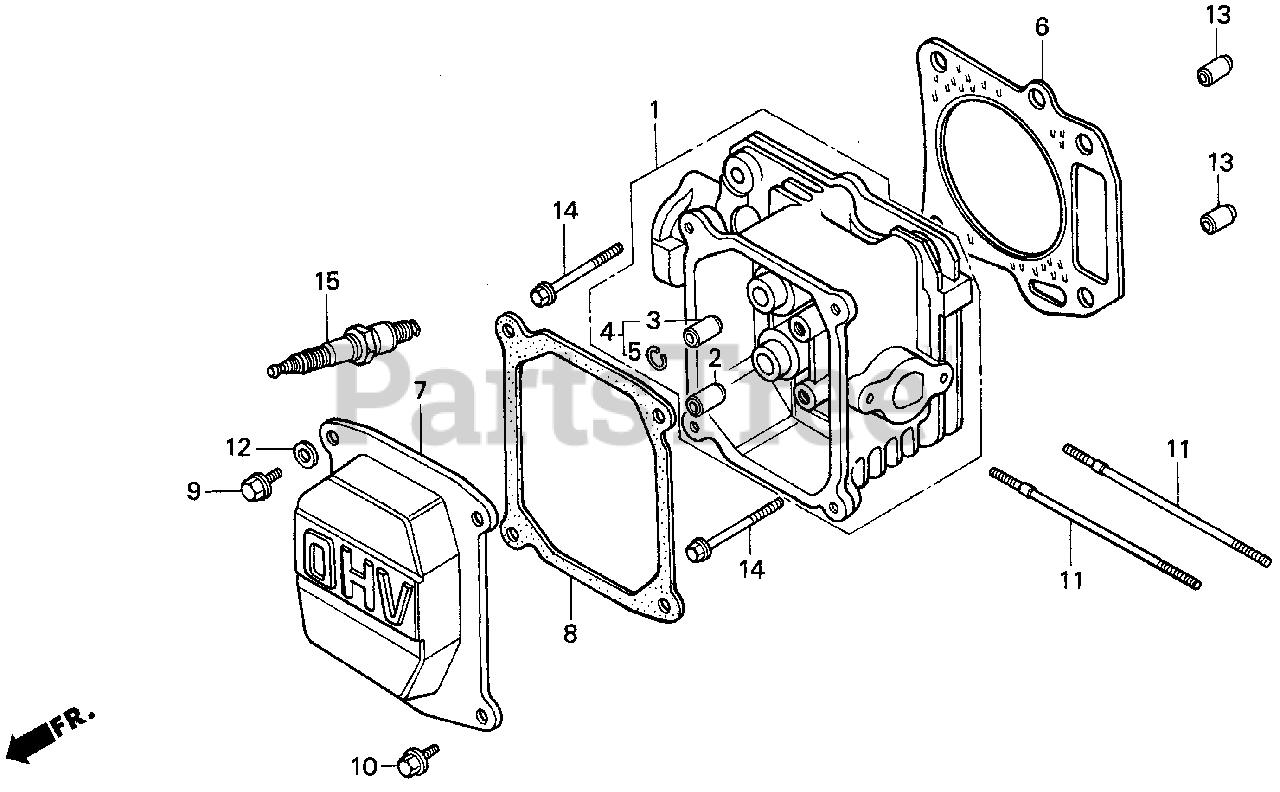

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE6-G01

SEE PART DETAILS - SUP; CYLINDER HEAD (Honda Code 2821551).

$

$

Currently unavailable

1

Honda 12200-ZE6-T00

SEE PART DETAILS - SUP; CYLINDER HEAD (USA) (Honda Code 2942209).
(Superseded to 12200-ZE6-406)

$225.99

$

Usually ships in 3-6 days

0

1

Honda 12200-ZE6-405

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 7605587).

$

$

Currently unavailable

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS) (Honda Code 1441096).

Note: (Optional).

$

$

Not available

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4165874).

Note: (Optional).

$

$

Not available

4

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

Note: (Optional).

$10.99

$

In Stock, only 3 left!

0

5

Honda 12216-ZE5-300

CLIP, VALVE GUIDE (Honda Code 2399780).

$1.99

$

In Stock, Qty 18

0

6

Honda 12251-ZE6-000

GASKET, CYLINDER HEAD (Honda Code 1452598).

$10.99

$

In Stock, only 1 left!

0

7

Honda 12310-ZE7-000

COVER, HEAD (Honda Code 2289379).

$23.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE7-M10

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4060828).

$11.99

$

In Stock, Qty 9

0

8

Honda 12391-ZE7-000

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD COVER (NOT AVAILABLE) (Honda Code 2289429).

$

$

Currently unavailable

9

Honda 90016-ZE6-T00

BOLT, FLANGE (6X13) (Honda Code 2942472).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 9

0

11

Honda 90043-ZE6-T00

SEE PART DETAILS - PRI; BOLT, STUD (6X97) (Honda Code 2942480).

$

$

Not available

12

Honda 90474-704-000

WASHER (6X17) (Honda Code 0181321).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

15

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK) (Honda Code 1521756).

Note: (Optional).

$3.49

$

In Stock, Qty 20+

0

15

Honda 98079-54855

SEE PART DETAILS - PRI; SPARK PLUG (W14EPR-U) (DENSO) (Honda Code 1521764).

Note: (Optional).

$3.99

$

In Stock, only 3 left!

0

15

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.49

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

Note: (Optional).

$3.49

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

Note: (Optional).

$3.99

$

In Stock, only 1 left!

0
