GXV120 A1# (GXV120) - Honda Engine, Made in USA (SN: GXV120-6000001 - GXV120-9999999) CARBURETOR Parts Diagram

Engine, Made in USA

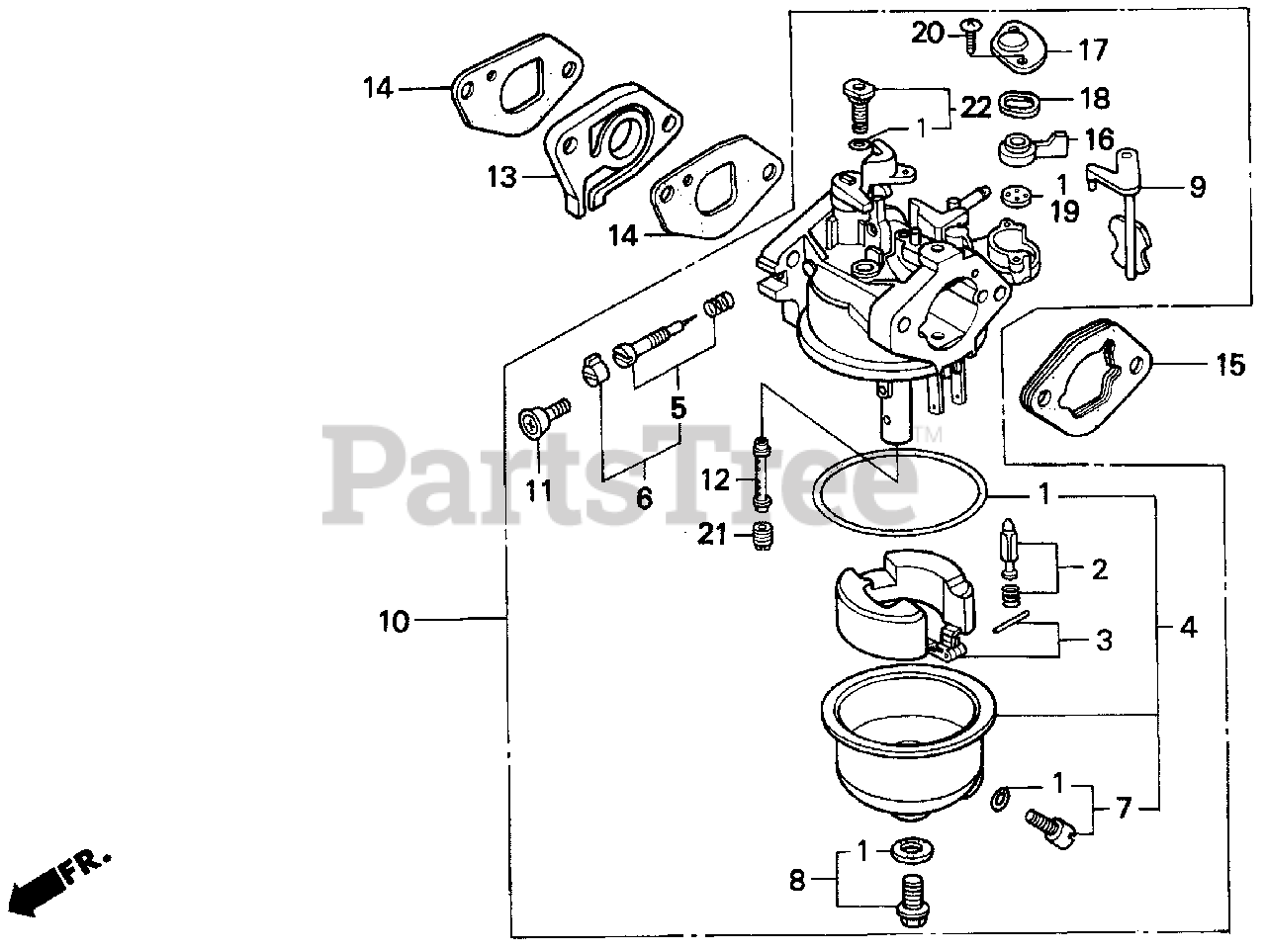

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3440674).

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (Honda Code 1441476).

$28.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (Honda Code 2464287).
(Superseded to 16015-ZE0-831)

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500).

$14.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187).

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

9

Honda 16045-ZE6-005

SEE PART DETAILS - PRI; CHOKE SET (Honda Code 3412038).

$

$

Not available

10

Honda 16100-ZE6-055

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE03A H) (Honda Code 4538070).

$

$

Currently unavailable

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZE6-015

SEE PART DETAILS - PRI; NOZZLE, MAIN (Honda Code 1557487).

$

$

Not available

13

Honda 16211-ZE6-000

INSULATOR, CARBURETOR (Honda Code 1452812).

$11.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZE6-000

SEE PART DETAILS - SUP; GASKET, INSULATOR (NOT AVAILABLE) (Honda Code 1452820).

$

$

Currently unavailable

14

Honda 16212-ZE6-306

SEE PART DETAILS - SUP; GASKET, INSULATOR (Honda Code 4425344).
(Superseded to 16212-ZG9-J60)

$3.49

$

In Stock, only 2 left!

0

14

Honda 16212-ZG9-J60

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4034658).

$3.49

$

In Stock, only 2 left!

0

15

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2455640).

$7.99

$

In Stock, only 1 left!

0

16

Honda 16953-ZE6-005

LEVER, VALVE (Honda Code 2580116).
(Superseded to 16953-ZE6-015)

$8.49

$

In Stock, only 1 left!

0

17

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (Honda Code 5148135).

$4.49

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SPRING, VALVE LEVER (Honda Code 1807809).

$3.99

$

In Stock, only 1 left!

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 7

0

20

Honda 93500-03008-0G

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0420505).

$

$

Not available

21

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474).

Note: (Optional).

$12.99

$

In Stock, Qty 6

0

21

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0650

JET, MAIN (#65) (Honda Code 0636126).

$12.99

$

In Stock, only 2 left!

0

22

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 1 left!
