GXV120 A1# (GXV120) - Honda Engine, Made in USA (SN: GXV120-6000001 - GXV120-9999999) AIR CLEANER Parts Diagram

Engine, Made in USA

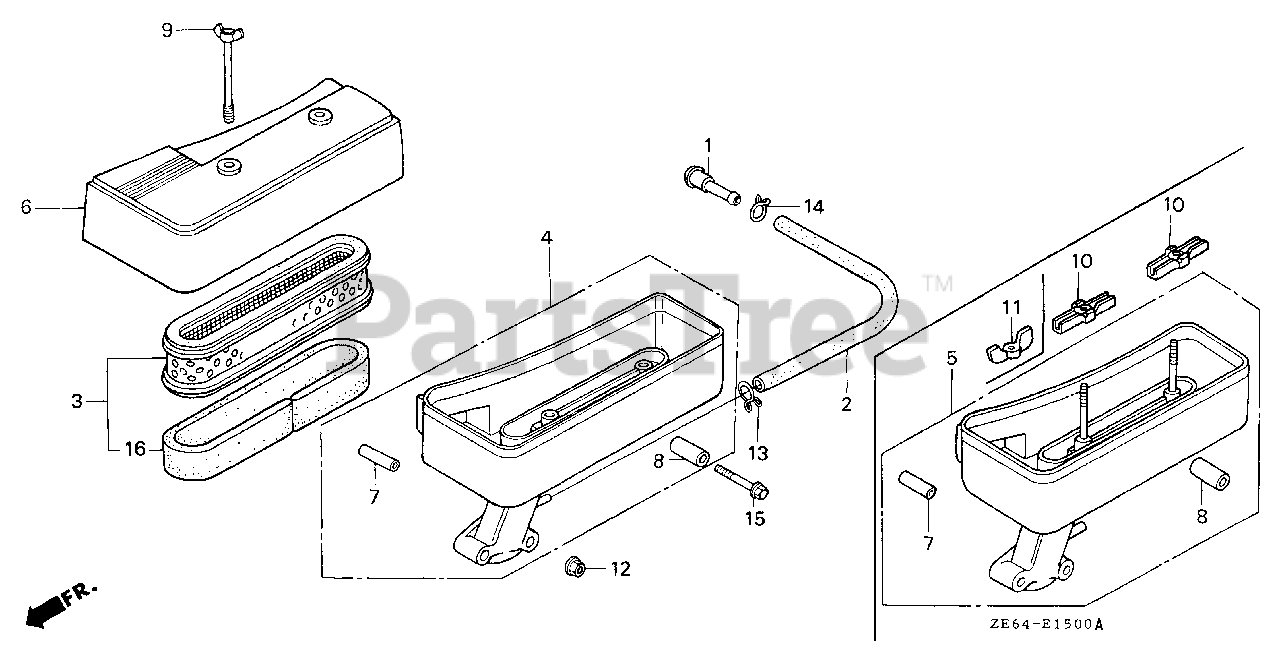

AIR CLEANER Parts Diagram

  • Title

1

Honda 12150-ZE6-000

JOINT, TUBE (Honda Code 2464105).

$

$

Not available

2

Honda 15721-ZE6-010

TUBE, BREATHER (Honda Code 2580033).

$

$

Not available

3

Honda 17210-ZE6-003

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (Honda Code 1495902).
(Superseded to 17210-ZE6-305)

$20.99

$

In Stock, only 3 left!

0

3

Honda 17210-ZE6-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 5185855).

$

$

Not available

4

Honda 04101-ZE6-405

SEE PART DETAILS - PRI; CASE SET, AIR CLEANER (Honda Code 3192168).

$

$

Not available

6

Honda 17231-ZE6-000

COVER, AIR CLEANER (Honda Code 1452986).

$48.99

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE7-010

COLLAR, AIR CLEANER (Honda Code 2455673).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17239-ZE6-300

COLLAR B, AIR CLEANER (Honda Code 1452994).

$4.99

$

In Stock, only 1 left!

0

9

Honda 17291-GF8-000

BOLT, ELEMENT SETTING (Honda Code 1644640).

$15.99

$

In Stock, only 1 left!

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

13

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12) (Honda Code 0335034).

$2.99

$

In Stock, only 2 left!

0

14

Honda 90652-MB1-000

CLIP, TUBE (Honda Code 1768605).

$1.99

$

Usually ships in 3-6 days

0

15

Honda 95701-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2105864).

$2.49

$

In Stock, only 2 left!

0
