GXR120 RT KRWB (GCCDT) - Honda Engine, Made in Thailand (SN: GCCDT-1000001 - GCCDT-1999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Thailand

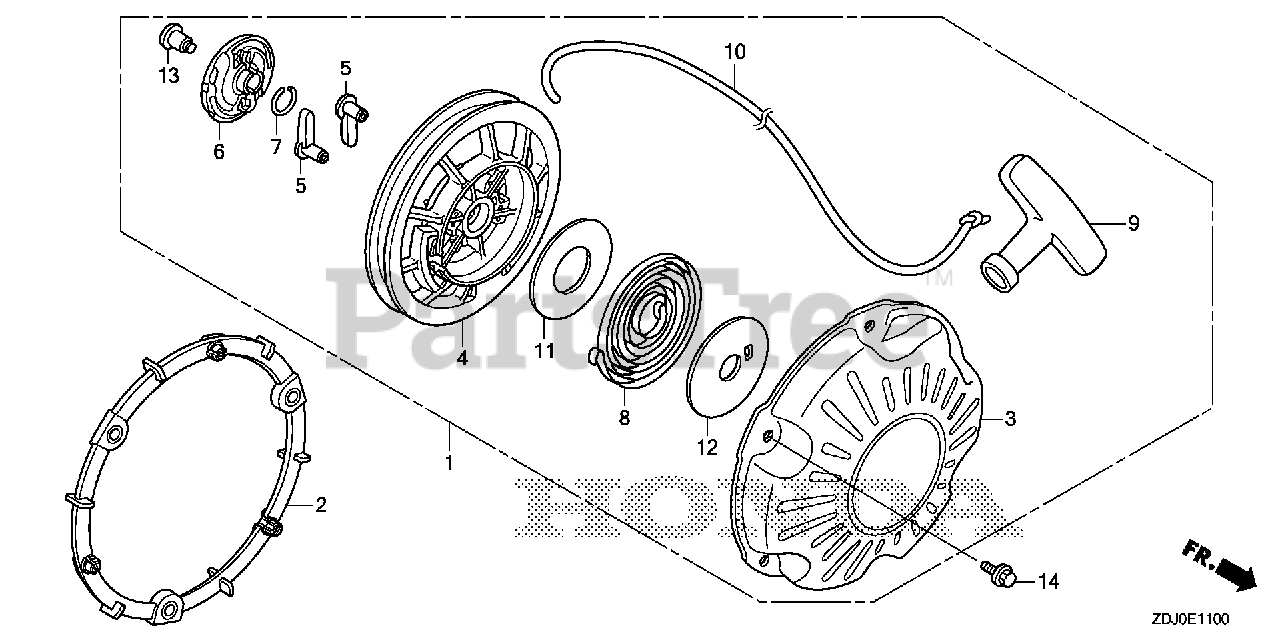

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZDJ-003ZB

STARTER ASSY., RECOIL *NH1* (BLACK)

$18.99

$

In Stock, only 2 left!

0

2

Honda 28405-ZDJ-000

SPACER, RECOIL STARTER MOUNTING

$9.99

$

In Stock, only 2 left!

0

3

Honda 28410-ZDJ-003ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$13.99

$

Usually ships in 3-6 days

0

4

Honda 28421-ZDD-003

REEL, RECOIL STARTER (BLACK)

Note: Use from Engine SN 1000003.

$6.99

$

Usually ships in 3-6 days

0

4

Honda 28421-Z0D-V02

REEL, RECOIL STARTER

Note: Use up to Engine SN 1000002.

$38.99

$

Usually ships in 3-6 days

0

5

Honda 28422-ZG0-W02

RATCHET, STARTER

$9.99

$

In Stock, Qty 8

0

6

Honda 28433-ZG0-W02

GUIDE, RATCHET

$7.49

$

Usually ships in 3-6 days

0

7

Honda 28441-ZW6-003

SPRING, FRICTION

$4.99

$

Usually ships in 3-6 days

0

8

Honda 28442-ZH8-003

SPRING, RECOIL STARTER (Honda Code 3683919).

$18.99

$

In Stock, Qty 10

0

9

Honda 28461-ZDD-003

KNOB, RECOIL STARTER

Note: Use from Engine SN 1000003.

$0.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use up to Engine SN 1000002.

$8.49

$

In Stock, Qty 8

0

10

Honda 28462-Z0D-V03

ROPE, RECOIL STARTER

$7.49

$

Usually ships in 3-6 days

0

11

Honda 28467-Z0D-V02

PLATE, SIDE

$5.99

$

Usually ships in 3-6 days

0

12

Honda 28468-Z0D-V02

PLATE, SLIDE

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90003-ZH8-003

SCREW, SETTING (ENGINE NO.)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 5

0
