GXR120 RT KRWB/A (GCCDT) - Honda Engine, Made in Thailand (SN: GCCDT-2000001 - GCCDT-9999999) AIR CLEANER Parts Diagram

Engine, Made in Thailand

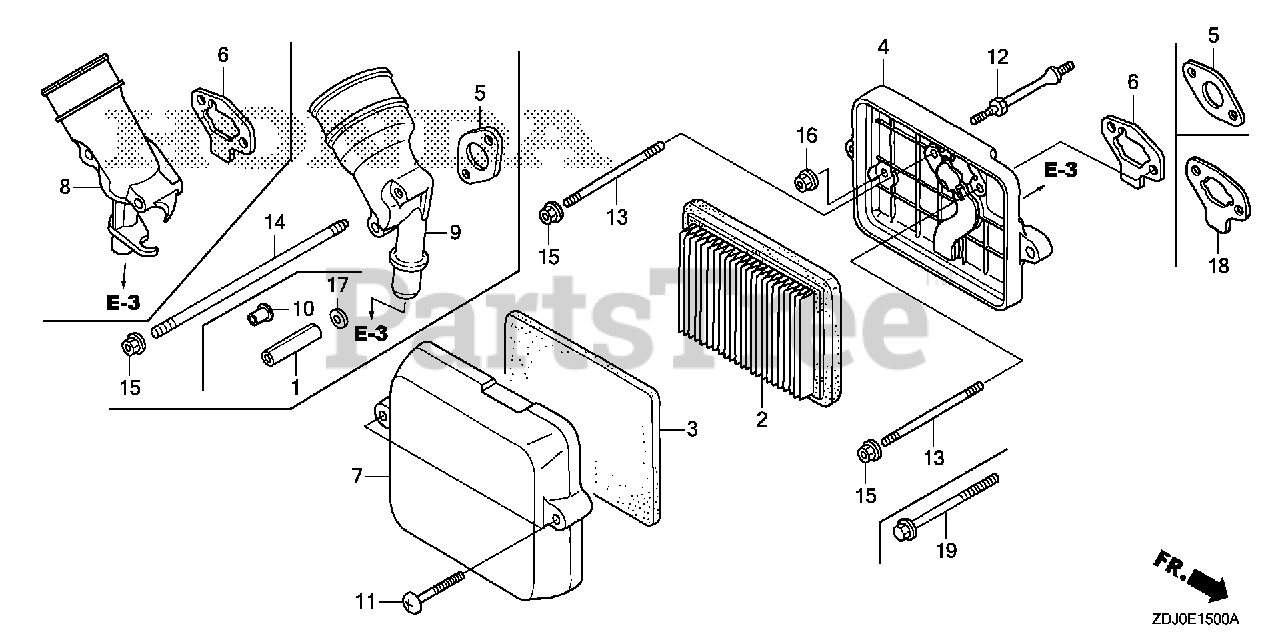

AIR CLEANER Parts Diagram

  • Title
2

Honda 17211-ZL8-023

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (TOYO ROKI) (ENGINE NO.)

$6.49

$

In Stock, Qty 20+

0

4

Honda 17220-Z0D-V02

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

$13.99

$

In Stock, only 1 left!

0

5

Honda 17228-Z0D-V01

GASKET, AIR CLEANER

$2.49

$

In Stock, Qty 13

0

7

Honda 17231-Z4E-S11

COVER, AIR CLEANER

$21.99

$

Usually ships in 3-6 days

0

11

Honda 90011-Z0D-000

BOLT, AIR CLEANER COVER

$1.99

$

In Stock, only 4 left!

0

12

Honda 90041-Z0D-V00

BOLT, STUD

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90042-ZDJ-000

BOLT, STUD (5X85)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
