GXR120 RT KRCA (GCCDT) - Honda Engine, Made in Thailand (SN: GCCDT-2000001 - GCCDT-9999999) CARBURETOR (2) (RAMMER FLOATLESS) Parts Diagram

Engine, Made in Thailand

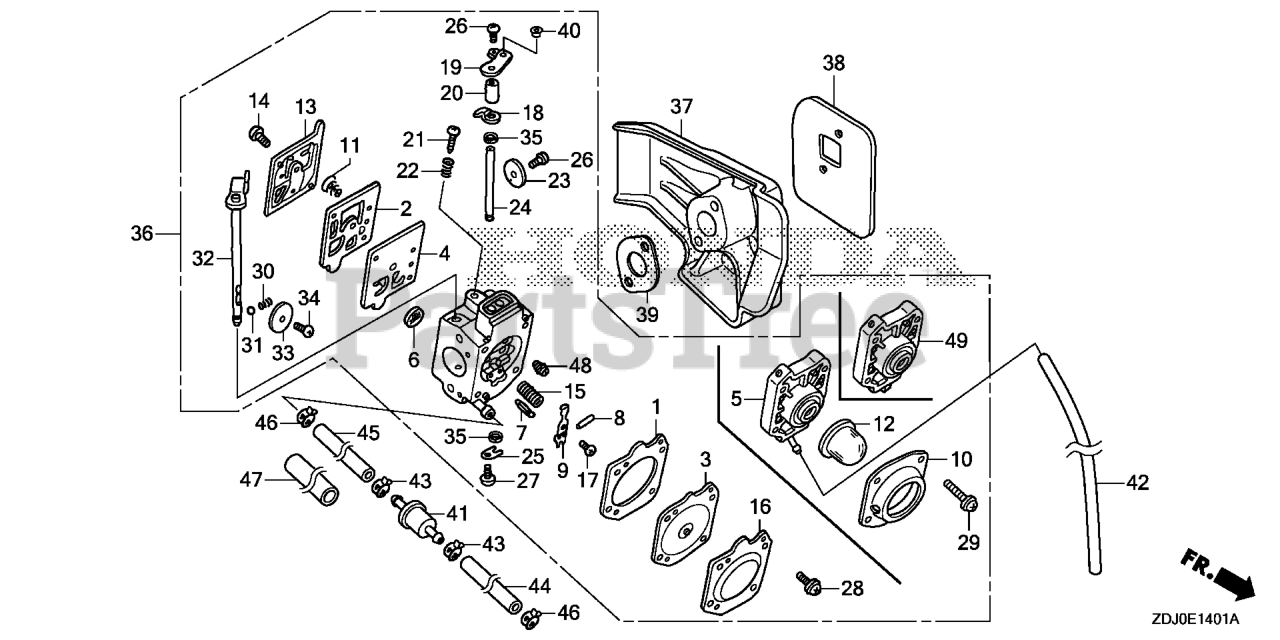

CARBURETOR (2) (RAMMER FLOATLESS) Parts Diagram

  • Title
1

Honda 16010-Z0D-V02

GASKET, METERING DIAPHRAGM (CARBURETOR NO.)

$3.49

$

In Stock, only 1 left!

0

2

Honda 16011-Z0D-V02

GASKET, PUMP

$4.49

$

Usually ships in 3-6 days

0

3

Honda 16013-Z4E-S44

DIAPHRAGM ASSY., METERING (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

4

Honda 16014-Z0D-V02

DIAPHRAGM, PUMP

$8.49

$

Usually ships in 3-6 days

0

5

Honda 16017-Z4E-S32

BODY ASSY., AIR PURGE (CARBURETOR NO.)

$41.99

$

Usually ships in 3-6 days

0

6

Honda 16018-ZM3-004

SCREEN, INLET (CARBURETOR NO.)

$2.99

$

In Stock, only 4 left!

0

7

Honda 16019-ZM3-004

VALVE, INLET NEEDLE

$5.49

$

In Stock, only 1 left!

0

8

Honda 16022-ZM3-014

SEE PART DETAILS - PRI; PIN, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

9

Honda 16023-Z0D-V02

LEVER, METERING

$3.49

$

Usually ships in 3-6 days

0

10

Honda 16026-Z4E-S32

COVER, PRIMER PUMP (CARBURETOR NO.)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 16030-ZM3-004

SPRING, PUMP

$1.99

$

In Stock, Qty 5

0

12

Honda 16032-Z4E-S32

PUMP, PRIMER (CARBURETOR NO.)

$17.99

$

In Stock, only 1 left!

0

13

Honda 16040-Z4E-802

COVER, PUMP (CARBURETOR NO.)

$3.49

$

Usually ships in 3-6 days

0

$2.49

$

Usually ships in 3-6 days

0

15

Honda 16042-Z0D-V02

SPRING (CARBURETOR NO.)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 16044-Z4E-802

SCREW (CARBURETOR NO.)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 16045-Z0D-V02

STOPPER, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16046-Z0D-V73

SEE PART DETAILS - PRI; LEVER, THROTTLE (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 16048-Z0D-V02

SPACER, THROTTLE LEVER

$7.49

$

In Stock, only 1 left!

0

21

Honda 16049-Z4E-S12

SCREW, IDLE ADJUSTING (CARBURETOR NO.)

$5.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

23

Honda 16051-Z4E-S44

VALVE, THROTTLE (CARBURETOR NO.)

$4.99

$

Usually ships in 3-6 days

0

24

Honda 16052-Z0D-V02

SHAFT, THROTTLE (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0

25

Honda 16053-Z0D-V02

CLIP, THROTTLE SHAFT

$3.99

$

Usually ships in 3-6 days

0

26

Honda 16054-Z0D-V02

SCREW, VALVE

$0.99

$

Usually ships in 3-6 days

0

27

Honda 16055-Z0D-V02

SCREW ASSY. (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 16055-Z4E-S32

SCREW ASSY. (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0

$1.99

$

Usually ships in 3-6 days

0

$1.49

$

Usually ships in 3-6 days

0

32

Honda 16058-Z0D-V02

SHAFT ASSY., CHOKE (CARBURETOR NO.)

$28.99

$

Usually ships in 3-6 days

0

33

Honda 16059-Z0D-V03

VALVE, CHOKE (CARBURETOR NO.)

$8.99

$

Usually ships in 3-6 days

0

$0.99

$

Usually ships in 3-6 days

0

35

$1.99

$

Usually ships in 3-6 days

0

36

Honda 16100-ZDJ-813

CARBURETOR ASSY. (HDA-323)

$106.99

$

In Stock, only 2 left!

0

37

Honda 16211-ZDJ-000

INSULATOR, CARBURETOR

$19.99

$

Usually ships in 3-6 days

0

38

Honda 16212-Z0D-V00

GASKET, INSULATOR

$1.99

$

In Stock, only 1 left!

0

39

Honda 16221-Z0D-V00

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 5

0

40

Honda 16552-896-650

COLLAR, LEVER (Honda Code 3507993).

$2.99

$

Usually ships in 3-6 days

0

41

Honda 16910-Z4E-S21

STRAINER, FUEL

$16.99

$

In Stock, only 4 left!

0

43

Honda 90602-Z4E-003

CLAMP, TUBE (D9.4)

$4.49

$

Usually ships in 3-6 days

0

44

Honda 91434-Z4E-813

HOSE, FUEL (4.2X80)

$

$

Not available

45

Honda 91434-Z4E-903

HOSE, FUEL (4.2X330)

$33.99

$

Usually ships in 3-6 days

0

46

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

$3.49

$

In Stock, Qty 8

0

47

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X210)

$

$

Currently unavailable

48

Honda 99101-Z0D-0440

JET (#44)

Note: (Optional)

$9.49

$

Usually ships in 3-6 days

0

48

Honda 99101-Z0D-0460

JET (#46) (CARBURETOR NO.)

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

48

Honda 99101-Z0D-0480

JET (#48) (CARBURETOR NO.)

$9.99

$

Usually ships in 3-6 days

0

48

Honda 99101-Z0D-0500

JET (#50) (CARBURETOR NO.)

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0
