GXH50 U WKE4 (GCAFK) - Honda Engine, Made in Japan (SN: GCAFK-1000001 - GCAFK-9999999) FLYWHEEL + IGNITION COIL Parts Diagram

Engine, Made in Japan

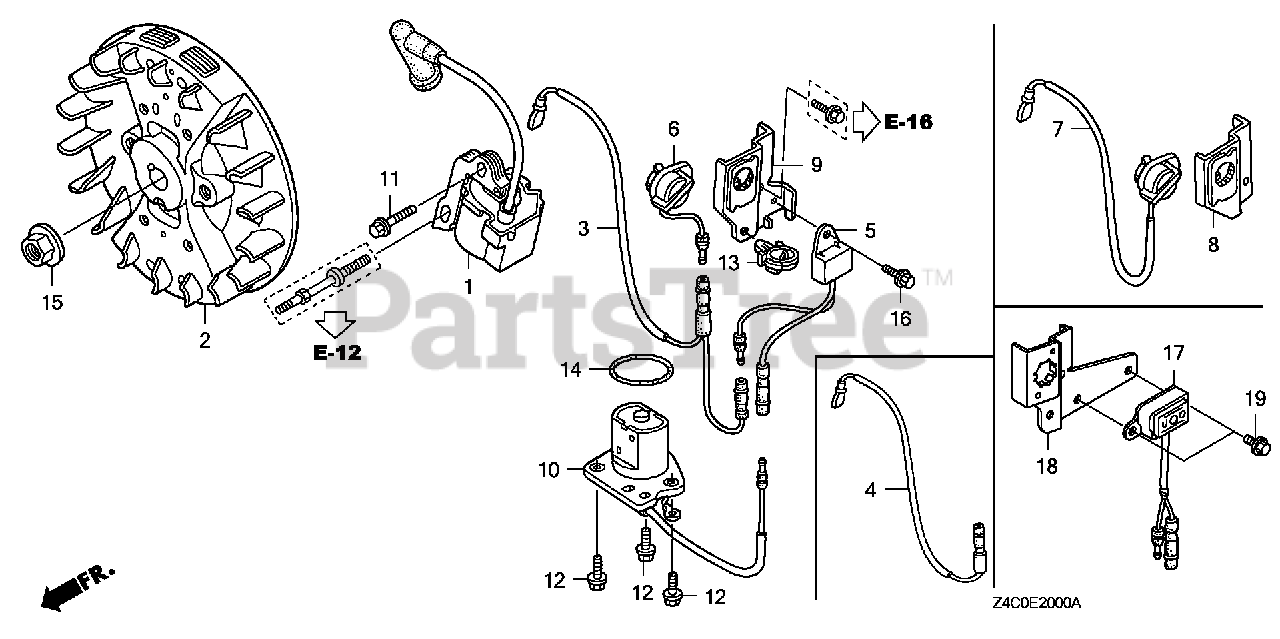

FLYWHEEL + IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZM7-014

COIL ASSY., IGNITION

$49.99

$

In Stock, only 1 left!

0

2

Honda 31110-ZM7-004

FLYWHEEL

$49.99

$

Usually ships in 3-6 days

0

3

Honda 32195-ZM7-800

WIRE, STOP SWITCH

$10.99

$

Usually ships in 3-6 days

0

5

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use up to Engine SN 1049314.

$51.99

$

In Stock, only 1 left!

0

5

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 1049315 to 1138278.

$51.99

$

In Stock, only 1 left!

0

5

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

Note: Use up to Engine SN 1049314.

$51.99

$

In Stock, only 1 left!

0

5

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

Note: Use from Engine SN 1049315 to 1138278.

$51.99

$

In Stock, only 1 left!

0

5

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

Note: Use from Engine SN 1138279.

$51.99

$

In Stock, only 1 left!

0

6

Honda 35120-Z0D-V81

SWITCH ASSY., ENGINE STOP

$19.99

$

In Stock, only 2 left!

0

9

Honda 35124-ZM7-800

BRACKET, STOP SWITCH

$12.99

$

Usually ships in 3-6 days

0

10

Honda 35480-ZM7-802

SWITCH ASSY., OIL LEVEL

$52.99

$

Usually ships in 3-6 days

0

11

Honda 90004-ZC3-000

BOLT, FLANGE (5X20)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90012-896-750

BOLT, FLANGE (5X14)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90684-ZA0-601

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0

14

Honda 91301-ZM7-003

SEE PART DETAILS - PRI; O-RING (34.6X2.5)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

16

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 2 left!

0
