GXH50 U VSW4 (GCAFK) - Honda Engine, Made in Japan (SN: GCAFK-1000001 - GCAFK-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

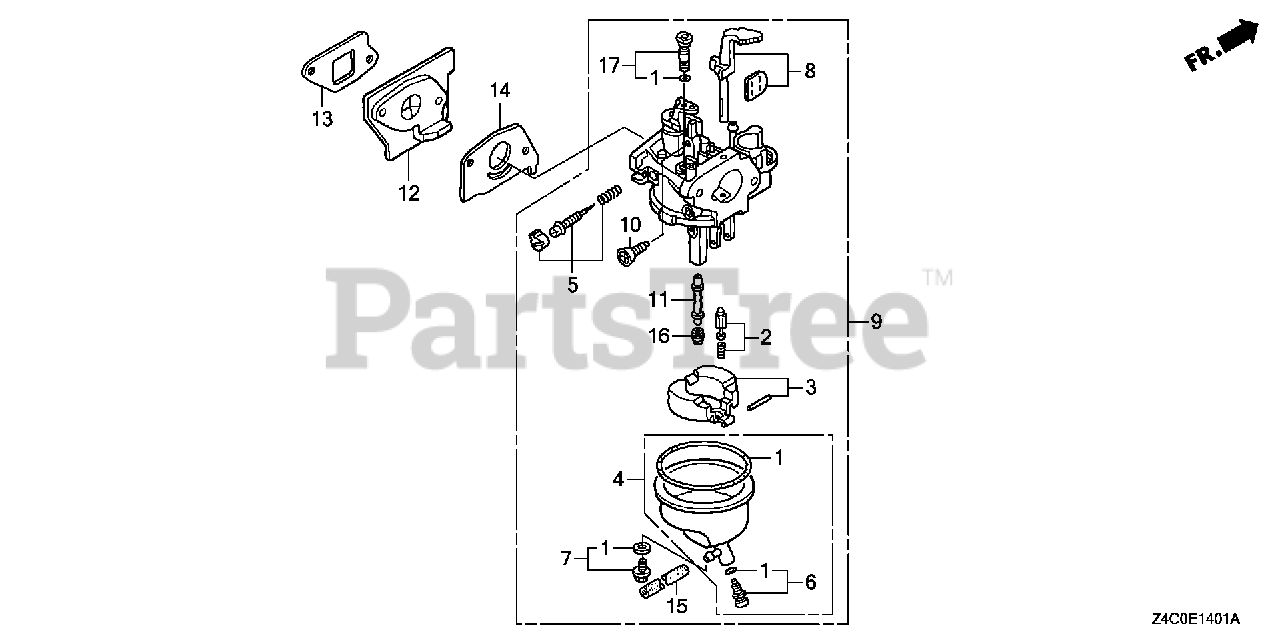

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-ZM7-D01

GASKET SET

$17.99

$

In Stock, only 4 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZM7-003

CHAMBER SET, FLOAT

$61.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZB9-005

SCREW SET, DRAIN

$9.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZW6-611)

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZM7-801

CHOKE SET (CARBURETOR NO.)

Note: Use from Engine SN BF31H B.

$31.99

$

Usually ships in 3-6 days

0

8

Honda 16044-Z0D-003

CHOKE SET (CARBURETOR NO.)

Note: Use up to Engine SN BF31H A.

$30.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZM7-U31

CARBURETOR ASSY. (BF31H A/B)

Note: Use up to Engine SN 1139697.

$67.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z4C-821

CARBURETOR ASSY. (BF31M A)

Note: Use from Engine SN 1139698.

$61.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

12

Honda 16211-ZM7-000

INSULATOR, CARBURETOR

$9.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZM7-000

GASKET, INSULATOR

$2.49

$

In Stock, Qty 5

0

14

Honda 16221-ZG0-801

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 14

0

16

Honda 99101-ZG0-0480

JET, MAIN (#48)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

16

Honda 99101-ZG0-0500

JET, MAIN (#50)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

16

Honda 99101-ZG0-0520

JET, MAIN (#52)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$14.99

$

Usually ships in 3-6 days

0
