GXH50 U SXA (GCAFK) - Honda Engine, Made in Japan (SN: GCAFK-1000001 - GCAFK-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

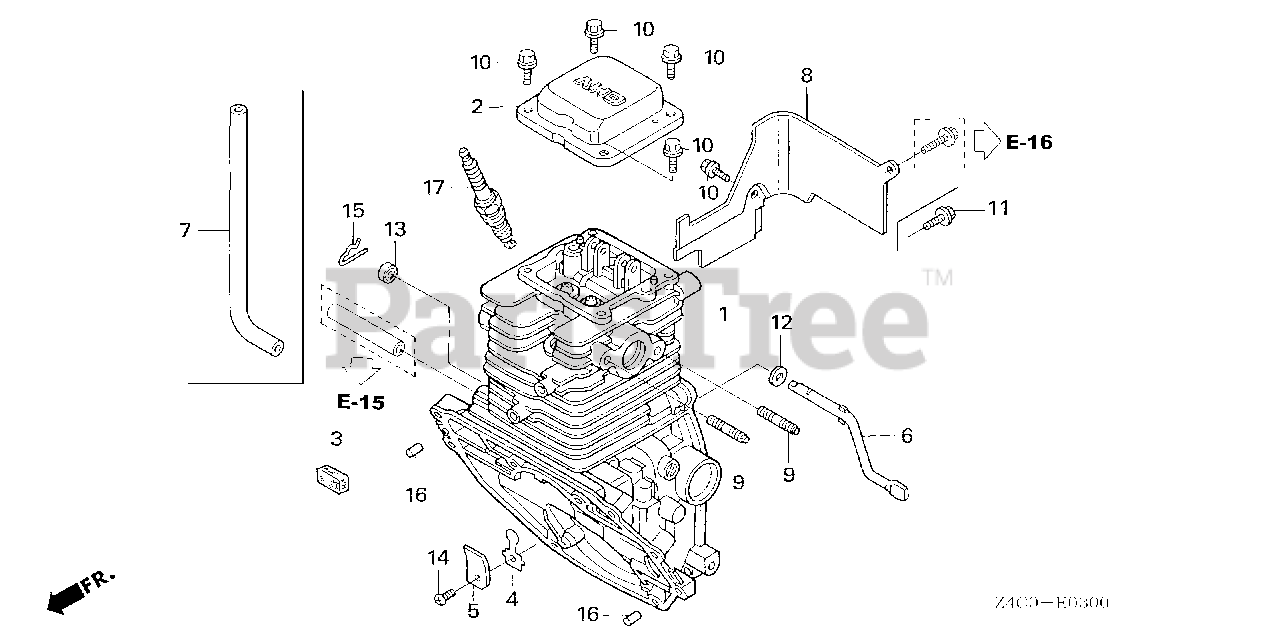

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12100-ZM7-417

CYLINDER

$202.99

$

Usually ships in 3-6 days

0

2

Honda 12311-ZM7-010

SEE PART DETAILS - PRI; COVER, HEAD

$10.99

$

Usually ships in 3-6 days

0

3

Honda 12367-ZE6-010

SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 2794402).

$3.99

$

In Stock, only 1 left!

0

4

Honda 15571-ZM7-003

VALVE, OIL OUTLET

$3.99

$

Usually ships in 3-6 days

0

5

Honda 15572-ZM7-000

PLATE, STOPPER

$2.49

$

In Stock, only 2 left!

0

6

Honda 16541-ZM7-000

SHAFT, GOVERNOR ARM

$4.99

$

In Stock, only 3 left!

0

8

Honda 19631-ZM7-000

SHROUD

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

12

Honda 90443-ZC3-000

WASHER (5.2X9)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91231-ZC3-003

OIL SEAL (5X11X5)

$2.99

$

In Stock, only 2 left!

0

14

Honda 93500-03005-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X5)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 20+

0

16

Honda 96220-60150

ROLLER (6X15)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 98056-54757

SPARK PLUG (U14FSR-UB) (DENSO)

Note: (Optional).

$8.49

$

In Stock, Qty 6

0

17

Honda 98056-54777

SPARK PLUG (CR4HSB) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 13

0

17

Honda 98056-55757

SEE PART DETAILS - SUP; SPARK PLUG (U16FSR-UB) (DENSO)
(Superseded to 98056-55777)

$4.49

$

In Stock, Qty 20+

0

17

Honda 98056-55777

SEE PART DETAILS - PRI; SPARK PLUG (CR5HSB)

$4.49

$

In Stock, Qty 20+

0
