GXH50 QHA (GCAL) - Honda Engine, Made in Japan (SN: GCAL-1000001 - GCAL-1299999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

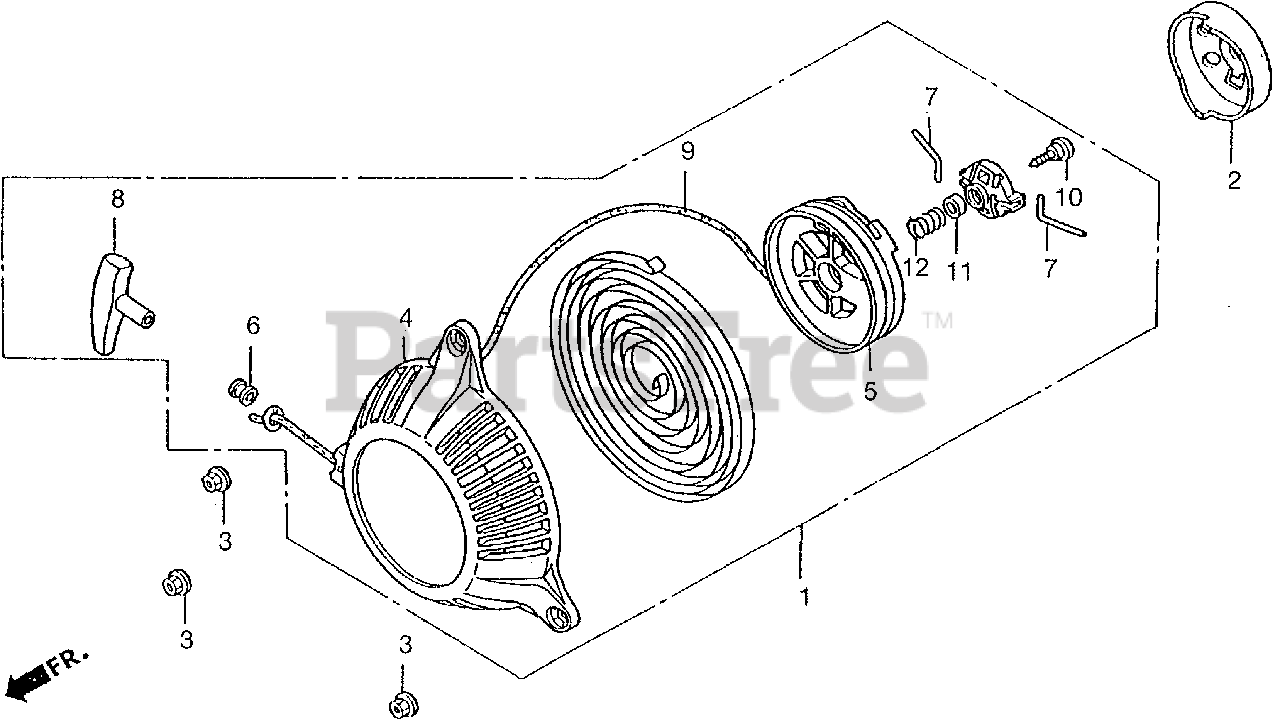

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZM7-003

STARTER ASSY., RECOIL

Note: (Honda Code 5988795).

$39.99

$

In Stock, only 2 left!

0

2

Honda 28451-ZM7-003

PULLEY, RECOIL STARTER

Note: (Honda Code 5988829).

$13.99

$

Usually ships in 3-6 days

0

3

Honda 94050-05000

NUT, FLANGE (5MM)

Note: (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

4

Honda 28414-ZM7-003

CASE, RECOIL STARTER

Note: (Honda Code 5988803).

$23.99

$

Usually ships in 3-6 days

0

5

Honda 28421-ZM7-003

REEL, RECOIL STARTER

Note: (Honda Code 5988811).

$8.49

$

In Stock, only 1 left!

0

6

Honda 28433-ZM3-003

GUIDE, ROPE

Note: (Honda Code 5383898).

$2.49

$

In Stock, only 4 left!

0

7

Honda 28459-ZM7-003

SWINGARM

Note: (Honda Code 5988837).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28461-ZM3-003

KNOB, RECOIL STARTER

Note: (Honda Code 5383948).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 28462-ZM7-003

ROPE, RECOIL STARTER

Note: (Honda Code 5988845).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 90012-ZM3-003

SCREW, SETTING

Note: (Honda Code 5384482).

$1.99

$

Usually ships in 3-6 days

0

11

Honda 91504-ZM7-003

COLLAR

Note: (Honda Code 5989017).

$1.49

$

Usually ships in 3-6 days

0

12

Honda 28404-968-004

SPRING, FRICTION

Note: (Honda Code 1507904).

$4.99

$

Usually ships in 3-6 days

0
