GXH50 QHA (GCAL) - Honda Engine, Made in Japan (SN: GCAL-1000001 - GCAL-1299999) MUFFLER Parts Diagram

Engine, Made in Japan

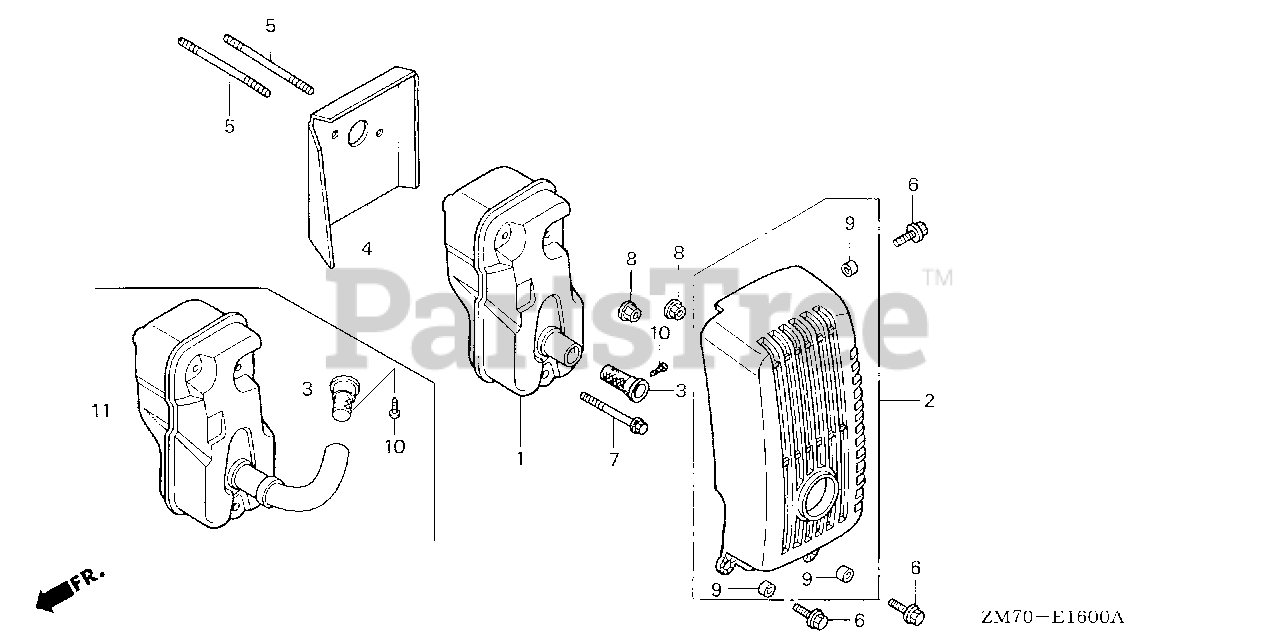

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZM7-003

MUFFLER
(Superseded to 18310-ZM7-801)

$35.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZM7-801

MUFFLER

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

3

Honda 18350-ZM7-801

ARRESTER, SPARK

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 18515-ZM7-000

GUIDE, AIR

$5.49

$

Usually ships in 3-6 days

0

5

Honda 90002-ZM7-000

BOLT, STUD (5X55)

$2.49

$

Usually ships in 3-6 days

0

7

Honda 90103-P4V-010

BOLT, FLANGE (5X35)

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90136-SM4-901

NUT, SELF-LOCK (5MM)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 93903-24110

SCREW, TAPPING (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
