GXE2.0 H S3 (GMABK) - Honda Electric Engine, Made in Japan (SN: GMABK-1000001 - GMABK-9999999) FRAME Parts Diagram

Electric Engine, Made in Japan

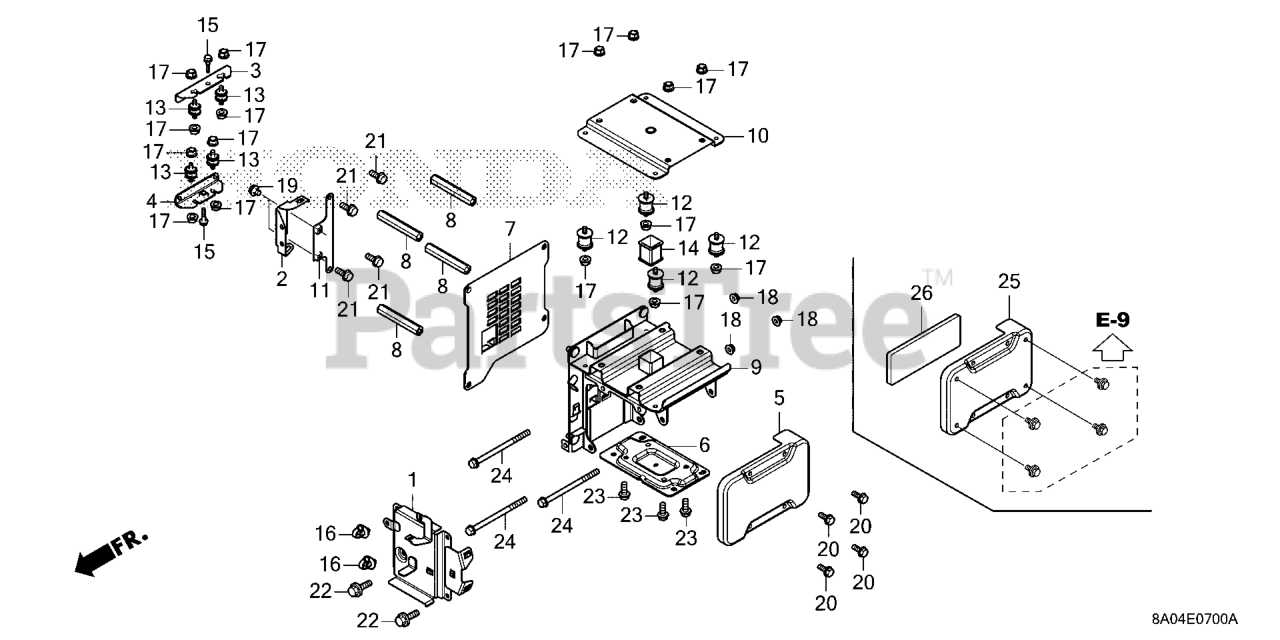

FRAME Parts Diagram

  • Title

1

Honda 1F210-8A0-600

BRACKET A, HARNESS

$64.99

$

Usually ships in 3-6 days

0

2

Honda 1F221-8A0-600

BRACKET B, HARNESS

$17.99

$

Usually ships in 3-6 days

0

3

Honda 60102-8A0-600

STAY A, PDU

$11.99

$

Usually ships in 3-6 days

0

4

Honda 60103-8A0-600

STAY B, PDU

$10.99

$

Usually ships in 3-6 days

0

6

Honda 60106-8A0-600ZA

BASE, MOTOR *NH105*

$40.99

$

Usually ships in 3-6 days

0

7

Honda 60108-8A0-600

STAY C, PDU

$41.99

$

Usually ships in 3-6 days

0

8

Honda 60109-8A0-600

COLLAR, SPECIAL

$14.99

$

Usually ships in 3-6 days

0

9

Honda 60110-8A0-600

FRAME

$195.99

$

Usually ships in 3-6 days

0

10

Honda 60121-8A0-600

FRAME, BATTERY

$20.99

$

Usually ships in 3-6 days

0

11

Honda 60122-8A0-600

STAY, BRACKET

$8.49

$

Usually ships in 3-6 days

0

12

Honda 60811-8A0-600

RUB, BATTERY MOUNT

$7.99

$

Usually ships in 3-6 days

0

13

Honda 60820-8A0-600

RUBBER, MOUNT

$12.99

$

Usually ships in 3-6 days

0

14

Honda 60831-8A0-600

RUBBER A, STOPPER

$6.49

$

Usually ships in 3-6 days

0

15

Honda 90001-8A0-000

BOLT, STOPPER (6X25)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

19

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06016-07

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

22

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2374759).

$0.99

$

Usually ships in 3-6 days

0

23

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477).

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95701-08125-07

BOLT, FLANGE (8X125)

$6.49

$

Usually ships in 3-6 days

0

25

Honda 60104-8A0-610ZA

FRAME, SIDE *NH1*

$36.99

$

Usually ships in 3-6 days

0

26

Honda 60802-8A0-610

SHEET, SILENT

$5.99

$

Usually ships in 3-6 days

0
