GXE2.0 H S3 (GMABK) - Honda Electric Engine, Made in Japan (SN: GMABK-1000001 - GMABK-9999999) CONTROL BOX Parts Diagram

Electric Engine, Made in Japan

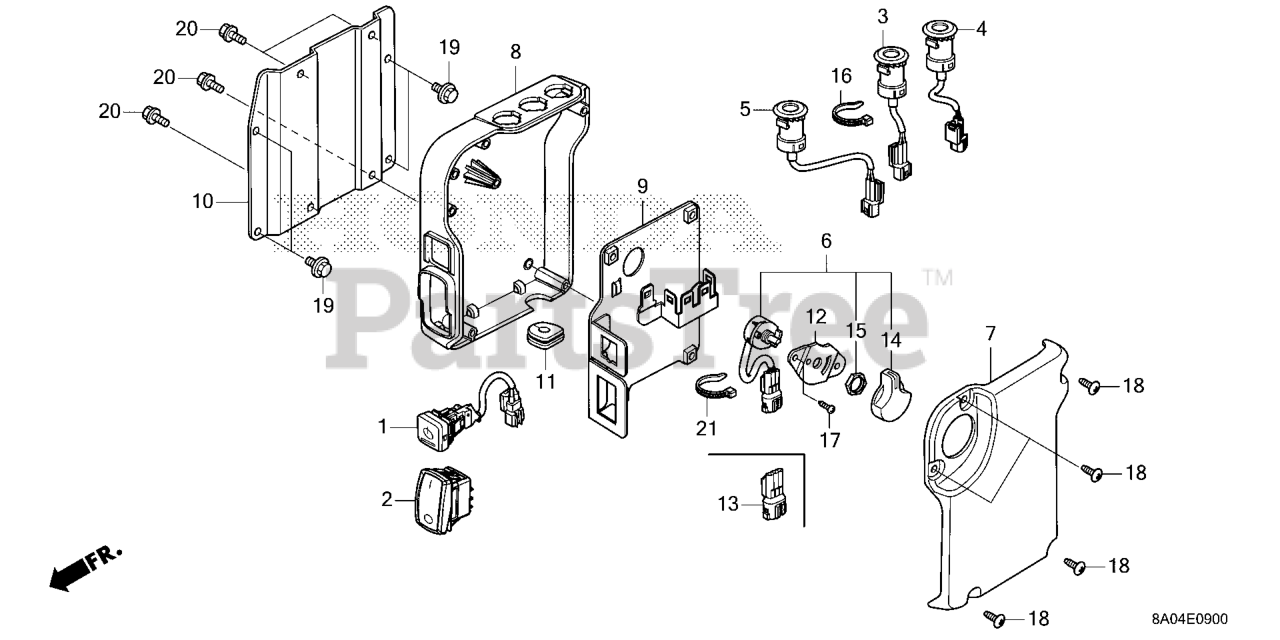

CONTROL BOX Parts Diagram

  • Title

1

Honda 1N311-8A0-003

SWITCH ASSY., POWER

$32.99

$

Usually ships in 3-6 days

0

2

Honda 1N330-8A0-003

SWITCH ASSY., START

$61.99

$

Usually ships in 3-6 days

0

3

Honda 1N421-8A0-003

LAMP, INDICATOR

$39.99

$

Usually ships in 3-6 days

0

4

Honda 1N422-8A0-003

LAMP, INDICATOR

$39.99

$

Usually ships in 3-6 days

0

5

Honda 1N423-8A0-003

LAMP, INDICATOR

$39.99

$

Usually ships in 3-6 days

0

6

Honda 1N440-8A0-003

VOLUME ASSY., SPEED

$163.99

$

Usually ships in 3-6 days

0

7

Honda 1N451-8A0-610ZA

COVER, CONTL *NH1*

$46.99

$

Usually ships in 3-6 days

0

8

Honda 1N452-8A0-610ZA

CASE, CONTL *NH1*

$115.99

$

Usually ships in 3-6 days

0

9

Honda 1N453-8A0-610

BRACKET, CONTL BOX

$75.99

$

Usually ships in 3-6 days

0

10

Honda 1N454-8A0-610ZA

BRKT, CASE MTG *NH1*

$35.99

$

Usually ships in 3-6 days

0

11

Honda 1N456-8A0-610

GROMMET, CONTL BOX

$12.99

$

Usually ships in 3-6 days

0

12

Honda 1N457-8A0-610

BRKT, SPEED VOLUME

$5.99

$

Usually ships in 3-6 days

0

14

Honda 35571-ZDX-003

KNOB

$33.99

$

Usually ships in 3-6 days

0

15

Honda 35572-Z2E-004

NUT

$3.99

$

Usually ships in 3-6 days

0

16

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 93913-25310

SCREW, TAPPING (5X14) (PO)

$0.99

$

In Stock, Qty 8

0

18

Honda 93913-25480

SCREW, TAPPING (5X16) (PO)

$1.49

$

In Stock, Qty 10

0

19

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0

20

Honda 95701-06014-07

BOLT, FLANGE (6X14)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.99

$

Usually ships in 3-6 days

0
