GX690 RH VXED/A (GCAPH) - Honda Engine, Made in China (SN: GCAPH-2000001 - GCAPH-9999999) CRANKCASE COVER Parts Diagram

Engine, Made in China

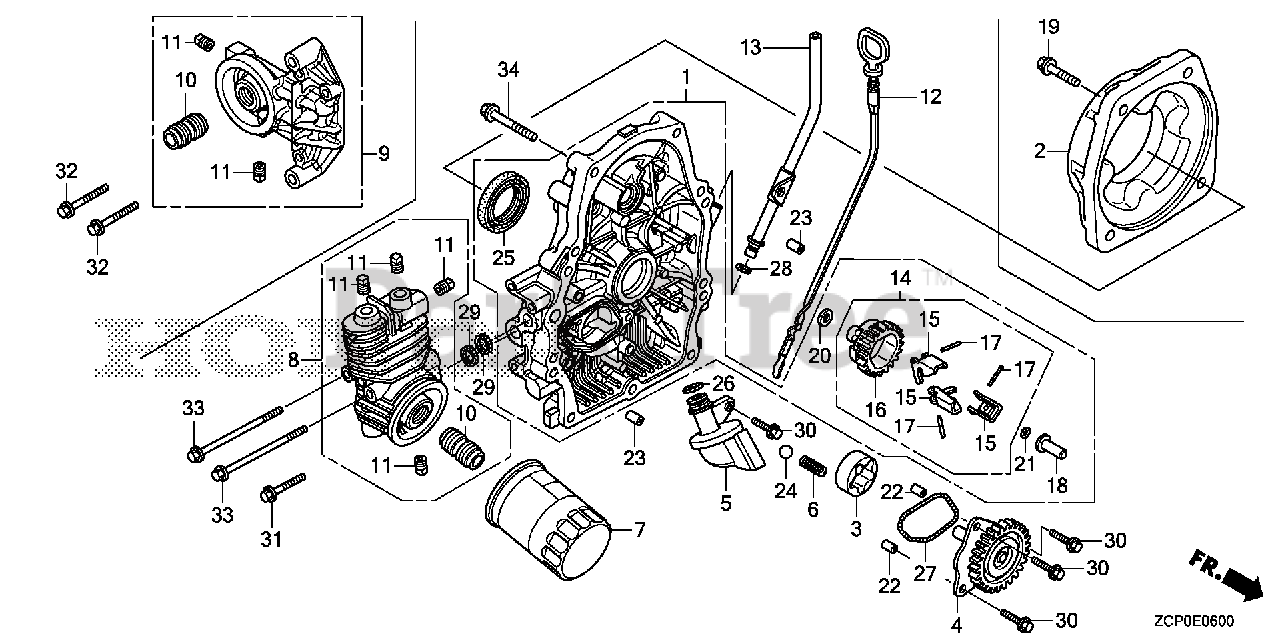

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z6L-010

COVER ASSY., CRANKCASE (NOT AVAILABLE)

$595.99

$

Usually ships in 3-6 days

0

3

Honda 15133-Z6L-000

ROTOR, OIL PUMP (OUTER)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 15140-Z6L-010

SEE PART DETAILS - PRI; GEAR, OIL PUMP

$94.99

$

In Stock, only 1 left!

0

5

Honda 15220-Z6L-000

STRAINER, OIL

$56.99

$

Usually ships in 3-6 days

0

6

Honda 15232-Z6L-000

SPRING, RELIEF VALVE

$1.99

$

Usually ships in 3-6 days

0

7

Honda 15400-RTA-003

FILTER, OIL
(Superseded to 15400-PLM-A01)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 15410-Z6L-000

BASE, OIL FILTER

$244.99

$

Usually ships in 3-6 days

0

10

Honda 15423-Z6L-000

HOLDER, OIL FILTER

$4.99

$

Usually ships in 3-6 days

0

11

Honda 15424-Z6L-000

BOLT, SEALING

$6.49

$

Usually ships in 3-6 days

0

12

Honda 15655-Z6L-000

GAUGE, OIL LEVEL

$15.99

$

In Stock, only 3 left!

0

13

Honda 15665-Z6L-000

PIPE, OIL LEVEL

$17.99

$

In Stock, only 1 left!

0

14

Honda 16510-Z6L-010

SEE PART DETAILS - PRI; GOVERNOR ASSY.

$23.99

$

In Stock, only 1 left!

0

15

Honda 16511-Z6L-310

SEE PART DETAILS - PRI; WEIGHT, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

16

Honda 16512-Z6L-310

SEE PART DETAILS - PRI; HOLDER, GOVERNOR WEIGHT

$13.99

$

Usually ships in 3-6 days

0

17

Honda 16513-Z6L-000

PIN, GOVERNOR WEIGHT

$1.99

$

In Stock, only 4 left!

0

18

Honda 16531-Z6L-000

SLIDER, GOVERNOR

$9.49

$

In Stock, Qty 12

0

20

Honda 90403-Z6L-000

WASHER (6X16)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

22

Honda 90707-Z6L-000

PIN, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90708-Z6L-000

PIN, DOWEL (8X14)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90902-Z6L-000

BALL, STEEL (#15) (15/32)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 91202-Z6L-003

OIL SEAL (38X58X9)

$8.99

$

In Stock, only 2 left!

0

26

Honda 91301-Z6L-003

O-RING (14.8X2.4)

$2.99

$

In Stock, only 3 left!

0

27

Honda 91302-Z6L-003

O-RING, OIL PUMP

$4.49

$

In Stock, Qty 7

0

28

Honda 91302-GE0-000

O-RING (8.8X1.9)

$5.49

$

In Stock, only 2 left!

0

29

Honda 91308-Z6L-003

GASKET, OIL PASSAGE

$2.99

$

In Stock, Qty 16

0

30

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 6

0

31

Honda 95701-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2105849).

$2.49

$

In Stock, Qty 7

0

33

Honda 95701-06090-00

BOLT, FLANGE (6X90)

$2.99

$

Usually ships in 3-6 days

0

34

Honda 95701-08045-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 2533859).

$1.99

$

In Stock, Qty 20+
