GX690 RH TXF2 (GCAPH) - Honda Engine, Made in China (SN: GCAPH-1000001 - GCAPH-1999999) STARTER MOTOR Parts Diagram

Engine, Made in China

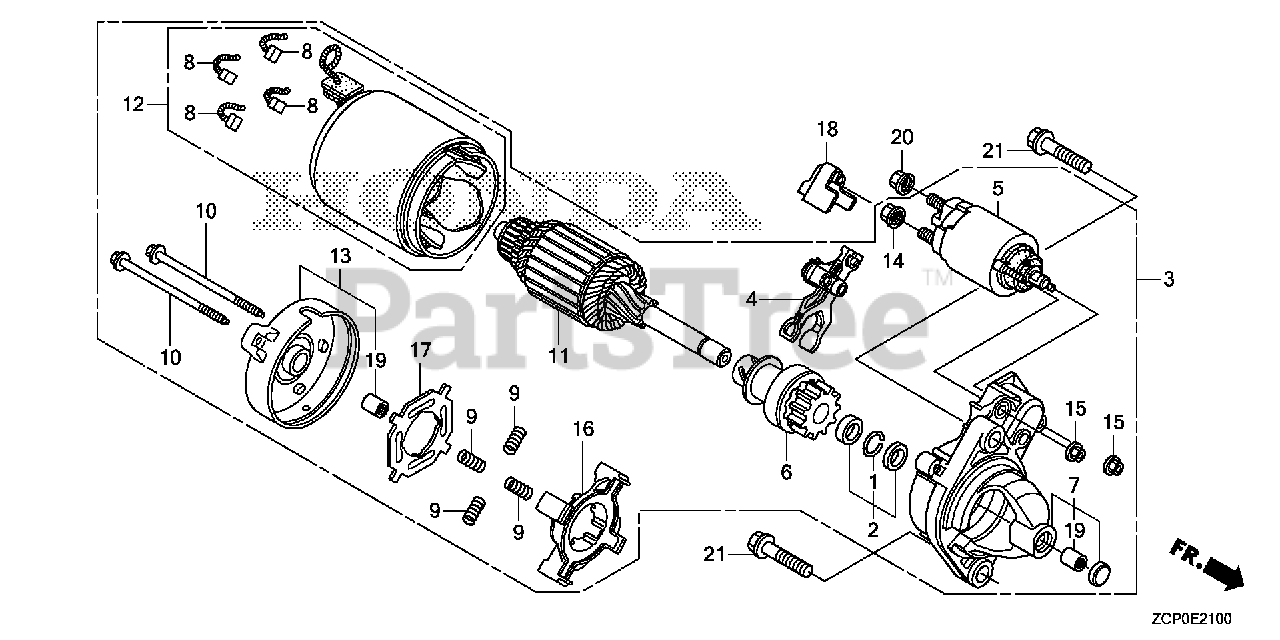

STARTER MOTOR Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING, SNAP (DENSO) (Honda Code 3508322).

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

SEE PART DETAILS - PRI; COLLAR SET, CLUTCH STOP

$23.99

$

Usually ships in 3-6 days

0

3

Honda 31200-Z6L-003

STARTER MOTOR ASSY.

$415.99

$

Usually ships in 3-6 days

0

4

Honda 31203-PH9-004

LEVER, PINION DRIVE (Honda Code 4840831).

$44.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZJ1-H02

SEE PART DETAILS - PRI; SWITCH ASSY., MAGNET

$217.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZE9-H01

CLUTCH, OVERRUNNING

$137.99

$

Usually ships in 3-6 days

0

7

Honda 31208-Z6L-003

HOUSING, DRIVE SIDE

$122.99

$

Usually ships in 3-6 days

0

8

Honda 31211-PH9-004

BRUSH (Honda Code 3620366).

$21.99

$

Usually ships in 3-6 days

0

9

Honda 31212-PH9-004

SPRING, BRUSH (Honda Code 3508439).

$7.99

$

Usually ships in 3-6 days

0

10

Honda 31214-PH9-004

BOLT, THROUGH (Honda Code 3508454).

$12.99

$

Usually ships in 3-6 days

0

11

Honda 31217-Z0A-003

ARMATURE

$159.99

$

Usually ships in 3-6 days

0

12

Honda 31218-P64-N01

SEE PART DETAILS - PRI; YOKE

$356.99

$

Usually ships in 3-6 days

0

13

Honda 31219-Z6L-003

FRAME, COMMUTATOR END

$63.99

$

Usually ships in 3-6 days

0

14

Honda 31220-PH9-004

NUT, HEX. (8MM) (Honda Code 3508470).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 31223-PA0-006

NUT, FLANGE (5MM) (Honda Code 0839688).

$4.99

$

Usually ships in 3-6 days

0

16

Honda 31231-PH9-004

HOLDER, BRUSH (Honda Code 3508496).

$67.99

$

Usually ships in 3-6 days

0

17

Honda 31233-PH9-004

INSULATOR, BRUSH HOLDER (Honda Code 3508504).

$41.99

$

Usually ships in 3-6 days

0

18

Honda 31234-Z6L-000

COVER, TERMINAL

$5.49

$

Usually ships in 3-6 days

0

19

Honda 91002-ZG4-801

BEARING A (Honda Code 3509684).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 94070-08080

NUT-WASHER (8MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 95701-10040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X40)

$1.99

$

In Stock, only 4 left!

0
