GX690 RH TDCC/B (GCAPH) - Honda Engine, Made in China (SN: GCAPH-1000001 - GCAPH-9999999) IGNITION COIL Parts Diagram
Engine, Made in China

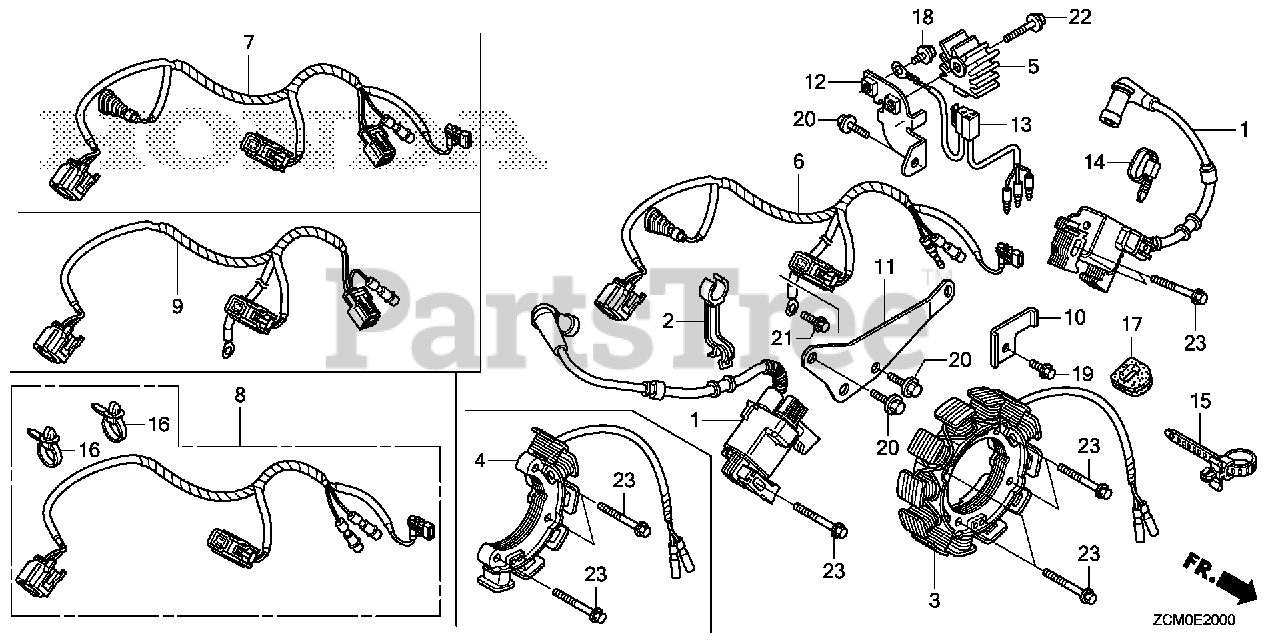

IGNITION COIL Parts Diagram
Honda 30500-Z6L-043
SEE PART DETAILS - PRI; COIL ASSY., IGNITION
$170.99
$
Usually ships in 3-6 days
Honda 30551-Z6L-000
CLAMP, IGNITION WIRE
$5.49
$
Usually ships in 3-6 days
Honda 31630-Z6L-003
COIL ASSY., CHARGE (17A)
$239.99
$
In Stock, only 1 left!
Honda 32110-Z6L-000
WIRE HARNESS ASSY., ENGINE
$68.99
$
Usually ships in 3-6 days
Honda 32114-Z6L-000
BRACKET, HARNESS
$2.99
$
Usually ships in 3-6 days
Honda 90650-KV6-003
BAND, WIRE (95MM)
$4.49
$
Usually ships in 3-6 days
Honda 90672-SB2-003
STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)
$7.49
$
Usually ships in 3-6 days
Honda 91601-Z6L-000
GROMMET, CORD
$3.99
$
Usually ships in 3-6 days
Honda 95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.
$2.49
$
In Stock, Qty 20+
Honda 95701-06032-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2105856).
$2.49
$
In Stock, Qty 5
