GX690 R TXF2 (GCBGK) - Honda Engine, Made in Japan (SN: GCBGK-1000001 - GCBGK-9999999) MUFFLER (HIGH-R.) Parts Diagram

Engine, Made in Japan

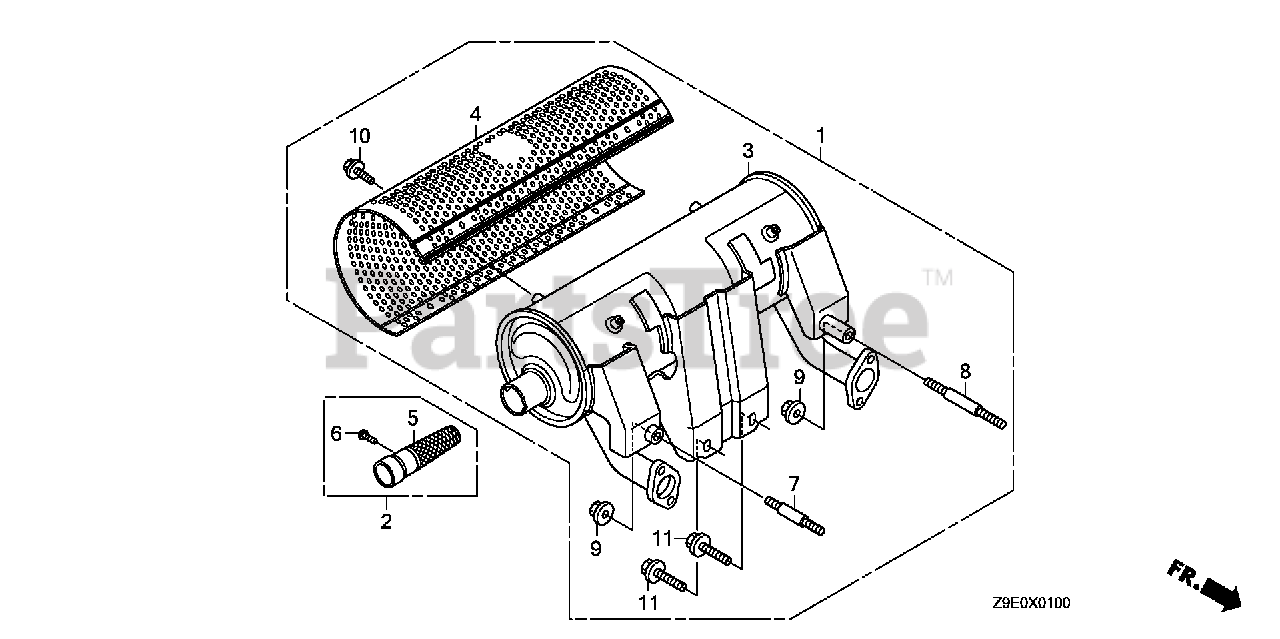

MUFFLER (HIGH-R.) Parts Diagram

  • Title

1

Honda 06183-Z6L-020

MUFFLER KIT (HIGH-R)

Note: (Optional).

$561.99

$

Usually ships in 3-6 days

0

2

Honda 06185-Z6L-010

SEE PART DETAILS - PRI; ARRESTER KIT (HIGH)

Note: (Optional).

$58.99

$

Usually ships in 3-6 days

0

3

Honda 18310-Z6L-003

SEE PART DETAILS - SUP; MUFFLER (HIGH-R)
(Superseded to 18310-Z6L-013)

Note: (Optional).

$489.99

$

Usually ships in 3-6 days

0

3

Honda 18310-Z6L-013

SEE PART DETAILS - PRI; MUFFLER (HIGH-R)

Note: (Optional).

$489.99

$

Usually ships in 3-6 days

0

4

Honda 18321-ZJ1-010

PROTECTOR, MUFFLER (HIGH) (FUTABA)

Note: (Optional).

$60.99

$

Usually ships in 3-6 days

0

5

Honda 18355-ZJ1-010

ARRESTER, SPARK

Note: (Optional).

$60.99

$

Usually ships in 3-6 days

0

6

Honda 90007-Z6L-000

SCREW, TAPPING (5X8)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

7

Honda 92900-08045-0B

BOLT, STUD (8X45)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

8

Honda 92900-08060-0B

BOLT, STUD (8X60)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 94050-08000

NUT, FLANGE (8MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

10

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: (Optional).

$3.49

$

In Stock, only 2 left!

0

11

Honda 95701-08020-00

BOLT, FLANGE (8X20)

Note: (Optional).

$2.49

$

In Stock, only 1 left!

0
