GX670 VXC2/A (GDACM) - Honda Engine, Made in Japan (SN: GDACM-1010001 - GDACM-9999999) CONTROL (4) Parts Diagram

Engine, Made in Japan

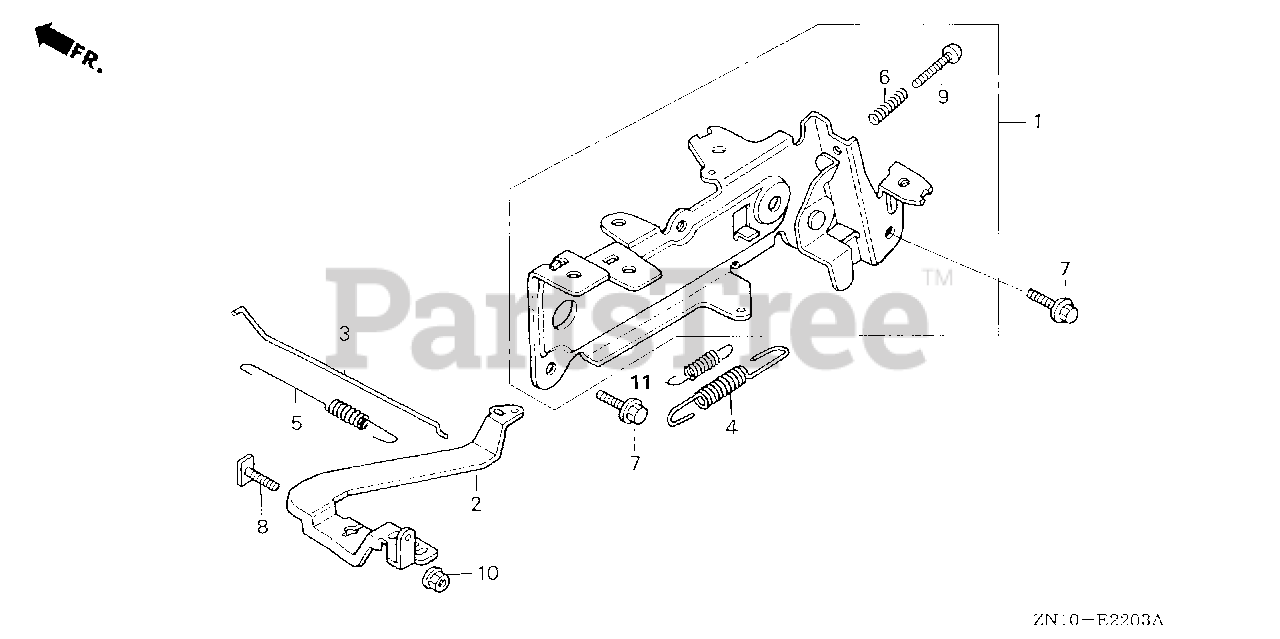

CONTROL (4) Parts Diagram

  • Title
1

Honda 16500-ZJ1-930

CONTROL ASSY. (GENE)

$88.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZJ1-840

ARM, GOVERNOR (Honda Code 6224414).

$16.99

$

Usually ships in 3-6 days

0

3

Honda 16555-ZN2-000

ROD, GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

4

Honda 16561-ZN1-830

SPRING, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16562-ZN2-010

SPRING, THROTTLE RETURN

$4.49

$

In Stock, only 1 left!

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.49

$

In Stock, Qty 6

0

7

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

8

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM (Honda Code 2560852).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05035-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X35) (Honda Code 0331405).

$1.49

$

In Stock, only 3 left!

0

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

11

Honda 16534-ZN1-000

SEE PART DETAILS - SUP; SPRING, STARTER
(Superseded to 16534-ZN1-010)

Note: Use up to Engine SN 1010925.

$2.99

$

In Stock, only 1 left!

0

11

Honda 16534-ZN1-010

SEE PART DETAILS - PRI; SPRING, STARTER

$2.99

$

In Stock, only 1 left!

0
