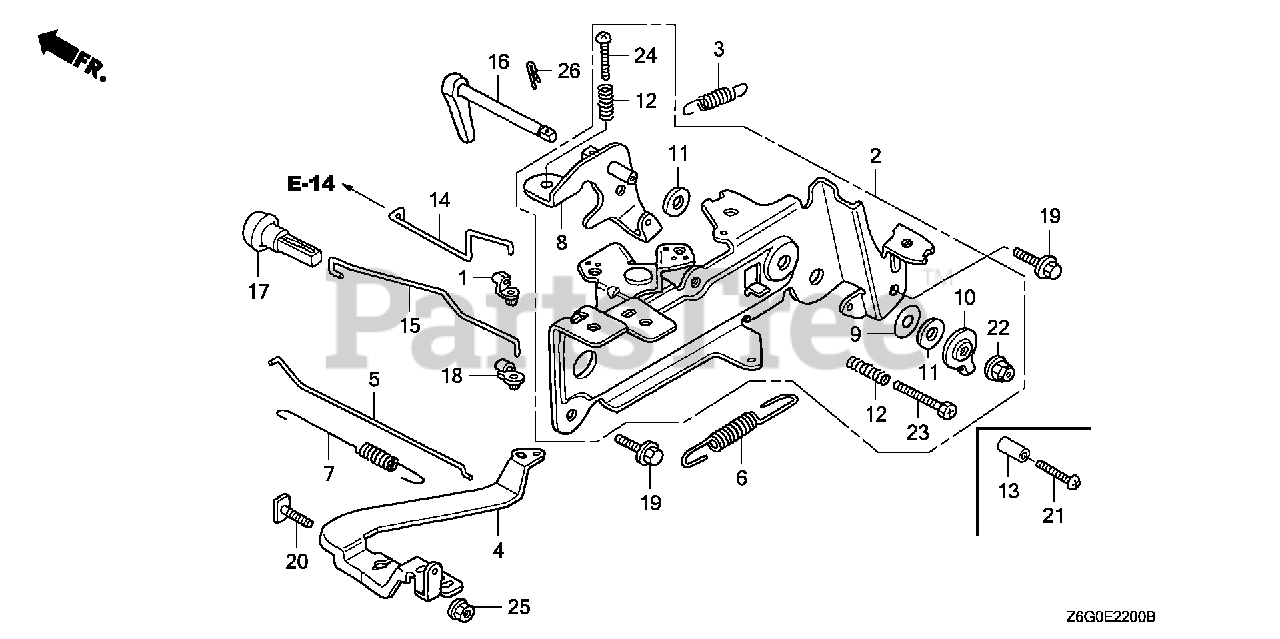

GX670 U TXA2 (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) CONTROL (1) Parts Diagram

Engine, Made in Japan

CONTROL (1) Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD

$1.49

$

Usually ships in 3-6 days

0

2

Honda 16500-ZJ1-851

SEE PART DETAILS - PRI; CONTROL ASSY.

$88.99

$

Usually ships in 3-6 days

0

3

Honda 16534-ZN1-000

SEE PART DETAILS - SUP; SPRING, STARTER
(Superseded to 16534-ZN1-010)

Note: Use up to Engine SN 1002449.

$2.99

$

In Stock, only 1 left!

0

3

Honda 16534-ZN1-010

SEE PART DETAILS - PRI; SPRING, STARTER

$2.99

$

In Stock, only 1 left!

0

4

Honda 16551-ZJ1-840

ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

5

Honda 16555-ZN1-000

ROD, GOVERNOR

$5.99

$

Usually ships in 3-6 days

0

6

Honda 16561-ZN1-800

SPRING, GOVERNOR (MANUAL)

$4.99

$

In Stock, Qty 8

0

7

Honda 16562-ZN1-000

SPRING, THROTTLE RETURN

$3.99

$

Usually ships in 3-6 days

0

8

Honda 16570-ZJ1-851

ARM, CONTROL

$

$

Not available

9

Honda 16574-883-300

SPRING, LEVER

$4.49

$

In Stock, only 1 left!

0

10

Honda 16575-ZJ1-850

WASHER, CONTROL ARM

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16576-883-300

SPACER, CONTROL LEVER

$5.49

$

Usually ships in 3-6 days

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

14

Honda 16611-ZN1-000

ROD, CHOKE CONTROL

$6.99

$

In Stock, only 1 left!

0

15

Honda 16628-ZJ1-850

ROD, CHOKE KNOB

$7.99

$

Usually ships in 3-6 days

0

16

Honda 17850-ZJ1-850

LEVER ASSY., THROTTLE

$60.99

$

In Stock, only 1 left!

0

17

Honda 17951-921-030

KNOB, CHOKE

$14.99

$

Usually ships in 3-6 days

0

18

Honda 17957-ZV4-000

BUSH, LINKAGE

$2.49

$

In Stock, Qty 6

0

19

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

20

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

23

Honda 92301-05025-0A

BOLT, RECESSED (5X25)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93500-05025-0A

SCREW, PAN (5X25)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

26

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0
