GX670 U BDW (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) FUEL PUMP Parts Diagram

Engine, Made in Japan

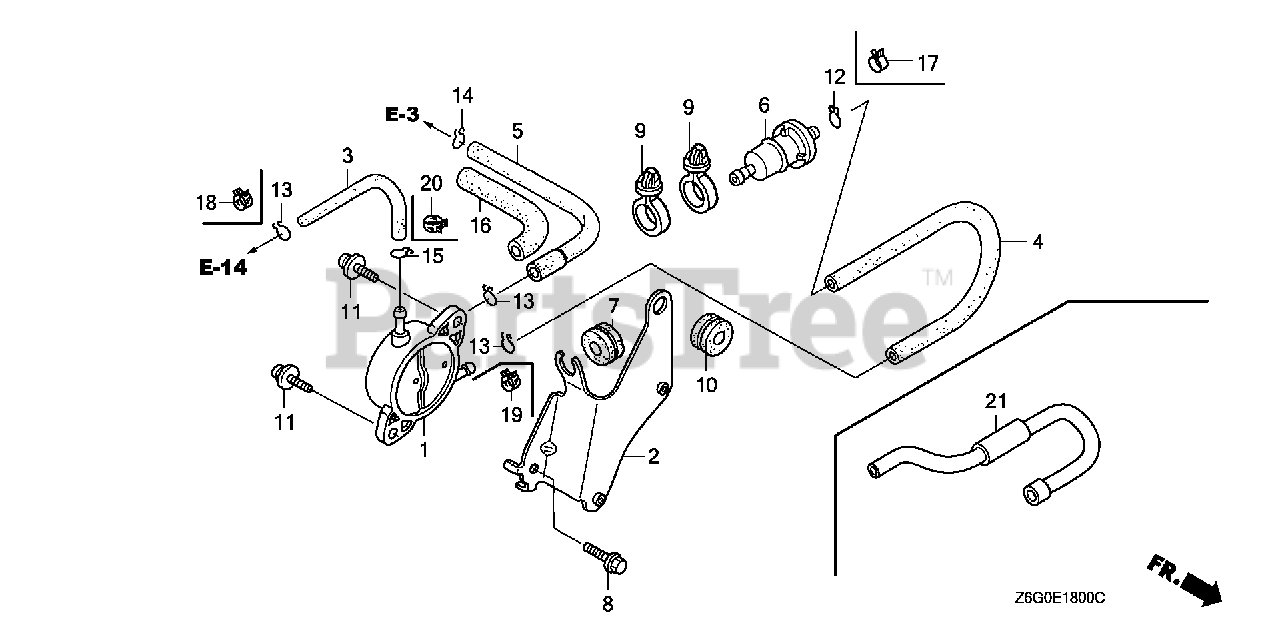

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$99.99

$

Usually ships in 3-6 days

0

2

Honda 16711-ZJ1-840

STAY, FUEL PUMP (Honda Code 6224513).

$17.99

$

Usually ships in 3-6 days

0

3

Honda 16851-ZN1-000

TUBE, FUEL

Note: Use up to Engine SN 1004575.

$9.49

$

In Stock, only 1 left!

0

3

Honda 16851-Z6G-013

TUBE, FUEL (FKM)
(Superseded to 16851-Z6G-023)

Note: Use from Engine SN 1004576 to 1050818.

$29.99

$

Usually ships in 3-6 days

0

3

Honda 16851-Z6G-013

TUBE, FUEL (FKM)
(Superseded to 16851-Z6G-023)

Note: Use from Engine SN 1050819.

$29.99

$

Usually ships in 3-6 days

0

4

Honda 16852-ZJ1-840

TUBE B, FUEL (Honda Code 6224562).

Note: Use up to Engine SN 1004575.

$7.99

$

In Stock, only 1 left!

0

4

Honda 16852-Z6C-842

TUBE B, FUEL (FKM)

Note: Use from Engine SN 1004576 to 1035449.

$

$

Not available

5

Honda 16882-ZJ1-840

TUBE, DIAPHRAGM (Honda Code 6224570).

$6.99

$

In Stock, only 1 left!

0

6

Honda 16910-ZE8-015

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 4287553).

$15.99

$

In Stock, only 4 left!

0

7

Honda 19111-MF5-000

GROMMET, RESERVE TANK (Honda Code 1400134).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

9

Honda 90617-SA0-003

CLIP, WIRE HARNESS (Honda Code 4210464).

$5.99

$

Usually ships in 3-6 days

0

10

Honda 91601-ZJ1-840

GROMMET, PUMP STAY (Honda Code 6227185).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 93894-06016-00

SCREW-WASHER (6X16) (Honda Code 6227201).

$0.99

$

Usually ships in 3-6 days

0

12

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1004575.

$2.49

$

In Stock, Qty 20+

0

13

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Engine SN 1004575.

$2.49

$

In Stock, Qty 16

0

13

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use from Engine SN 1004576.

$2.49

$

In Stock, Qty 16

0

14

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use from Engine SN 1003297.

$2.49

$

In Stock, Qty 20+

0

14

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9) (Honda Code 0053447).

Note: Use up to Engine SN 1003296.

$1.99

$

In Stock, Qty 20+

0

15

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

Note: Use up to Engine SN 1004575.

$2.49

$

In Stock, Qty 5

0

16

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X150)

$21.99

$

Usually ships in 3-6 days

0

17

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1004576.

$2.99

$

In Stock, only 4 left!

0

18

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 1004576.

$3.49

$

Usually ships in 3-6 days

0

19

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

Note: Use from Engine SN 1004576.

$3.49

$

In Stock, Qty 8

0

20

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 1035450.

$3.49

$

Usually ships in 3-6 days

0

20

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

Note: Use from Engine SN 1004576 to 1035449.

$3.49

$

In Stock, Qty 7

0

21

Honda 16855-Z6C-842

TUBE B, FUEL (FKM)

Note: Use from Engine SN 1035450.

$33.99

$

In Stock, only 1 left!

0
