GX670 U BDW (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) FAN COVER Parts Diagram

Engine, Made in Japan

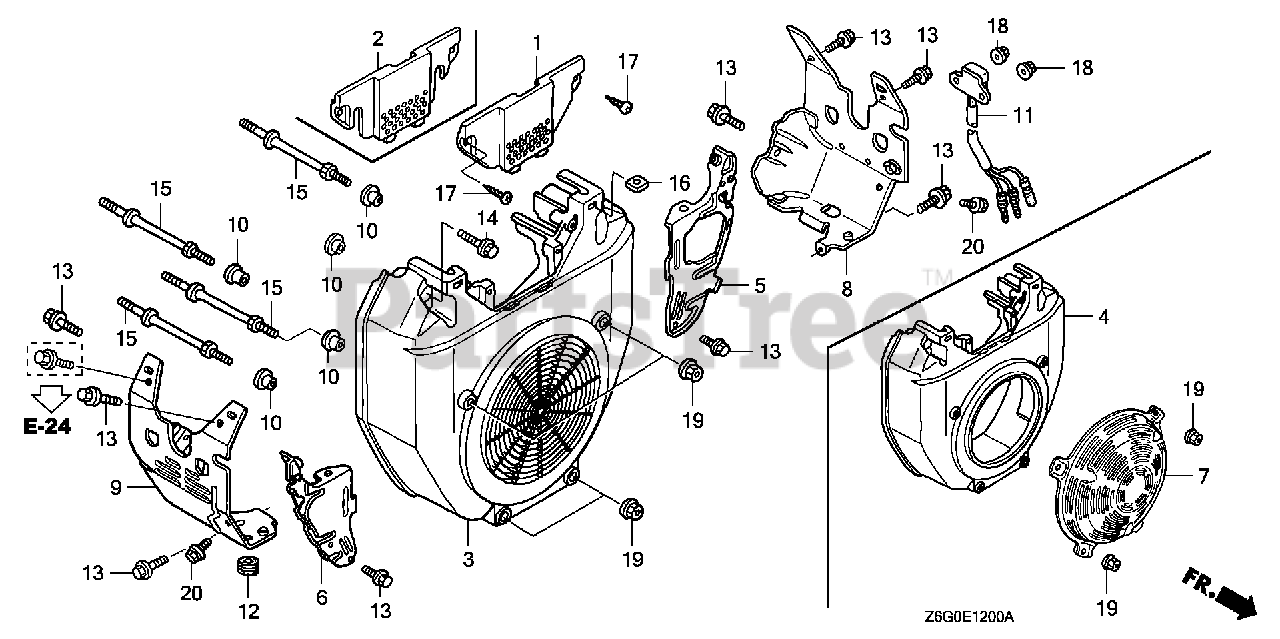

FAN COVER Parts Diagram

  • Title

1

Honda 16715-ZJ1-840

COVER, FUEL PUMP (Honda Code 6224521).

$20.99

$

In Stock, only 1 left!

0

3

Honda 19611-ZJ1-840ZA

COVER, FAN *NH1* (BLACK) (Honda Code 6225205).

$130.99

$

Usually ships in 3-6 days

0

3

Honda 19611-ZJ1-840ZC

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED) (Honda Code 7377104).

$118.99

$

Usually ships in 3-6 days

0

5

Honda 19612-ZJ1-841

SEE PART DETAILS - PRI; PLATE, SIDE

$21.99

$

Usually ships in 3-6 days

0

6

Honda 19614-ZJ1-841

SEE PART DETAILS - PRI; PLATE, SIDE (R. SIDE)

$21.99

$

Usually ships in 3-6 days

0

8

Honda 19631-ZJ1-840

SHROUD, R. (Honda Code 6225247).

$

$

Not available

9

Honda 19632-ZN1-010

SHROUD (R. SIDE)

$70.99

$

Usually ships in 3-6 days

0

10

Honda 33713-GC2-000

COLLAR B, TAILLIGHT (Honda Code 1447911).

$4.99

$

In Stock, Qty 13

0

12

Honda 80101-310-000

RUBBER, RR. FENDER CUSHION

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, only 2 left!

0

15

Honda 90042-ZJ1-840

BOLT, STUD (6X71) (Honda Code 6227003).

$9.99

$

Usually ships in 3-6 days

0

16

Honda 90313-ZJ1-840

NUT, SQUARE (5MM) (Honda Code 6227045).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 93913-25580

SCREW, TAPPING (5X20) (Honda Code 5802582).

$1.49

$

In Stock, Qty 7

0

19

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

20

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

In Stock, Qty 20+

0
