GX670 U BDW (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) CARBURETOR Parts Diagram

Engine, Made in Japan

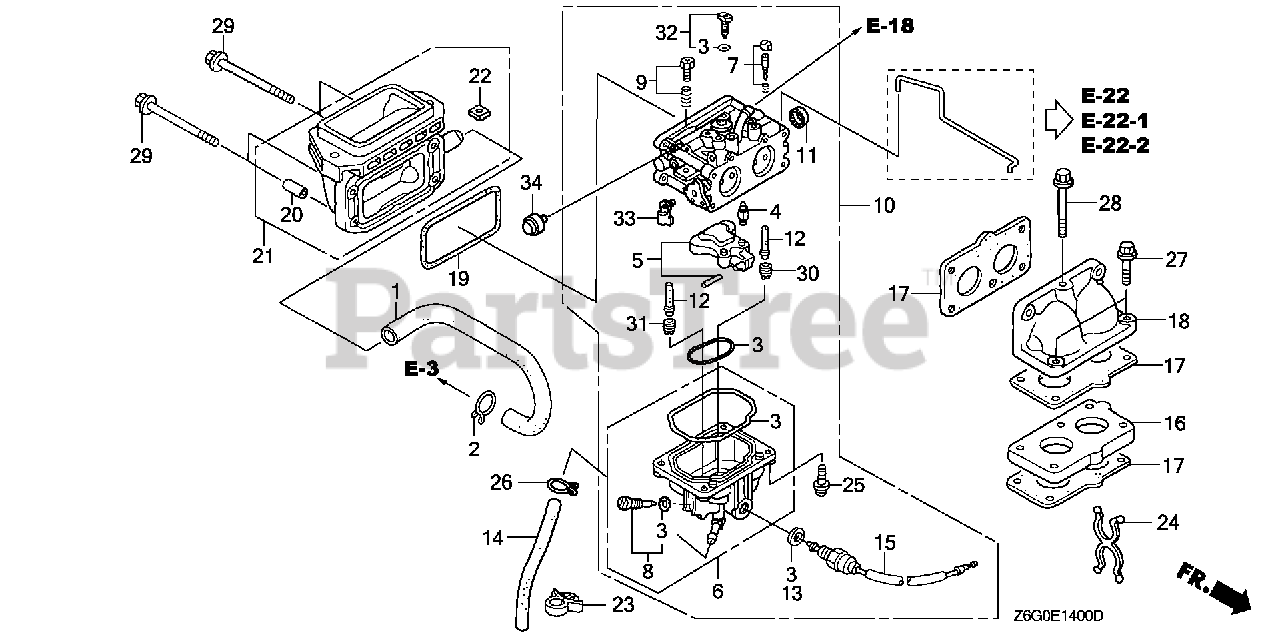

CARBURETOR Parts Diagram

  • Title

1

Honda 12357-ZJ1-840

TUBE, BREATHER

$13.99

$

In Stock, only 1 left!

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE (Honda Code 0501353).

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZN1-801

GASKET SET (ADVENTURE GREEN) (CARBURETOR NO.)
(Superseded to 16010-ZN1-802)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 16011-ZN1-801

VALVE SET, FLOAT (ADVENTURE GREEN) (CARBURETOR NO.)

$33.99

$

Usually ships in 3-6 days

0

5

Honda 16013-ZN1-801

FLOAT SET (ADVENTURE GREEN) (CARBURETOR NO.)

$27.99

$

Usually ships in 3-6 days

0

6

Honda 16015-ZN1-801

CHAMBER SET, FLOAT (ADVENTURE GREEN) (CARBURETOR NO.)

$100.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZN1-801

SCREW SET, PILOT (ADVENTURE GREEN) (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZN1-801

SCREW SET, THROTTLE (ADVENTURE GREEN) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZN1-802

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BK01A B)

$325.99

$

Usually ships in 3-6 days

0

11

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZN1-801

NOZZLE, MAIN (CARBURETOR NO.)

$21.99

$

Usually ships in 3-6 days

0

13

Honda 16178-ZN1-801

WASHER, PLAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 16198-ZJ1-840

TUBE, DRAIN (Honda Code 6224273).

$5.49

$

In Stock, only 2 left!

0

15

Honda 16200-ZN1-801

VALVE ASSY., SOLENOID (KEIHIN) (ADVENTURE GREEN) (CARBURETOR NO.)

$62.99

$

In Stock, only 1 left!

0

16

Honda 16211-ZN1-000

INSULATOR, CARBURETOR

$13.99

$

In Stock, only 1 left!

0

17

Honda 16221-ZN1-000

GASKET, CARBURETOR

$5.49

$

Usually ships in 3-6 days

0

18

Honda 17103-ZN1-010

ELBOW, MANIFOLD

$114.99

$

Usually ships in 3-6 days

0

19

Honda 17228-ZN1-000

GASKET, AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

20

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER (Honda Code 6224752).

$2.49

$

In Stock, only 3 left!

0

21

Honda 17410-ZN1-000

ELBOW, AIR CLEANER

$56.99

$

Usually ships in 3-6 days

0

22

Honda 90314-ZJ1-840

NUT, INSERT (6MM)

$3.49

$

In Stock, only 1 left!

0

23

Honda 90682-959-661

CLIP B, CABLE (Honda Code 1064021).

$3.99

$

In Stock, only 2 left!

0

24

Honda 91402-ZJ1-841

CLIP, PURSE LOCK (Honda Code 6227177).

$3.49

$

Usually ships in 3-6 days

0

25

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

26

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 10

0

27

Honda 95701-06030-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X30) (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0

28

Honda 95701-06065-00

BOLT, FLANGE (6X65)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 95801-06090-08

BOLT, FLANGE (6X90)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) Use from Engine SN BE81B C.

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

30

Honda 99101-ZH8-0950

SEE PART DETAILS - PRI; JET, MAIN (#95) (Honda Code 6062665).

Note: (Optional).

$7.49

$

In Stock, Qty 11

0

30

Honda 99101-ZH8-1000

JET, MAIN (#100) Use from Engine SN BE87A A to BE87A A.

$7.49

$

In Stock, Qty 9

0

31

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) Use from Engine SN BE81B C.

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

31

Honda 99101-ZH8-0950

SEE PART DETAILS - PRI; JET, MAIN (#95) (Honda Code 6062665).

Note: (Optional).

$7.49

$

In Stock, Qty 11

0

31

Honda 99101-ZH8-1000

JET, MAIN (#100) Use from Engine SN BE87A A to BE87A A.

$7.49

$

In Stock, Qty 9

0

32

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (ADVENTURE GREEN) (CARBURETOR NO.)

$22.99

$

In Stock, only 2 left!

0

33

Honda 16126-ZJ1-841

ARM, THROTTLE LINKAGE (CARBURETOR NO.)

$8.99

$

Usually ships in 3-6 days

0

34

Honda 16140-ZN1-004

FILTER ASSY., AIR VENT

Note: (Optional).Use from Engine SN 1018657.

$5.99

$

Usually ships in 3-6 days

0
