GX670 TXF2 (GCAM) - Honda Engine, Made in Japan (SN: GCAM-1000001 - GCAM-1049999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

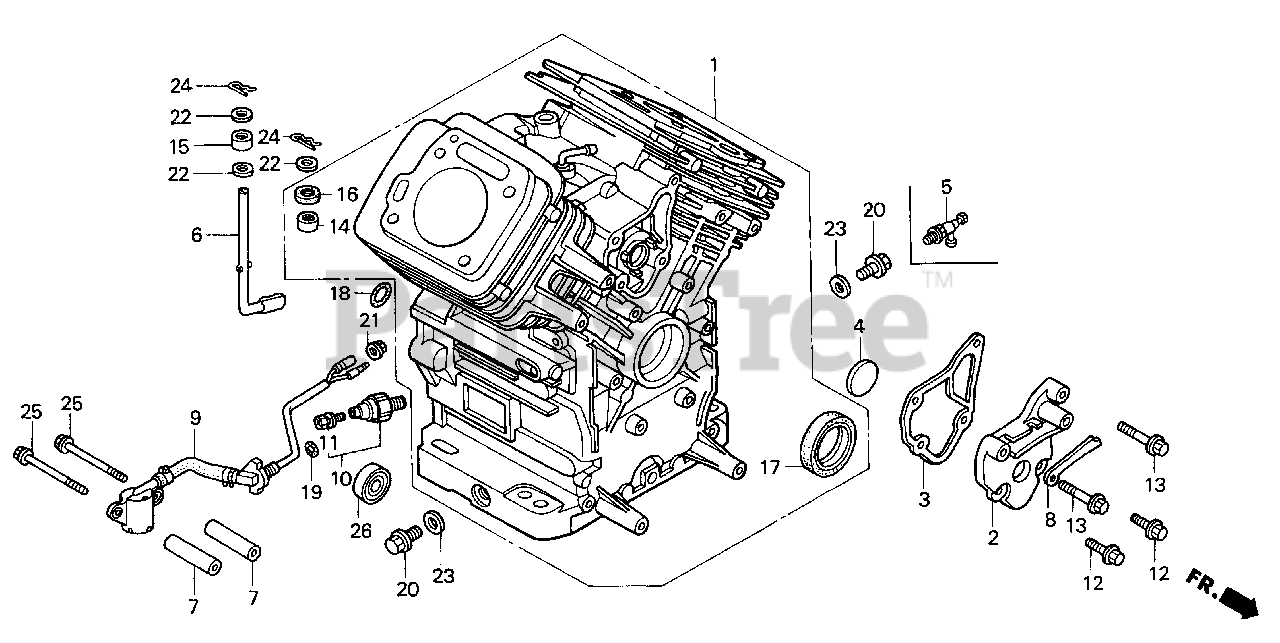

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZN1-800

CYLINDER ASSY. (OIL ALERT)

Note: Use up to Engine SN 1005759. (Honda Code 6247498).

$

$

Not available

1

Honda 12000-ZN1-801

CYLINDER ASSY.

Note: Use from Engine SN 1005760. (Honda Code 6685556).

$

$

Not available

2

Honda 12356-ZJ1-000

COVER, BREATHER

Note: (Honda Code 4208955).

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

GASKET, BREATHER COVER

Note: (Honda Code 4265278).

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

VALVE, BREATHER

Note: (Honda Code 2061620).

$3.99

$

In Stock, Qty 5

0

5

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5)

Note: (Optional). (Honda Code 4506622).

$29.99

$

Usually ships in 3-6 days

0

6

Honda 16541-ZJ1-840

SHAFT, GOVERNOR ARM

Note: (Honda Code 6224406).

$44.99

$

Usually ships in 3-6 days

0

7

Honda 25523-VD6-010

COLLAR, FILTER SETTING

Note: (Honda Code 3340197).

$8.99

$

Usually ships in 3-6 days

0

8

Honda 31511-ZJ1-000

CLAMP, WIRE

Note: (Honda Code 4210217).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 35480-ZJ1-841

SWITCH ASSY., OIL LEVEL
(Superseded to 35480-ZJ1-842)

Note: (Honda Code 6225775).

$61.99

$

Usually ships in 3-6 days

0

12

Honda 90029-888-000

BOLT, FLANGE (6X16)

Note: (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

Note: (Honda Code 2092971).

$3.99

$

In Stock, only 2 left!

0

14

Honda 91001-ZJ1-841

BEARING, NEEDLE (8X12.7X11.1)

Note: (Honda Code 6227102).

$8.99

$

Usually ships in 3-6 days

0

15

Honda 91002-ZJ1-841

BEARING, NEEDLE (8X12X10)

Note: (Honda Code 6227110).

$11.99

$

Usually ships in 3-6 days

0

16

Honda 91201-ZE9-003

OIL SEAL (8X14X5)

Note: (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

17

Honda 91201-ZJ1-841

OIL SEAL (38X58X9)

Note: (Honda Code 6227151).

$11.99

$

In Stock, only 1 left!

0

18

Honda 91302-MB6-830

O-RING (13X3.0)

Note: (Honda Code 2545101).

$2.49

$

In Stock, only 1 left!

0

19

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

20

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

Note: (Honda Code 0171777).

$5.99

$

Usually ships in 3-6 days

0

21

Honda 94050-10000

NUT, FLANGE (10MM)

Note: (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

22

Honda 94102-08800

WASHER, PLAIN (8MM)

Note: (Honda Code 0562215).

$1.49

$

In Stock, Qty 9

0

23

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

Note: (Honda Code 0171876).

$0.99

$

In Stock, Qty 20+

0

24

Honda 94251-08000

PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

25

Honda 95701-06075-09

BOLT, FLANGE (6X75)

Note: (Honda Code 4210548).

$2.49

$

Usually ships in 3-6 days

0

26

Honda 96140-60030-10

BEARING, RADIAL BALL (6003)

Note: (Honda Code 4210571).

$19.99

$

Usually ships in 3-6 days

0
