GX670 TDW (GCAM) - Honda Engine, Made in Japan (SN: GCAM-1000001 - GCAM-1049999) CONTROL (1) Parts Diagram

Engine, Made in Japan

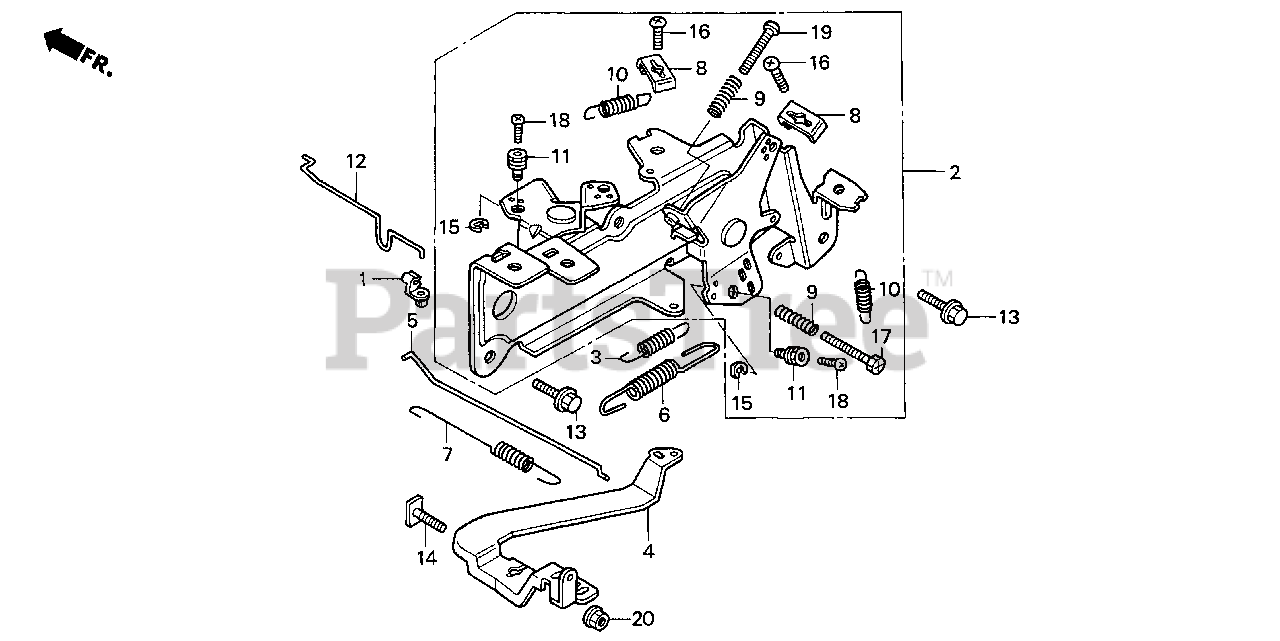

CONTROL (1) Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD

Note: (Honda Code 6224315).

$1.49

$

In Stock, only 3 left!

0

2

Honda 16500-ZJ1-861

CONTROL ASSY.

Note: (Honda Code 6403349).

$110.99

$

Usually ships in 3-6 days

0

3

Honda 16534-ZN1-000

SPRING, STARTER
(Superseded to 16534-ZN1-010)

Note: (Honda Code 6247878).

$2.99

$

In Stock, only 1 left!

0

4

Honda 16551-ZJ1-840

ARM, GOVERNOR

Note: (Honda Code 6224414).

$15.99

$

Usually ships in 3-6 days

0

5

Honda 16555-ZN1-000

ROD, GOVERNOR

Note: (Honda Code 6247886).

$5.99

$

Usually ships in 3-6 days

0

6

Honda 16561-ZN1-000

SPRING, GOVERNOR

Note: (Honda Code 6247894).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 16562-ZN1-000

SPRING, THROTTLE RETURN

Note: (Honda Code 6247910).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 16576-891-000

HOLDER, CABLE

Note: (Honda Code 0800466).

$4.99

$

In Stock, only 1 left!

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 8

0

10

Honda 16592-ZJ1-000

SPRING, CABLE RETURN

Note: (Honda Code 4209581).

$2.49

$

In Stock, only 2 left!

0

11

Honda 16594-883-010

HOLDER, WIRE

Note: Use up to Engine SN 1001764. (Honda Code 2686558).

$8.99

$

In Stock, only 3 left!

0

11

Honda 16617-ZJ1-840

HOLDER, CABLE

Note: Use from Engine SN 1001765. (Honda Code 6529143).

$5.99

$

Usually ships in 3-6 days

0

12

Honda 16611-ZN1-000

ROD, CHOKE CONTROL

Note: (Honda Code 6247936).

$6.99

$

In Stock, only 1 left!

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

14

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

Note: (Honda Code 2560852).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90605-230-000

CIRCLIP (5MM)

Note: (Honda Code 0138768).

$3.99

$

In Stock, only 3 left!

0

16

Honda 92301-05016-0A

BOLT, SLOT (5X16)

Note: (Honda Code 3509742).

$1.99

$

Usually ships in 3-6 days

0

17

Honda 92301-05025-0A

BOLT, SLOT (5X25)

Note: (Honda Code 6227193).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 92301-04006-0H

BOLT, RECESSED (4X6)

Note: (Honda Code 6403372).

$0.99

$

In Stock, Qty 6

0

19

Honda 93500-05025-0A

SCREW, PAN (5X25)

Note: (Honda Code 0145565).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
