GX670 R TXF7 (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

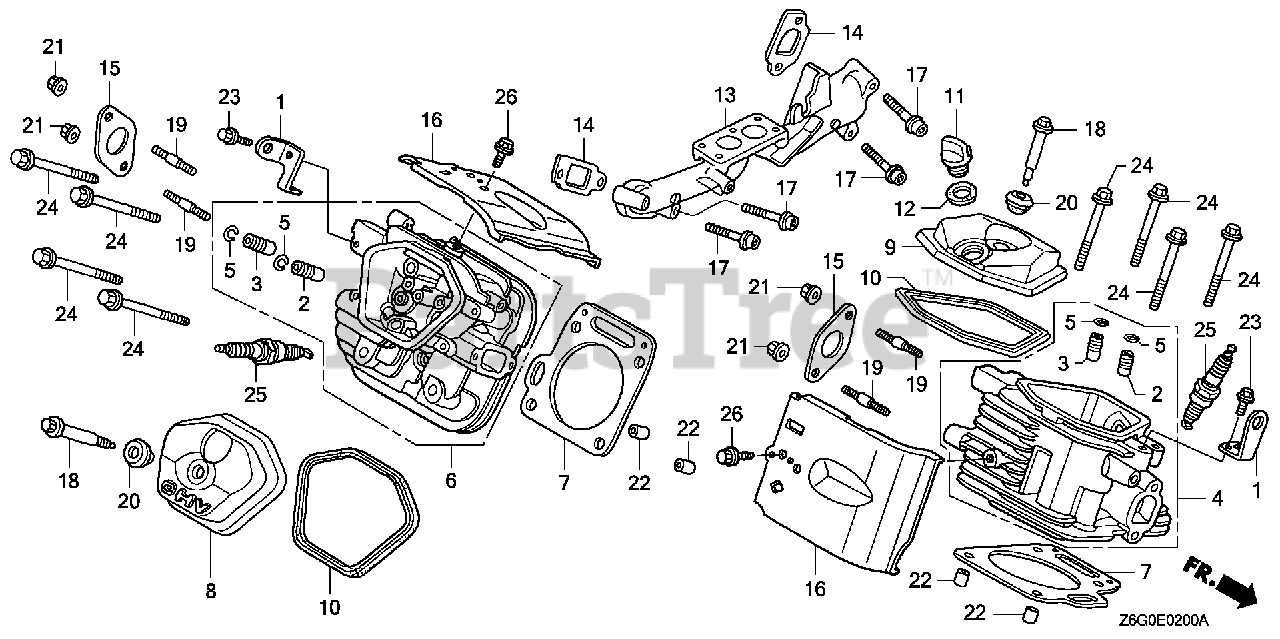

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 11911-ZJ1-840

HANGER, ENGINE

$3.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

GUIDE, VALVE (OVER SIZE)

$

$

Not available

3

Honda 12205-ZJ1-405

GUIDE, EX. VALVE (OVER SIZE)

$13.99

$

Usually ships in 3-6 days

0

4

Honda 12210-ZJ1-406

CYLINDER HEAD (#1)

$

$

Not available

5

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

6

Honda 12220-ZJ1-405

CYLINDER HEAD (#2)

$364.99

$

Usually ships in 3-6 days

0

7

Honda 12251-ZJ1-841

GASKET, CYLINDER HEAD

$20.99

$

Usually ships in 3-6 days

0

8

Honda 12311-ZJ1-840

COVER, HEAD

$38.99

$

In Stock, only 1 left!

0

9

Honda 12314-ZJ1-840

COVER, HEAD FILLER

$43.99

$

Usually ships in 3-6 days

0

10

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$11.99

$

In Stock, only 4 left!

0

11

Honda 15611-MB0-000

CAP, OIL FILLER

$12.99

$

In Stock, Qty 5

0

12

Honda 15625-ZJ1-840

GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

13

Honda 17101-ZN1-000

MANIFOLD, IN.

$275.99

$

Usually ships in 3-6 days

0

14

Honda 17151-ZJ1-841

GASKET, IN. MANIFOLD

$5.49

$

Usually ships in 3-6 days

0

15

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$4.99

$

In Stock, Qty 20+

0

15

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.99

$

In Stock, Qty 20+

0

16

Honda 19682-ZJ1-840

SHROUD, HEAD

$12.99

$

Usually ships in 3-6 days

0

17

Honda 90011-ZJ1-841

BOLT, SOCKET (8X45)

$4.99

$

In Stock, only 2 left!

0

18

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

19

Honda 90018-ZJ1-840

BOLT, STUD (8X22)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.49

$

In Stock, Qty 6

0

21

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 11

0

22

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

24

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 1 left!

0

25

Honda 98079-52876

SPARK PLUG (BPR2ES) (NGK)

Note: (Optional).

$3.49

$

In Stock, only 1 left!

0

25

Honda 98079-5485V

SPARK PLUG (J14CR-U) (DENSO)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

25

Honda 98079-5487V

SPARK PLUG (ZGR4A)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

25

Honda 98079-5585V

SPARK PLUG (J16CR-U) (DENSO)

$10.99

$

Usually ships in 3-6 days

0

25

Honda 98079-5587V

SPARK PLUG (ZGR5A)

$3.49

$

In Stock, Qty 6

0

26

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0
