GX670 R TXA2 (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) FUEL PUMP Parts Diagram

Engine, Made in Japan

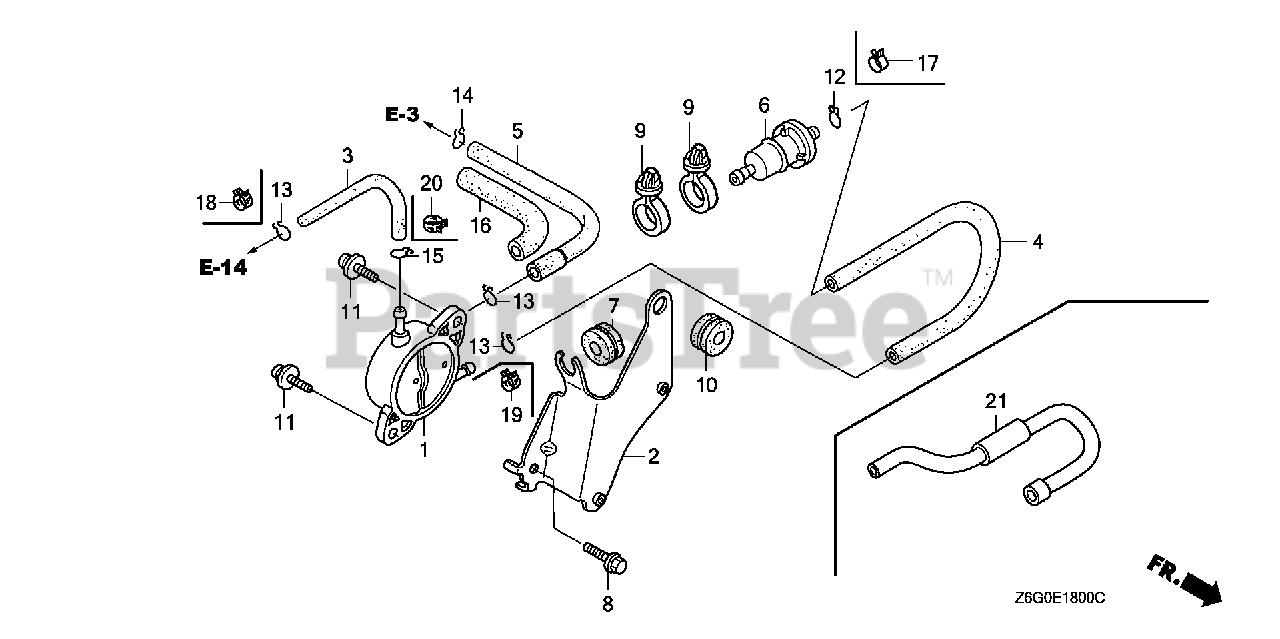

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL (MSDS)

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16711-ZJ1-840

STAY, FUEL PUMP

$15.99

$

Usually ships in 3-6 days

0

3

Honda 16851-Z6G-013

TUBE, FUEL (FKM)
(Superseded to 16851-Z6G-023)

$27.99

$

Usually ships in 3-6 days

0

5

Honda 16882-ZJ1-840

TUBE, DIAPHRAGM

$6.49

$

In Stock, only 1 left!

0

6

Honda 16910-ZE8-015

STRAINER, FUEL

$14.99

$

In Stock, Qty 8

0

7

Honda 19111-MF5-000

GROMMET, RESERVE TANK

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

9

Honda 90617-SA0-003

CLIP, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

10

Honda 91601-ZJ1-840

GROMMET, PUMP STAY

$4.49

$

Usually ships in 3-6 days

0

11

Honda 93894-06016-00

SCREW-WASHER (6X16)

$0.99

$

In Stock, only 4 left!

0

13

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X150)

$21.99

$

Usually ships in 3-6 days

0

17

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 6

0

18

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

19

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, Qty 8

0

20

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

21

Honda 16855-Z6C-852

TUBE B, FUEL (FKM)

$30.99

$

Usually ships in 3-6 days

0
