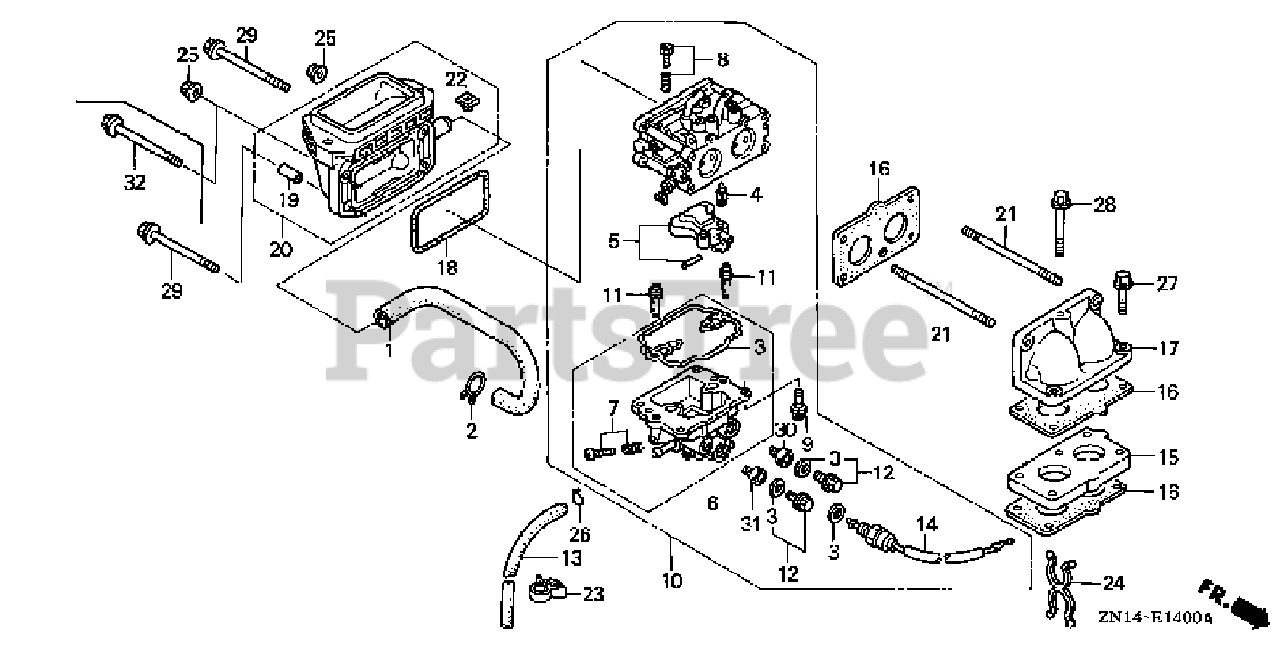

GX670 BDW (GCAM) - Honda Engine, Made in Japan (SN: GCAM-1000001 - GCAM-1049999) CARBURETOR Parts Diagram

Engine, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 12357-ZJ1-840

TUBE, BREATHER

Note: (Honda Code 6223903).

$13.99

$

In Stock, only 1 left!

0

2

Honda 15772-551-000

CLIP, BREATHER TUBE

Note: (Honda Code 0501353).

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZN1-003

GASKET SET

Note: (Honda Code 6247696).

$

$

Not available

4

Honda 16011-ZN1-003

VALVE, FLOAT

Note: (Honda Code 6247704).

$

$

Not available

5

Honda 16013-ZN1-003

FLOAT SET

Note: (Honda Code 6247712).

$

$

Not available

6

Honda 16015-ZN1-003

CHAMBER SET, FLOAT

Note: (Honda Code 6247720).

$107.99

$

Usually ships in 3-6 days

0

7

Honda 16024-ZN1-003

SCREW SET, DRAIN

Note: (Honda Code 6247738).

$9.99

$

Usually ships in 3-6 days

0

8

Honda 16028-ZN1-003

SCREW SET

Note: (Honda Code 6247746).

$

$

Not available

9

Honda 16081-ZN1-003

SCREW-WASHER

Note: (Honda Code 6247753).

$

$

Not available

10

Honda 16100-ZN1-003

CARBURETOR ASSY. (TB01A A)

Note: (Honda Code 6247779).

$

$

Currently unavailable

10

Honda 16100-ZN1-801

CARBURETOR ASSY. (TB01A A)

Note: (Honda Code 7052228).

$

$

Not available

11

Honda 16150-ZN1-003

JET, SLOW (#54)

Note: (Honda Code 6247795).

$

$

Not available

12

Honda 16181-ZN1-003

PLUG SET

Note: (Honda Code 6247811).

$

$

Not available

13

Honda 16198-ZJ1-840

TUBE, DRAIN

Note: (Honda Code 6224273).

$5.49

$

In Stock, only 2 left!

0

14

Honda 16200-ZN1-003

VALVE ASSY., SOLENOID

Note: (Honda Code 6247837).

$

$

Not available

15

Honda 16211-ZN1-000

INSULATOR, CARBURETOR

Note: (Honda Code 6247845).

$13.99

$

In Stock, only 1 left!

0

16

Honda 16221-ZN1-000

GASKET, CARBURETOR

Note: (Honda Code 6247852).

$5.49

$

Usually ships in 3-6 days

0

17

Honda 17103-ZN1-000

ELBOW, MANIFOLD

Note: Use up to Engine SN 1002260. (Honda Code 6247985).

$

$

Currently unavailable

17

Honda 17103-ZN1-010

ELBOW, MANIFOLD

Note: Use from Engine SN 1002261. (Honda Code 6439582).

$114.99

$

Usually ships in 3-6 days

0

18

Honda 17228-ZN1-000

GASKET, AIR CLEANR

Note: (Honda Code 6248025).

$14.99

$

Usually ships in 3-6 days

0

19

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

Note: (Honda Code 6224752).

$2.49

$

In Stock, only 3 left!

0

20

Honda 17410-ZN1-000

ELBOW, AIR CLEANER

Note: (Honda Code 6248041).

$56.99

$

Usually ships in 3-6 days

0

21

Honda 90048-ZC3-000

BOLT, STUD (6X85)

Note: Use up to Engine SN 1002260. (Honda Code 2734846).

$4.49

$

In Stock, only 3 left!

0

22

Honda 90314-ZJ1-840

NUT, INSERT (6MM)

Note: (Honda Code 6227052).

$3.49

$

In Stock, only 1 left!

0

23

Honda 90682-959-661

CLIP B, CABLE

Note: (Honda Code 1064021).

$3.99

$

In Stock, only 2 left!

0

24

Honda 91402-ZJ1-841

CLIP, PURSE LOCK

Note: (Honda Code 6227177).

$3.49

$

Usually ships in 3-6 days

0

25

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use up to Engine SN 1002260. (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

26

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 10

0

27

Honda 95701-06030-00

BOLT, FLANGE (6X30)

Note: (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0

28

Honda 95701-06065-00

BOLT, FLANGE (6X65)

Note: (Honda Code 2552545).

$1.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06090-00

BOLT, FLANGE (6X90)

Note: Use up to Engine SN 1002260. (Honda Code 2533842).

$2.49

$

Usually ships in 3-6 days

0

29

Honda 95801-06090-08

BOLT, FLANGE (6X90)

Note: Use from Engine SN 1002261. (Honda Code 6439889).

$1.99

$

Usually ships in 3-6 days

0

30

Honda 99101-ZN1-0920

JET, MAIN (#92)

Note: (Optional). (Honda Code 6249403).

$19.99

$

Usually ships in 3-6 days

0

30

Honda 99101-ZN1-0960

JET, MAIN (#96)

Note: (Optional). (Honda Code 6249429).

$19.99

$

Usually ships in 3-6 days

0

30

Honda 99101-ZN1-1020

JET, MAIN (#102)

Note: (Honda Code 6249452).

$19.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZN1-0940

JET, MAIN (#94)

Note: (Optional). (Honda Code 6249411).

$19.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZN1-0980

JET, MAIN (#98)

Note: (Optional). (Honda Code 6249437).

$19.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZN1-1000

JET, MAIN (#100)

Note: (Honda Code 6249445).

$19.99

$

Usually ships in 3-6 days

0

32

Honda 95801-06090-08

BOLT, FLANGE (6X90)

Note: Use from Engine SN 1002261. (Honda Code 6439889).

$1.99

$

Usually ships in 3-6 days

0
