GX640 SD3 (GAAD) - Honda Engine, Made in Japan (SN: GAAD-1000001 - GAAD-1029999) COOLING FAN PULLEY Parts Diagram

Engine, Made in Japan

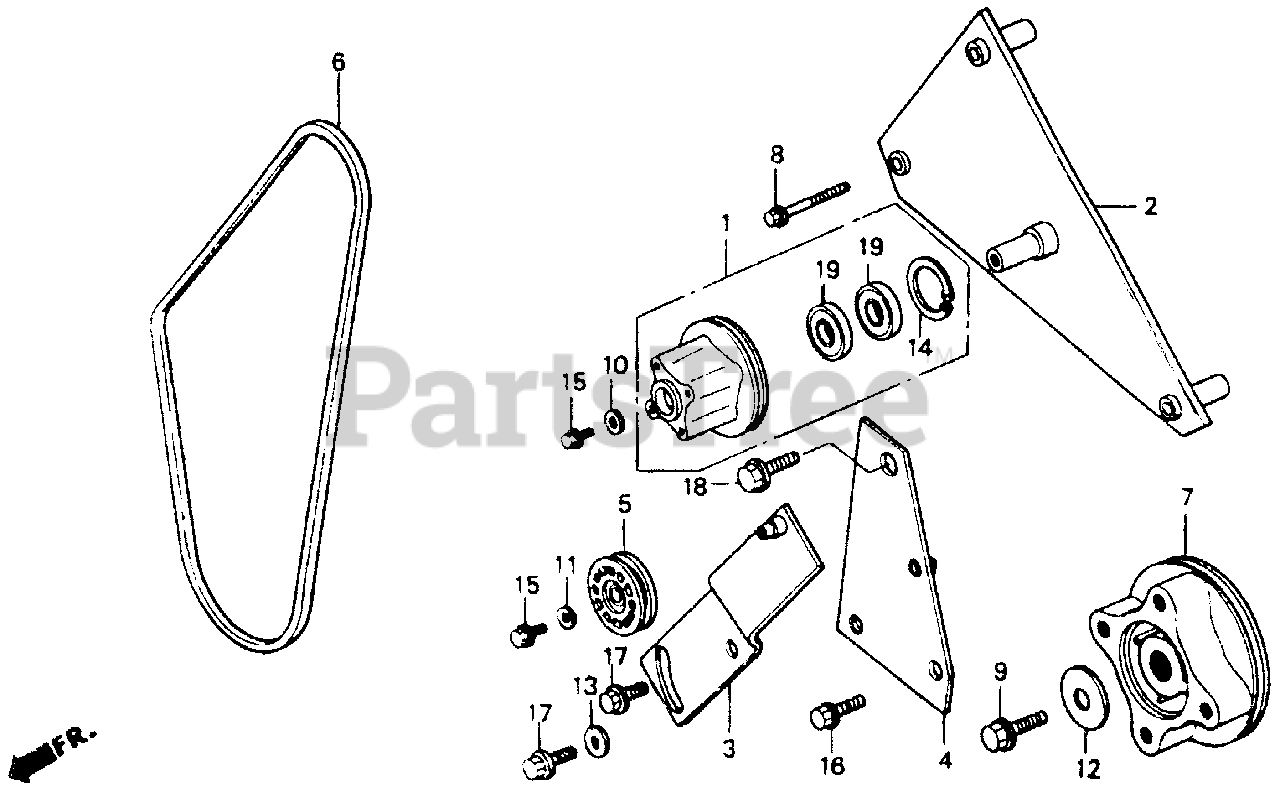

COOLING FAN PULLEY Parts Diagram

  • Title

1

Honda 19030-769-000

PULLEY ASSY., COOLING FAN (Honda Code 3690443).

$303.99

$

Usually ships in 3-6 days

0

2

Honda 19043-769-010

SEE PART DETAILS - PRI; BRACKET, COOLING FAN (Honda Code 4547378).

$157.99

$

Usually ships in 3-6 days

0

3

Honda 19091-769-000

ARM, TENSION (Honda Code 3690492).

$69.99

$

Usually ships in 3-6 days

0

4

Honda 19093-769-000

PLATE, TENSIONER ARM (Honda Code 3690500).

$36.99

$

Usually ships in 3-6 days

0

5

Honda 19095-769-003

PULLEY, TENSIONER (65MM) (Honda Code 3690518).

$62.99

$

Usually ships in 3-6 days

0

6

Honda 31603-ZG5-L01

BELT, ALTERNATOR (BANDO) (Honda Code 3639259).

$29.99

$

Usually ships in 3-6 days

0

7

Honda 40417-769-010

SEE PART DETAILS - PRI; JOINT, PROPELLER SHAFT (Honda Code 4547568).

$500.99

$

Usually ships in 3-6 days

0

8

Honda 90014-888-000

BOLT, FLANGE (6X50) (Honda Code 0671537).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90038-ME9-000

BOLT, SPECIAL (10MM) (Honda Code 1521483).

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90417-041-000

WASHER, GEARSHIFT DRUM SIDE (Honda Code 0124057).

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90453-752-830

WASHER (6MM) (Honda Code 2890531).

$5.99

$

In Stock, only 1 left!

0

12

Honda 90471-VB4-000

WASHER (10.5X40X4) (Honda Code 3692332).

$14.99

$

Usually ships in 3-6 days

0

13

Honda 94101-10800

WASHER, PLAIN (10MM) (Honda Code 0562199).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 94521-32000

CIRCLIP (INNER) (32MM) (Honda Code 2737716).

$

$

Not available

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, Qty 9

0

16

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477).

$2.49

$

Usually ships in 3-6 days

0

17

Honda 95701-10020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X20) (Honda Code 2619153).

$3.49

$

In Stock, only 2 left!

0

18

Honda 95701-10020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X20) (Honda Code 2619153).

Note: Use from Engine SN 1015821.

$3.49

$

In Stock, only 2 left!

0

18

Honda 95701-10025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25) (Honda Code 2514776).

Note: Use up to Engine SN 1015820.

$3.49

$

Usually ships in 3-6 days

0

19

Honda 96150-62010-10

BEARING, RADIAL BALL (6201UU) (Honda Code 1325299).

$17.99

$

Usually ships in 3-6 days

0
